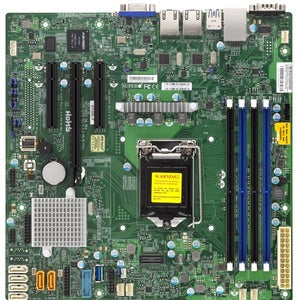

Supermicro X11SSL Server Motherboard - Intel C236 Chipset (LGA-1151) Micro ATX

Experience robust, enterprise-grade performance in a compact, versatile package with the Supermicro X11SSL server motherboard. Designed for single-processor systems, this board combines the reliability of the Intel C236 chipset with the flexibility of Socket H4 (LGA-1151) to support the Xeon E3-1200 v5 family and 6th Gen Intel Core processors. Ideal for small servers, file/storage solutions, virtualization hosts, and demanding workstations, the X11SSL delivers dependable performance, scalable memory, and streamlined management in a compact Micro ATX form factor.

• Single-processor Socket H4 (LGA-1151) design: Built to handle Xeon E3-1200 v5 family CPUs and 6th Gen Intel Core processors, the X11SSL delivers strong compute performance, efficient power use, and upgrade paths that accommodate growing workloads. This design is ideal for compact data centers, home labs, and office deployments where space and energy efficiency matter without compromising reliability or scalability.
• Intel C236 chipset foundation: The motherboard rests on the robust Intel C236 platform, renowned for stable I/O, memory reliability, and solid platform management. The chipset optimizes data throughput, supports essential features for server-grade environments, and works in concert with the Xeon E3-1200 v5 family to deliver consistent performance under load.
• Memory flexibility up to 64GB with ECC support: The X11SSL is engineered to protect critical data with ECC memory options while delivering ample capacity for virtualization, databases, and multi-application workloads. Up to 64GB of system memory provides headroom for multiple VMs, containers, or heavy multitasking, ensuring smooth operation even during peak usage.
• Compact Micro ATX form factor with strong I/O: The Micro ATX footprint makes it easy to deploy in a wide range of chassis while retaining essential expansion capabilities. Expect a thoughtful balance of PCIe expansion, USB, SATA, and management interfaces that enable you to tailor the board to your specific server, storage, or workstation needs.
• Remote management and professional-grade reliability: IPMI 2.0 with dedicated management LAN support enables out-of-band monitoring, remote KVM, and lifecycle control. This feature set is invaluable for data centers and remote offices, allowing administrators to diagnose, reboot, or configure systems without being physically on site.

Technical Details of Supermicro X11SSL Server Motherboard

• CPU Socket: Socket H4 (LGA-1151) — supports a single Intel Xeon E3-1200 v5 family processor or compatible 6th Gen Core CPUs.
• Chipset: Intel C236 — provides robust I/O, memory reliability, and enterprise-grade connectivity.
• Form Factor: Micro ATX — compact footprint suitable for a wide range of chassis while preserving expandability.
• Memory: Up to 64GB of system memory with ECC support for data integrity and system reliability in server and workstation workloads.
• Expansion and I/O: PCIe slots and essential USB/SATA interfaces to support storage, peripherals, and accelerators; exact configurations vary by SKU.
• Networking and Management: IPMI 2.0 with dedicated management LAN for remote administration, monitoring, and remote assistance; standard LAN connectivity options also available for high-availability networking.

How to install Supermicro X11SSL

• Prepare your chassis and power supply: Ensure you have a compatible micro‑ATX chassis, a reliable power supply, and adequate cooling to handle the chosen processor and workloads.
• Install the CPU into the LGA-1151 socket: Lift the socket lever, align the processor with the socket notches, seat it firmly, and secure the lever in place.
• Apply thermal solution and mount the heatsink: Attach the CPU cooler with thermal paste (if required by the cooler) and secure it according to the manufacturer’s guidelines, ensuring good contact for effective cooling.
• Install memory modules: Insert ECC (if chosen) and non-ECC DIMMs into the appropriate memory slots, following the motherboard’s memory population rules to achieve the desired capacity and performance.
• Mount the motherboard and connect power: Install the board in the chassis with the appropriate standoffs, connect the 24-pin ATX and CPU power connectors, and attach the required chassis cables for power and front-panel indicators.
• Connect storage and expansion: Attach SATA data/power cables to drives and connect any PCIe add-ons or NVMe adapters as needed to match your storage or acceleration requirements.
• Configure BIOS/UEFI: Power up and enter the BIOS/UEFI to set memory timings, enable XMP profiles if applicable, configure boot order, and verify CPU and memory are detected correctly.
• Enable management features: If you plan to use IPMI, connect the dedicated management LAN and configure IPMI settings, sensors, and user accounts as part of initial setup.
• Install operating system and drivers: Install your preferred server OS or workstation OS, then install chipset drivers, management utilities, and any storage controller drivers as needed for optimal performance.
• Run validation and updates: Update BIOS to the latest release, run hardware diagnostics, and ensure all components operate within expected parameters before going into production.

Frequently asked questions

• Q: What CPUs are supported by the Supermicro X11SSL motherboard? A: It supports a single Intel Xeon E3-1200 v5 family processor or compatible 6th Gen Intel Core CPUs on the Socket H4 (LGA-1151).
• Q: Does this board support ECC memory? A: Yes. The X11SSL supports ECC memory, enabling improved data integrity for server workloads while delivering up to 64GB of memory capacity.
• Q: What is the form factor? A: The motherboard adopts a Micro ATX form factor, offering a compact footprint with solid expansion options suitable for smaller server enclosures and workstations.
• Q: Does it include remote management capabilities? A: Yes. It features IPMI 2.0 with a dedicated management LAN for out-of-band monitoring, remote administration, and KVM functionality, making it ideal for remote data-center management.
• Q: What kind of expansion and I/O can I expect? A: The X11SSL provides essential PCIe expansion slots along with USB and SATA connectivity to support storage, peripherals, and accelerators; the exact configuration varies by SKU, allowing you to tailor the board to your workload.
