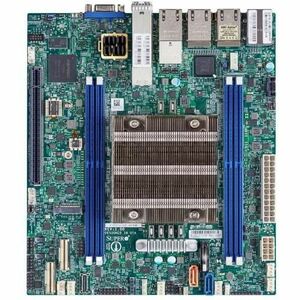

Supermicro X12SDV-16C-SPT8F Server Motherboard - Micro ATX, Intel Chipset, BGA-2579

The Supermicro X12SDV-16C-SPT8F is a compact, enterprise-grade server motherboard designed to deliver reliable performance in dense deployments. With a Micro ATX footprint, this board brings server-class capabilities into a smaller form factor, making it ideal for edge servers, mini data centers, and scale-out appliances. Built around an Intel chipset and the specialized Socket BGA-2579, it combines robust I/O, fast storage options, and advanced management features to support demanding workloads such as virtualization, database operations, and high-speed networking.

• Compact Micro ATX design without compromising enterprise capabilities. The X12SDV-16C-SPT8F fits into a wide range of chassis while providing scalable expansion and reliable power delivery for continuous operation in 24/7 workloads.
• Storage and memory acceleration for modern apps. It supports fast NVMe via M.2, ample storage connectivity, and flexible memory configurations to accelerate boot times, databases, and caching layers.
• High-speed networking for data-intensive tasks. Built-in 10GbE networking ensures low latency and high throughput for virtualization, storage over networks, and edge computing deployments.
• Advanced management and security features. Integrated IPMI/KVM and remote management tools simplify monitoring, diagnostics, and firmware updates, reducing on-site visits and improving operational efficiency.
• Flexible compatibility and scalable I/O. The motherboard is designed to accommodate a range of Intel processors and I/O options, enabling you to tailor the system to specific workloads and performance targets.

Technical Details of Supermicro X12SDV-16C-SPT8F

• CPU Socket: Socket BGA-2579 — designed for soldered Intel processors in enterprise edge and server roles, delivering a compact, reliable computing platform.
• Form Factor: Micro ATX — optimized for dense chassis and versatile deployments, offering essential expansion while conserving rack space.
• Chipset: Intel-based chipset — engineered to support a range of Intel processors and integrated technologies, with optimizations for server workloads.
• Memory Support: DDR4 SDRAM with ECC and non-ECC options — enables robust memory configurations suitable for virtualization, databases, and memory-intensive applications; memory topology and capacity vary by SKU.
• Storage Options: NVMe via M.2, plus SATA connectors — fast boot and data transfer capabilities for OS installations, applications, and caches, with flexible drive layouts to fit diverse use cases.
• Networking: 10GbE network ports — high-bandwidth networking ideal for hyper-converged setups, NAS appliances, and data-center interconnects, reducing bottlenecks in data transfer.
• Expansion & I/O: PCIe expansion opportunities and assorted I/O headers — supports add-on cards, NVMe drives, and peripheral interfaces to suit various enterprise workloads.
• Remote Management: IPMI/KVM and remote monitoring — enables off-site management, firmware updates, and health monitoring to improve uptime and operational efficiency.
• Power & Reliability: Designed for enterprise longevity with dependable power delivery and chassis compatibility — suitable for 24/7 operation in demanding environments.

How to install Supermicro X12SDV-16C-SPT8F

Before you begin, ensure you have a compatible chassis, a power supply that matches your platform’s requirements, and the necessary storage and memory modules. The X12SDV-16C-SPT8F relies on a soldered Intel processor via the BGA-2579 socket, so you won’t install a conventional desktop CPU; you’ll configure the board around the processor that is pre-attached to the motherboard. Follow these steps to install the board safely and optimize performance:

1) Prepare the chassis and workspace. Remove the case covers, verify airflow paths, and verify that your chassis has the correct standoff pattern for a Micro ATX motherboard. Inspect the motherboard for any protective packaging and remove it carefully. Ensure you have a clean, static-free environment and wear an anti-static wrist strap if available.

2) Mount the motherboard. Align the I/O shield with the rear of the chassis and seat the motherboard on the motherboard standoffs. Secure the board with the appropriate screws, tightening them in a cross pattern to ensure even pressure and avoid warping.

3) Install memory modules. Insert DDR4 DIMMs into the appropriate slots according to the motherboard’s memory population rules. Ensure each module is fully seated with a firm click and that the memory configuration complies with the board’s supported memory topology to maximize performance and stability.

4) Attach storage devices. Install M.2 NVMe drives into the designated M.2 slots or connect SATA drives to the correct ports. If you intend to use M.2 for boot or cache, configure the BIOS to recognize the device, and set any required NVMe-specific options for optimal throughput.

5) Connect power and data cables. Attach the 24-pin ATX power connector and the 8-pin or 4-pin auxiliary power connector as required by the board. Connect SATA data cables to your drives, and route cables neatly to maintain airflow. If you plan to use 10GbE networking, connect the network cables to the appropriate LAN ports and verify link status.

6) Initialize and configure. Power on the system and enter the BIOS/UEFI setup. Update to the latest firmware and BIOS version provided by Supermicro to ensure compatibility and security. Configure boot order, RAID or storage options, memory profiles, and any IPMI network settings for remote management. Enable virtualization features if you plan to run virtual machines or containers and set memory timings and voltages per the vendor recommendations.

7) Install the operating system. Use your preferred OS image, whether Linux or Windows Server, and perform a standard installation. After OS installation, apply the latest drivers, firmware packages, and security updates. If you are using IPMI, configure remote console access to monitor the system, keep the firmware up to date, and set up alerting for hardware health checks.

8) Validate performance and reliability. Run benchmark and stress tests to confirm CPU, memory, storage, and network performance align with your workload requirements. Monitor thermal performance and ensure fans respond correctly to dynamic load changes. Establish a maintenance plan for firmware updates and periodic health checks to sustain uptime in production environments.

Frequently asked questions

• Q: What CPUs are compatible with the X12SDV-16C-SPT8F? A: This motherboard uses a BGA-2579 socket design for soldered Intel processors; compatibility is determined by the specific SKU and processor family paired with the board. For precise compatibility, consult the product page or your vendor's specification sheet for the exact processor model list and firmware requirements.
• Q: Does this board support IPMI for remote management? A: Yes. The X12SDV-16C-SPT8F includes IPMI for out-of-band management, remote diagnostics, and KVM over LAN, enabling streamlined and secure administration of servers without direct console access.
• Q: How many memory slots and what type of RAM does it use? A: The board supports DDR4 memory modules (ECC and non-ECC available depending on SKU). The exact number of DIMM slots and supported memory configurations vary by model, so verify the SKU-specific memory topology in the official specifications.
• Q: What storage options are available? A: You’ll find NVMe support via M.2 slots plus SATA connectors for traditional hard drives and SSDs. This combination provides fast OS boot drives, caches, and large-capacity storage for data-intensive workloads.
• Q: Is there built-in networking beyond the 10GbE ports? A: The primary high-speed LAN is 10GbE, suitable for virtualization, storage networks, and inter-server communication. Some SKUs may offer additional NIC options or expansion via PCIe cards depending on the configuration.
