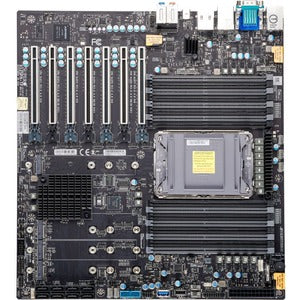

Supermicro X12SPA-TF Workstation Motherboard - Intel C621 Chipset - Socket LGA-4189

The Supermicro X12SPA-TF is a premium workstation motherboard built for demanding professionals who require extreme reliability, expansive memory, and flexible storage in a single platform. Powered by the Intel C621 chipset and the LGA-4189 socket, this Extended ATX board is engineered to support Xeon processors, delivering the processing muscle and stability needed for architectural visualization, scientific computing, CAD/CAM workloads, and data-intensive tasks. With Intel Optane Memory readiness, 16 DIMM slots for up to 4 TB of DDR4 RAM, and eight SATA ports, the X12SPA-TF provides a robust foundation for high-performance workstations that demand long uptime, scalable memory, and versatile storage options.

• Powerful Xeon-ready platform with enterprise-grade chipset and socket. The X12SPA-TF leverages the Intel C621 chipset and the Socket LGA-4189 interface to accommodate compatible Intel Xeon processors, delivering strong multi-core performance and reliable server-class features in a workstation format. This combination is designed for professionals who run CPU-intensive applications, large-scale simulations, 3D rendering, and multi-threaded workloads. With a focus on stability and sustained performance, the board is built to handle the rigors of continuous, heavy use in design studios, engineering labs, and engineering departments.
• Massive memory capacity for demanding workloads. Fit up to 4 TB of DDR4 SDRAM across 16 DIMM slots, with support for RDIMM and LRDIMM modules. This expansive memory configuration is ideal for virtualization hosts, large CAD assemblies, scientific modeling, and HPC-style workloads where maintaining large in-memory datasets accelerates rendering times and data processing. The memory subsystem on the X12SPA-TF is designed to maximize bandwidth and latency characteristics, enabling smoother multitasking and faster data access across professional applications.
• Flexible storage and connectivity for professional workflows. The motherboard includes 8 SATA interfaces to enable robust storage options, allowing you to create efficient RAID configurations, large datasets, and reliable media libraries without sacrificing expansion. Paired with onboard Gigabit Ethernet, you get dependable network connectivity for file transfers, remote work, and collaboration. The Intel Optane Memory readiness adds an acceleration option for frequently accessed data and boot times, helping to improve responsiveness in memory-sensitive workflows and reducing latency during large project loads.
• Intel Optane Memory Ready for accelerated performance. Intel Optane Memory readiness on the X12SPA-TF means you can deploy Optane-enabled caching solutions to accelerate application loading, data access, and system responsiveness. This capability is especially valuable for professionals who open large design files, run complex simulations, or work with sizable data sets where caching layers can shave precious seconds off project iteration cycles, keeping you productive and efficient.
• Extended ATX form factor with broad expansion potential. The Extended ATX design provides ample room for expansion cards, additional storage controllers, and peripherals, making the X12SPA-TF suitable for high-end workstations that incorporate multiple GPUs, PCIe cards, or specialized I/O mezzanines. This form factor ensures compatibility with larger chassis options and simplifies cable management, airflow planning, and component organization in professional environments where space and airflow are critical considerations.

Technical Details of Supermicro X12SPA-TF Workstation Motherboard

• Form Factor: Extended ATX
• Chipset: Intel C621
• Socket: LGA-4189
• Memory: 16 x DIMM slots; supports DDR4 SDRAM; up to 4 TB total capacity; memory module types include RDIMM and LRDIMM
• Processor: Xeon Processor Supported
• Networking: Gigabit Ethernet on board
• Storage: 8 x SATA Interfaces
• Optane: Intel Optane Memory Ready

how to install [product]

Preparing for installation

1) Verify compatibility: Confirm that your workstation chassis supports Extended ATX form factors and that you have a Xeon-compatible processor, appropriate RAM modules, and a power supply with sufficient wattage for your planned configuration. Ensure BIOS availability and a compatible system cooling solution for sustained performance.

2) Install the CPU: Open the LGA-4189 socket, align the processor with the keyed socket, and secure it according to the motherboard manual. Apply a suitable thermal interface material or paste if your cooler requires it, and mount the CPU cooler securely to ensure effective heat dissipation for long-running workloads.

3) Install memory: Insert DDR4 RDIMM or LRDIMM modules into the 16 DIMM slots, following the motherboard’s recommended population order for optimal memory interleaving and performance. Check each module is fully seated and locked in place to avoid memory detection issues during POST.

4) Connect storage and I/O: Attach SATA drives or SSDs to the 8 SATA ports as needed, and connect power and SATA data cables. Connect required I/O cables and any PCIe add-in cards, ensuring proper seating and alignment. If you plan to enable Intel Optane caching, install compatible Optane modules per manufacturer guidelines and enable in BIOS later.

5) Power on and configure: Power up the system, enter the BIOS/UEFI, and verify CPU, memory, and storage are detected correctly. Update BIOS if necessary to the latest version for best compatibility with Xeon processors and Optane technology. Save settings, boot into your operating system, and install the required drivers and workstation software.

6) Software and optimization: Install your professional software suite, update GPU drivers if applicable, configure storage arrays or RAID, and apply any chipset, storage, and network drivers provided by Supermicro or your motherboard manufacturer. Fine-tune power and thermal profiles to balance performance and cooling in your specific chassis and use case.

Frequently asked questions

• Is the Supermicro X12SPA-TF compatible with Intel Xeon processors? Yes. The motherboard is designed to support Intel Xeon processors on the LGA-4189 socket with the Intel C621 chipset, making it suitable for professional-grade workloads that require robust multi-core performance and reliability.
• How much memory can I install? The X12SPA-TF supports up to 4 TB of DDR4 SDRAM across 16 DIMM slots, using RDIMM or LRDIMM modules. This capacity is ideal for virtualization, large-scale simulations, and memory-intensive applications.
• What storage options does it offer? It provides 8 SATA interfaces for flexible storage configurations, enabling RAID setups and ample capacity for data-heavy workflows commonly found in design, engineering, and analytics environments.
• Does it support Intel Optane Memory? Yes. The board is Intel Optane Memory Ready, allowing you to implement Optane caching to accelerate data access and improve system responsiveness for frequently used workloads.
• What is the form factor and wiring footprint? The X12SPA-TF uses an Extended ATX form factor, offering abundant room for expansion cards, cooling solutions, and cable management in larger workstation chassis suitable for professional use.
