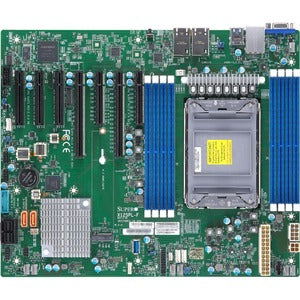

Supermicro X12SPL-F Server Motherboard — Intel C621A Chipset, Socket P, Optane Ready

The Supermicro X12SPL-F is a high-performance, enterprise-grade server motherboard tailored for data centers, virtualization hosts, and storage-intensive deployments. Built around the powerful Intel C621A chipset and designed in the ATX form factor, this board provides a robust foundation for scalable compute, memory, and storage configurations. It supports a broad range of Intel Xeon scalable processors (Gold, Silver, Bronze, and Platinum), delivering solid performance, reliability, and efficiency for demanding workloads. With support for up to 2 TB of DDR4 SDRAM across eight memory slots and versatile memory module options (DIMM, RDIMM, LRDIMM), the X12SPL-F is engineered to optimize memory bandwidth and capacity in virtualized environments, databases, workloads requiring large caches, and mission-critical applications. The onboard features are complemented by ample SATA storage connections (10 ports) and a Gigabit Ethernet NIC, enabling straightforward deployment in rack servers, storage nodes, or edge compute setups. In short, the X12SPL-F brings collaboration-friendly expansion, enterprise-grade reliability, and Optane Memory readiness to empower modern data centers to run faster, cooler, and more efficiently.

• Broad Xeon processor support: Optimized for Intel Xeon Scalable processors—Gold, Silver, Bronze, and Platinum—allowing you to select the right balance of performance, core count, and efficiency for virtualization, databases, analytics, and I/O-heavy workloads. This flexibility helps data centers scale compute capacity without compromising reliability or management simplicity.
• Massive memory capacity with flexible DIMMs: Supports up to 2 TB of DDR4 SDRAM across 8 DIMM slots, giving you the headroom needed for large virtualization hosts, memory-intensive applications, and in-memory databases. The board accommodates a variety of memory module types (DIMM, RDIMM, and LRDIMM), enabling you to optimize for density, error correction, and cost per gigabyte based on your deployment needs.
• Extensive storage and fast I/O connectivity: Equipped with 10 SATA interfaces to support direct-attached storage, solid-state drives, and high-capacity hard drives. This makes it ideal for storage servers, back-end storage pools, and scalable data repositories. A Gigabit Ethernet interface ensures reliable, always-on network connectivity for management, monitoring, and data transfer in most enterprise environments.
• Intel Optane Memory readiness with enterprise-grade chipset: The Intel C621A chipset and Optane Memory readiness enable accelerated caching and storage acceleration for frequently accessed data, reducing latency and improving workload responsiveness in virtualization, databases, and analytics tasks. This feature helps to boost performance without requiring a complete PCIe cache solution.
• ATX form factor with enterprise reliability and expandability: The ATX footprint is designed for rack- or tower-based servers, offering solid build quality, robust power delivery, and compatibility with a wide range of server chassis. The X12SPL-F is engineered for reliability in 24/7 operations, with features aimed at uptime, serviceability, and long-term support in data centers and enterprise environments.

Technical Details of Supermicro X12SPL-F Server Motherboard

• Form factor: ATX
• Chipset: Intel C621A
• Socket: Socket P
• Memory: Up to 2 TB DDR4 SDRAM across 8 DIMM slots; supports DIMM, RDIMM, and LRDIMM
• Storage: 10 x SATA interfaces
• Network: Gigabit Ethernet
• Processor support: Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum processors
• Intel Optane Memory Ready: Yes
• Form factor and design: Server-grade motherboard built for reliability, scalability, and energy-efficient performance in data center environments

how to install Supermicro X12SPL-F Server Motherboard

• Prepare your workspace: Power down all equipment, unplug from power, and ground yourself with an anti-static strap. Have the chassis, screws, thermal paste (if applicable), CPU cooler, and necessary cables ready before starting.
• Install the CPU: Place a supported Intel Xeon processor into Socket P with the correct orientation. Apply an appropriate amount of thermal paste and attach the OEM or compatible CPU cooler securely to ensure proper heat dissipation.
• Populate memory: Insert DIMM modules into the eight memory slots according to your density and population strategy for best performance. Use RDIMM or LRDIMM modules as supported, ensuring they are fully seated and latched.
• Attach storage devices: Connect SATA drives or SSDs to the 10 SATA connectors and organize cables for airflow. Verify that drives are properly seated and recognized in BIOS as you proceed with initial configuration.
• Mount the motherboard: Install the I/O shield if included, align the motherboard with standoffs in the chassis, and secure it with screws. Connect power and any required data/power cables to the appropriate headers and drives.
• Initial BIOS configuration: Power on and enter BIOS/UEFI to set boot order, enable required virtualization features, configure memory settings, and verify hardware temperatures. Update the BIOS to the latest version if needed for compatibility and stability.
• Install operating system: With the hardware configured, proceed to install your preferred operating system (Windows Server, Linux distributions, or other supported servers) using your standard deployment process. Install necessary drivers and management utilities provided by Supermicro for optimal performance and monitoring.
• Post-install validation: Run baseline performance tests, verify that CPUs, memory, and storage are detected correctly, ensure NICs are functioning, and enable any enterprise management features offered by your platform for remote monitoring and maintenance.

Frequently asked questions

• Q: What processors are supported by the Supermicro X12SPL-F? A: It supports a broad range of Intel Xeon Scalable processors, including Gold, Silver, Bronze, and Platinum generations.
• Q: How much memory can I install? A: The board supports up to 2 TB of DDR4 SDRAM across eight DIMM slots, with options for DIMM, RDIMM, and LRDIMM modules.
• Q: Does this motherboard support Intel Optane Memory? A: Yes—the X12SPL-F is Intel Optane Memory Ready, enabling caching acceleration for data-intensive workloads.
• Q: How many SATA ports are available? A: The board offers 10 SATA interfaces for drives and storage devices.
• Q: What is the form factor of this motherboard? A: It uses the ATX form factor, making it suitable for standard server chassis designs and flexible deployment in data centers.
• Q: Is this board suitable for virtualization and data-center workloads? A: Yes. With support for Xeon scalable processors, large memory capacity, Optane caching options, and ample storage connectivity, it is well-suited for virtualization hosts, databases, and enterprise applications.
