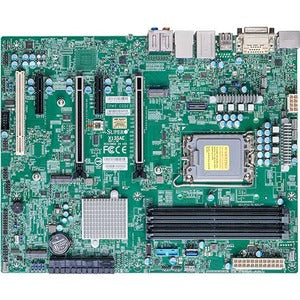

Supermicro X13SAE Workstation Motherboard - Intel W680 Chipset

The Supermicro X13SAE is a premium workstation motherboard built around the Intel W680 chipset and the LGA-1700 socket, designed to power demanding professional workloads with reliability and flexibility. Engineered for performance and expandability, this ATX board supports a wide range of 12th and 13th generation Intel Core processors, delivering strong multi-thread performance for content creation, engineering applications, 3D rendering, and data-intensive tasks. With 4 DIMM slots for up to 128 GB of DDR5 memory, you gain the speed and bandwidth required to handle large data sets, complex simulations, and memory-hungry workloads while maintaining responsive systems during peak workloads. The combination of plentiful storage options, robust networking, and versatile display outputs makes the X13SAE a compelling foundation for professional workstations that demand stable operation, scalable storage, and flexible I/O—right out of the box. Whether you are configuring a digital workstation for CAD/CAM, multimedia editing, scientific computing, or virtualized environments, this motherboard is designed to deliver dependable performance, long-term compatibility, and a solid upgrade path as your projects evolve. The board’s durable design, enterprise-grade I/O, and a clear emphasis on compatibility with modern DDR5 memory position it as a future-ready backbone for modern workstations seeking efficiency, speed, and multi-monitor setups. Its PCIe and storage landscape is crafted to accommodate expanding drives and add-ons, letting you tailor performance and capacity to your specific professional needs while maintaining a clean, organized system layout. In short, the X13SAE brings enterprise-grade capability to a high-performance workstation platform, enabling professionals to tackle complex workloads with confidence and efficiency.

• Powerful compatibility: Supports 12th and 13th Gen Intel Core processors that fit the LGA-1700 socket with the Intel W680 chipset, delivering robust single-thread and multi-thread performance for demanding workflows, from 3D rendering to large-scale data processing.
• Memory capacity and speed: 4 DIMM slots supporting up to 128 GB of DDR5 SDRAM, enabling high memory bandwidth for virtualization, memory-intensive applications, and professional editing pipelines, while keeping multi-tasking smooth and responsive.
• Storage versatility: 8 SATA interfaces provide abundant storage options for operating systems, data drives, and scratch disks, helping you configure RAID-friendly setups and expand storage as your project needs grow without compromising drive health or performance.
• Networking and I/O: Dual Ethernet with Gigabit and 2.5 Gigabit Ethernet ensure fast, reliable network connectivity for file transfers, remote workstations, and local networks; HDMI and DisplayPort outputs support multi-monitor configurations for immersive workflows and accurate color management across displays.
• Build and expandability: ATX motherboard design with ample room for expansion cards and PCIe devices, tailored for professional workstations that require stable power delivery, flexible I/O, and long-term reliability in mission-critical environments.

Technical Details of Supermicro X13SAE

• Form factor: ATX
• Chipset: Intel W680
• CPU socket: LGA-1700
• Supported processors: Intel Core i3/i5/i7/i9 family
• Memory: 4 x DIMM slots, up to 128 GB DDR5 SDRAM
• Memory type: DDR5 SDRAM
• Ethernet: 1 x Gigabit Ethernet, 1 x 2.5 Gigabit Ethernet
• Video outputs: HDMI, DisplayPort
• Storage: 8 x SATA interfaces
• Power delivery and other features: Robust design optimized for stability under heavy workloads and long-running professional tasks

How to Install Supermicro X13SAE

Installing the X13SAE in a workstation chassis follows standard ATX motherboard procedures. Begin by preparing your chassis and ensuring your power supply is compatible with the motherboard’s requirements. Install the I/O shield in the chassis, then align the motherboard with the standoffs and secure it with screws. Install your CPU into the LGA-1700 socket, apply thermal paste if needed, and mount the CPU cooler securely to maintain optimal temperatures under load. Insert the memory into the 4 DIMM slots, following the recommended population pattern from the motherboard manual to achieve best memory performance and stability. Attach storage drives to the SATA ports and add any NVMe drives if supported by the board layout and your CPU capability. Connect the dual Ethernet ports, HDMI, and DisplayPort cables as needed, ensuring your GPU or integrated graphics are configured correctly for the required display setup. Finally, connect all power cables from the PSU to the motherboard and front-panel connectors, boot into the BIOS, and configure memory speeds, boot order, and RAID or virtualization settings as required. Always consult the X13SAE user manual for exact slot layout, BIOS update guidance, and supported memory modules to ensure compatibility and optimal performance for your specific workload. With careful setup, you can unlock dependable performance and a streamlined workflow across multiple professional applications.

Frequently asked questions

Q: Which processors are supported by the Supermicro X13SAE?
A: It supports Intel Core i3, i5, i7, and i9 processors that fit the LGA-1700 socket with the Intel W680 chipset.

Q: How much memory can I install?
A: Up to 128 GB of DDR5 SDRAM across 4 DIMM slots.

Q: What storage options are available?
A: The board provides 8 SATA interfaces to connect hard drives and SSDs; PCIe/NVMe options may be available depending on CPU and board configuration.

Q: What display outputs are included?
A: HDMI and DisplayPort outputs support multi-monitor setups from integrated or discrete graphics solutions.

Q: What are the networking capabilities?
A: One Gigabit Ethernet port and one 2.5 Gigabit Ethernet port provide fast, reliable networking for professional workflows, file transfers, and networked workstations.
