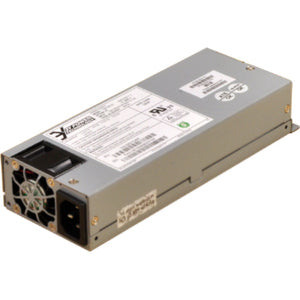

Supermicro YM-5201D ATX & EPS12V Power Supply

SupermicroSKU: 2679364

Price:
Sale price$104.11

Description

Supermicro YM-5201D ATX & EPS12V Power Supply

The Supermicro YM-5201D is a compact, dependable 200W power supply designed for rack-mount deployments where space is at a premium and reliability is non-negotiable. Engineered to support ATX and EPS12V power requirements, this unit delivers steady, clean power to essential system components while keeping heat and energy consumption in check. Built for server-grade environments, the YM-5201D combines a compact form factor with robust electrical performance, making it an ideal choice for low-power servers, network appliances, and compact workstations. Whether you're updating an aging rack-mount system, building a compact server closet, or provisioning a telecom edge device, this power supply provides the stable power delivery and long-term durability that your equipment demands.

  • 200W reliable power delivery ensures consistent voltages for the motherboard, memory, storage, and peripherals, helping to prevent instability during boot cycles and peak workloads.
  • Rack-mountable design fits standard 1U and compact rack enclosures, enabling clean cable management, easy integration with existing data-center infrastructure, and scalable deployment in multi-server environments.
  • ATX and EPS12V compatibility supports a wide range of modern motherboards and system configurations, providing flexible compatibility for diverse builds without sacrificing performance.
  • 3.3V rail precision delivers stable power to memory modules, chipset logic, and critical peripherals, contributing to data integrity, system stability, and long-term component health.
  • Efficient and safe operation with built-in protections and industry-standard safety features helps minimize heat generation, energy waste, and the risk of damage from electrical faults.

Technical Details of Supermicro YM-5201D ATX & EPS12V Power Supply

  • Power Output: 200W maximum to support essential system components without excess heat or energy use.
  • Form Factor: Rack-mountable enclosure-compatible design for easy integration into server racks and compact chassis.
  • Compatibility: ATX and EPS12V power requirements to interface with a broad range of motherboards and system configurations.
  • Rails and Regulation: 3.3V rail provisioned to support memory modules and system logic with stable voltage regulation.
  • Input and Efficiency: Designed for common electrical environments with high-efficiency operation to reduce heat and power waste.
  • Safety and Certifications: Built to meet industry safety standards, offering protection against over-current, short-circuit, and thermal conditions while supporting safe operation in rack environments.

how to install Supermicro YM-5201D ATX & EPS12V Power Supply

Prepare the system for installation by powering down all equipment and unplugging from the wall outlet. Ensure you are grounded to prevent static discharge that could damage sensitive components. Remove the existing power supply if you are upgrading, detaching any cables connected to the motherboard, storage drives, and peripherals. Inspect the rack or chassis to confirm there is adequate space for the YM-5201D and that airflow around the unit will not be impeded by cables or other hardware.

Carefully align the YM-5201D with the mounting points in the chassis or rack and secure it using the appropriate screws supplied with your enclosure. Mounting orientation should allow for sufficient ventilation and easy access to the primary power input connector. Connect the power supply to the system's motherboard using the ATX and EPS12V connectors as required by your motherboard. Ensure that the 3.3V rail and any 5V/12V rails required by your components are properly connected, and double-check that all cable connections are firmly seated and routed to minimize airflow obstruction.

Once all connections are in place, reassemble the chassis or enclosure, reconnect the system to power, and power on to test. Start with a basic POST to confirm that the motherboard, memory, and storage initialize correctly. Monitor the system for stable voltage levels and any signs of abnormal behavior, such as unusual fan noise or unexpected shutdowns. If you notice any instability, verify that all cables are connected properly and that the power supply is adequate for the load. In environments with multiple drives or expansion cards, ensure that the total draw does not exceed the 200W rating and that cooling is sufficient to maintain safe operating temperatures.

Maintenance is straightforward: periodically inspect the power supply mounting, confirm that cables are free of wear, and keep vents clear of dust and debris. In rack deployments, maintain proper airflow by ensuring adjacent devices do not obstruct intake and exhaust paths. If you replace or upgrade other components in the system, re-evaluate power requirements to confirm the YM-5201D remains a suitable match for the new configuration. Regular checks help sustain reliable operation and prevent unexpected downtime in critical infrastructure environments.

Frequently asked questions

  • Q: What is the maximum output of the YM-5201D?

    A: The YM-5201D delivers up to 200W of continuous output to power essential motherboard, memory, and peripheral components in ATX and EPS12V configurations.

  • Q: Is the YM-5201D compatible with multiple rack chassis?

    A: Yes. The rack-mountable design is intended for standard enclosures, making it suitable for data centers, edge deployments, and compact server rooms where space optimization is important.

  • Q: Which voltages does the unit support, and why is 3.3V important?

    A: The power supply provides essential rails, including 3.3V, which is important for powering memory modules and chipset logic. Stable 3.3V helps ensure reliable operation and data integrity across the system.

  • Q: Are there protection features included?

    A: The YM-5201D is designed with standard safety protections to guard against over-current, short-circuit, and thermal conditions, contributing to safer operation in rack environments.

  • Q: What installation considerations should I keep in mind?

    A: Ensure adequate airflow around the unit, verify board compatibility with ATX/EPS12V requirements, and confirm that the total system power requirements do not exceed 200W. Proper cable routing and secure mounting are essential for reliable operation in a rack setup.
