Description

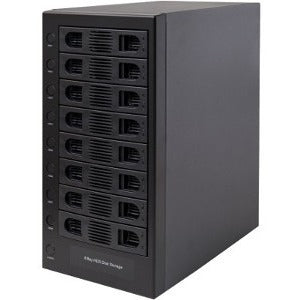

The SYBA SY-ENC50119 is a high-capacity, USB 3.0 external drive enclosure designed to dramatically expand your storage options while keeping drives organized, powered efficiently, and easy to manage. With eight bays that accommodate both 2.5" and 3.5" SATA drives and the latest controller firmware, this enclosure is ideal for creating robust media libraries, backup archives, or a compact, scalable external storage solution for workstations and servers. Its unique independent switch design gives you granular control over each drive, letting you power off idle units to reduce wear, lower energy use, and extend the life of your drives without interrupting others. Built for reliability and performance, the SY-ENC50119 delivers fast USB 3.0 connectivity and flexible expansion in a compact, durable chassis.
- Eight-drive capacity with support for both 2.5" and 3.5" SATA drives, enabling flexible configurations for backups, media libraries, and data-intensive workflows.
- USB 3.0 host interface delivers fast, sustained data transfers up to 5 Gbps, enabling quick backups, rapid file transfers, and smooth streaming for multi-drive setups.
- Independent drive switches provide per-bay power control, allowing you to power down individual drives without affecting others to reduce wear and conserve energy.
- Compatibility with a range of SATA drives and SSDs gives you the freedom to mix drive types for performance and capacity optimization in a single external enclosure.
- Updated controller and firmware ensure reliable operation, compatibility with eight drives, and ongoing support for performance improvements and feature updates.
Technical Details of SYBA SY-ENC50119
- Drive Bays: 8 bays compatible with 2.5" and 3.5" SATA drives
- Interface: USB 3.0 host interface for high-speed data transfer
- Supported Drive Capacity: Up to 8 TB per drive (total capacity depends on installed drives)
- Controller/Firmware: Latest controller technology and firmware to support eight drives with reliable performance
- Power and Control: Independent switch design per drive bay for selective power management
- Drive Type Support: SATA HDDs and SSDs compatible with 2.5" and 3.5" form factors
How to install SYBA SY-ENC50119
Installing the SYBA SY-ENC50119 is a straightforward process that you can complete in minutes. Begin by laying out your workspace and ensuring you have your SATA drives ready. The enclosure is designed to accommodate both 2.5" and 3.5" drives, so confirm the drive sizes you intend to use and double-check their SATA interface compatibility. Next, power down your computer and connect the enclosure to your host system via a USB 3.0 cable. If the enclosure requires a separate power supply, connect it to a suitable power source as indicated in the user manual, then switch on the enclosure. Once connected, your operating system should recognize the device as a mass storage external drive or a set of drives, depending on how you configure the bays.
To install drives, remove the drive bay doors or covers as needed and insert each SATA drive into a bay with the correct orientation. The rugged design of the SY-ENC50119 supports quick drive installation, but take care to align connectors properly and avoid excessive force. Use the independent per-bay switches to manage power for each drive. This feature lets you power down individual disks without disrupting the others, which is particularly helpful during maintenance, testing, or when running a long backup process. After all drives are seated and powered, use your operating system’s disk management tools to initialize, partition, and format each drive as needed. If you plan to use the enclosure for media storage or backups, consider setting up a RAID-like configuration or a carefully organized folder structure to maximize performance and data integrity.
In environments with multiple users or heavy file transfer activity, keep firmware up to date and monitor drive health using SMART utilities supported by your OS or third-party software. The SY-ENC50119’s USB 3.0 interface ensures rapid data movement, while the independent drive switches help you manage power without creating cross-drive noise or overheating. For ongoing use, avoid exposing the enclosure to extreme temperatures or moisture, and ensure adequate airflow around the unit to maintain optimal performance. With proper installation and routine maintenance, this 8-bay USB 3.0 enclosure can serve as a central hub for backups, media streaming, and large-scale project storage for years to come.
Frequently asked questions
- What drives are supported by the SYBA SY-ENC50119? It supports both 2.5" and 3.5" SATA drives and SSDs, allowing a mix of drive types in a single eight-bay enclosure for flexible storage configurations.
- Is the enclosure hot-swappable? The SY-ENC50119 is designed for quick drive installation, but whether you can hot-swap depends on the system configuration and drive health. Power down a drive using its independent switch before removing it to minimize risk.
- Do I need drivers for USB 3.0? In most cases, USB 3.0 external enclosures function as standard mass storage devices without additional drivers. Your operating system should recognize each installed drive once the enclosure is connected and powered.
- How many drives can I use with this enclosure? Up to eight drives can be installed simultaneously, enabling large-capacity storage solutions and extensive data management capabilities.
- Can I mix different drive sizes and capacities? Yes. The enclosure supports 2.5" and 3.5" SATA drives of varying capacities, giving you the flexibility to optimize performance, cost, and total storage.
