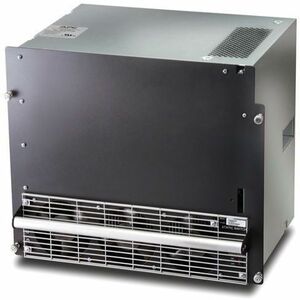

Symmetra PX 80kW Static Switch Module, 208V


Price:
Sale price$7,236.44

Description

Symmetra PX 80kW Static Switch Module, 208V

Designed as a critical accessory for the Symmetra PX family, the Symmetra PX 80kW Static Switch Module (SSM) delivers reliable, scalable power protection at 208V for data centers and facilities that demand high availability. This 208V SSM is engineered to complement a right-sized, modular, and transformative UPS architecture, enabling fast fault isolation, seamless transfers, and consistent power delivery to sensitive IT loads. In environments where uptime is non-negotiable, this module helps you build a future-ready power infrastructure that grows with your workload, without compromising on performance or efficiency.

  • Ultra-fast static transfer and fault isolation: The Static Switch Module provides rapid, seamless switching to protect critical equipment from disturbances, ensuring minimal transfer time and preventing unnoticed blips from impacting servers, storage, and network devices. Optimized for 208V three-phase configurations, it maintains stable voltage delivery across your most sensitive loads while keeping downtime to an absolute minimum.
  • Modular, right-sized scalability: Part of the Symmetra PX modular UPS ecosystem, the 80kW SSM is designed for progressive growth. Start with a compact configuration and add modules as demand rises, preserving redundancy and performance without disruptive upgrades. This modular approach aligns with data center expansion plans, allowing capital efficiency and predictable capacity planning.
  • Hot-swappable design for continuous operation: Built to minimize service windows, the SSM can be replaced or upgraded without halting the entire UPS system. Field serviceability means technicians can attend to maintenance or enhancements quickly, preserving uptime and allowing routine improvements to proceed without impacting critical workloads.
  • Intelligent management and ecosystem integration: The module integrates with Schneider Electric’s UPS management tools and DCIM platforms, delivering real-time health data, configuration options, and alerts. Operators gain visibility into load, efficiency, redundancy, and fault status, enabling proactive maintenance, faster issue resolution, and more informed capacity planning.
  • Energy efficiency and reliability benefits: By optimizing transfer logic and reducing energy waste, the 208V Static Switch Module contributes to a lower total cost of ownership. Efficient operation translates into cooler, more predictable data center temperatures and improved reliability margins for the entire power chain, from incoming utility to IT racks.

Technical Details of Symmetra PX 80kW Static Switch Module, 208V

  • Product type: Static Switch Module (SSM) for the Symmetra PX modular UPS family
  • Rated power: 80 kW at 208V (three-phase)
  • Voltage and topology: 208V AC, three-phase input/output with rapid transfer switching
  • Compatibility: Supports Symmetra PX systems in 10-100 kW 208V configurations; designed to complement higher-voltage variants within the same modular family
  • Protection and redundancy: Facilitates N+1 or 2N configurations to maximize uptime and fault tolerance
  • Maintenance and serviceability: Hot-swappable design for minimal downtime during replacement or upgrades
  • Management and monitoring: Integrates with Schneider Electric UPS management suite and DCIM platforms for proactive health checks and event tracking

How to install Symmetra PX 80kW Static Switch Module, 208V

  • Safety first: Power down and isolate the electrical system according to site procedures; confirm de-energization before handling any UPS components
  • Prepare the installation space: Ensure adequate rack space, proper clearance, grounding, and adherence to manufacturer instructions for mounting and wiring
  • Mount the module: Install the Static Switch Module into the designated slot within the Symmetra PX chassis or rack assembly, securing it firmly with the recommended fasteners
  • Make electrical connections: Connect the 208V three-phase input and output cables to the module and UPS, verifying correct phasing and labeling to prevent mis-wiring
  • Power-on and validate: Restore power, run a health check, and perform a controlled load-transfer test to verify proper operation and DCIM integration

Frequently asked questions

  • Q: What is the Symmetra PX 80kW Static Switch Module used for?

    A: It serves as a key accessory within the Symmetra PX modular UPS family, providing fast, reliable static transfer to protect critical loads and maintain uptime in data centers and facilities.

  • Q: Is the module hot-swappable?

    A: Yes. Its design supports field replacement without powering down the entire UPS, minimizing downtime during maintenance and upgrades.

  • Q: What voltage does it support?

    A: It is designed for 208V three-phase systems, aligning with common data center electrical infrastructure for 208V configurations.

  • Q: Can I scale my system with additional modules?

    A: Yes. The Symmetra PX architecture supports modular growth by adding additional Static Switch Modules to increase capacity and maintain redundancy as demand rises.

  • Q: How does monitoring work?

    A: The module integrates with Schneider Electric’s management tools and DCIM platforms, providing real-time health data, alerts, event logs, and capacity insights to optimize reliability and energy efficiency.
