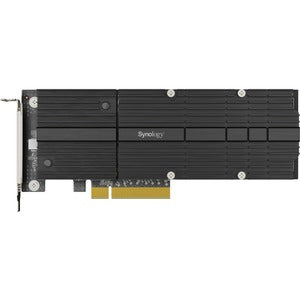

Synology M.2 SSD Adapter M2D20

Unlock dramatic I/O acceleration for your Synology NAS with the M2D20 M.2 SSD Adapter. This compact expansion card supports M.2 NVMe SSDs in both 22110 and 2280 form factors, giving you flexible options to boost performance for latency-sensitive workloads. By adding ultra-fast NVMe storage as cache or a high-speed tier, the M2D20 helps your NAS deliver snappier responses, faster data access, and improved overall throughput. Designed to integrate seamlessly with compatible Synology systems, the M2D20 makes it easier than ever to optimize caching, accelerate workloads, and maximize the effectiveness of your storage investment. Whether you’re running virtual machines, media transcoding, database queries, or real-time analytics, this adapter is built to enhance responsiveness and keep your data moving at the pace your workflow demands.

• Dual M.2 NVMe slots for high-speed caching: The M2D20 provides two NVMe PCIe slots, enabling you to install two M.2 SSDs for aggressive caching or performance-oriented storage configurations, significantly boosting I/O throughput and reducing latency for demanding tasks.
• Supports 22110 and 2280 form factors: Flexible compatibility with common M.2 NVMe drives means you can choose drives with the capacity and performance profile that best fits your NAS workload, from compact 2280 models to longer 22110 options.
• Enhance NAS responsiveness for latency-sensitive apps: By offloading hot data to NVMe SSDs, frequently accessed files and metadata are served faster, delivering quicker application responses and smoother multitasking within your Synology ecosystem.
• Simple integration with Synology DSM: The M2D20 is designed to work with supported Synology NAS models alongside DSM software, enabling straightforward caching configuration and monitoring to optimize performance without complexity.
• Compact, screw-in PCIe expansion for reliable operation: This adapter is built to fit cleanly into compatible NAS systems, providing a stable expansion path for high-speed storage that remains cool under sustained workloads when paired with proper cooling practices.

Technical Details of Synology M.2 SSD Adapter M2D20

• Form factor support: M.2 NVMe SSDs in 22110 and 2280 sizes
• Number of slots: 2
• Interface: PCIe NVMe connection for high bandwidth and low latency
• Target use: SSD caching and high-speed storage acceleration for compatible Synology NAS systems
• Compatibility note: Designed for use with Synology NAS expansion capabilities; check your model’s compatibility with the M2D20 in the DSM hardware compatibility guide

How to install Synology M.2 SSD Adapter M2D20

Installing the M2D20 is a straightforward process that enhances your NAS with dual NVMe SSD speed. Follow these general steps to add the M2D20 to a compatible Synology NAS and configure caching through DSM:

• Power down the NAS and unplug all cables. Ensure you’re working in a static-free environment to protect sensitive components.
• Identify a compatible PCIe expansion slot on the NAS motherboard or chassis where the M2D20 will be installed. Confirm that the slot aligns with the M2D20’s connector and physical dimensions.
• Insert the M2D20 into the PCIe slot with care, ensuring a secure, straight connection. If required, secure the card with the appropriate screws to prevent movement.
• Install your M.2 NVMe SSDs into the two slots on the M2D20. Use the screws provided by the adapter or the NAS chassis to firmly seat each drive, ensuring they are fully seated but not overtightened.
• Power on the NAS and enter DSM. Navigate to Storage Manager (or equivalent caching configuration area) and set up SSD Cache or acceleration policies using the two NVMe drives. Follow the on-screen prompts to designate cache size, caching mode (read, write, or both), and any tiering preferences if supported by your model.
• Monitor cache performance and health in DSM, adjusting settings as workloads evolve. Implement cooling best practices if your drives or enclosure run warm during sustained activity, to maintain consistent performance.

Frequently asked questions

• What is the Synology M.2 SSD Adapter M2D20? The M2D20 is a PCIe expansion card that lets you install two M.2 NVMe SSDs in Synology NAS systems to accelerate I/O operations, enable faster caching, and improve overall storage performance for demanding workloads.
• How many drives can I install with the M2D20? Two M.2 NVMe SSDs can be installed simultaneously, giving you dual-slot caching options or increased cache capacity for larger datasets.
• Which M.2 sizes are supported? The adapter supports both 2280 and 22110 form factors, offering flexibility in drive selection based on capacity and speed requirements.
• Do I need special DSM features to use the M2D20? Yes. Once installed, you configure and manage the NVMe caches through DSM’s Storage Manager or SSD Cache settings on supported NAS models, enabling you to tailor caching policies to your workloads.
• Is additional cooling required? While the M2D20 is engineered for stable operation, NVMe SSDs can generate heat under sustained high workloads. Plan for adequate airflow or cooling to maintain peak performance and longevity.
• Will the M2D20 work with any Synology NAS? The M2D20 is designed for supported Synology NAS models with available PCIe expansion capability. Always verify compatibility with your specific NAS model and DSM version before purchasing.
