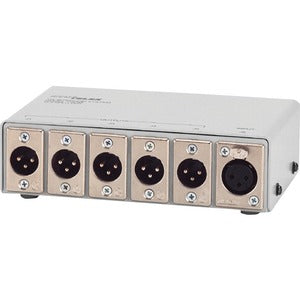

Telex 1x5 Dual-Channel 3-Pin XLR-Type Passive Splitter

TelexSKU: 3615856

Price:
Sale price$244.81

Description

The Telex 1x5 Dual-Channel 3-Pin XLR-Type Passive Splitter is a versatile solution for professional audio distribution, designed to streamline your live sound, studio, and broadcast setups. This compact, rugged device takes a single XLR signal and fans it out to five outputs per channel, giving you effortless multi-point monitoring, stage feeds, and cueing paths without adding noise or requiring power. Built for reliability in demanding environments, the Telex splitter helps you keep your rig organized, guarantees consistent signal quality, and minimizes cable clutter so you can focus on performance rather than setup.

  • Dual-channel distribution: Manage two independent signal paths with a single, integrated unit. Feed one input per channel and distribute to five outputs on each channel, enabling simultaneous routing to monitors, recorders, foldback systems, and stage boxes.
  • Passive, no-power operation: This splitter distributes signals without any external power source, preserving signal integrity and reducing the risk of power-related noise. Ideal for on-the-go gigs and venues where power management is a priority.
  • Professional-grade connectors: Equipped with sturdy 3-pin XLR-type connectors for secure, balanced connections. These connectors ensure robust performance in live environments, while preserving the quality of both microphone and line-level signals.
  • Signal integrity and rugged construction: Engineered to minimize crosstalk and preserve the original signal characteristics across all outputs. The compact, durable metal housing stands up to transport, frequent setup/teardown, and rack or stand mounting in busy venues.
  • Versatile and easy to integrate: Suitable for stage, studio, broadcast, and worship environments. Its straightforward, plug-and-play design makes it a reliable cornerstone of any multi-point audio distribution system.

Technical Details of Telex 1x5 Dual-Channel 3-Pin XLR-Type Passive Splitter

  • Configuration: Dual-channel passive splitter distributing one input to five outputs per channel.
  • Connections: 3-pin XLR-type connectors on inputs and outputs for all channels.
  • Operation: Passive design requiring no external power source; preserves signal quality with minimal noise contribution.
  • Construction: Durable metal housing designed to resist wear from frequent transport and rugged use on stage or in the studio.
  • Applications: Ideal for live sound reinforcement, recording studios, broadcast setups, houses of worship, and any scenario requiring reliable multi-point distribution of balanced signals.
  • Compatibility: Optimized for balanced microphone and line-level signals typical of professional audio ecosystems.
  • Size and footprint: Compact, portable form factor that pairs well with standard racks, stands, or tabletop setups for minimal space utilization.
  • Power requirements: None; fully passive operation.

How to install Telex 1x5 Dual-Channel 3-Pin XLR-Type Passive Splitter

  • Power off all connected equipment before wiring to prevent pops or noise during connection.
  • Connect your primary signal source to the input for Channel 1 using a standard 3-pin XLR cable, ensuring a secure fit.
  • Connect the five Channel 1 outputs to the respective devices (monitors, recorders, or other destination gear) using separate 3-pin XLR cables for clean, organized routing.
  • If you are using the dual-channel capability, repeat the process for Channel 2: attach the Channel 2 input to its source and route its five outputs to the intended devices.
  • Keep all cables neatly organized and away from power cables to minimize potential interference and maintain a tidy console or rack space.
  • Power on your equipment and perform a quick level check at each output to confirm signal integrity and correct routing before a full performance or recording session.

Frequently asked questions

  • What is the Telex 1x5 Dual-Channel Passive Splitter used for? It is designed to distribute a single XLR signal to multiple destinations across two independent channels, enabling simultaneous feeds to monitors, recorders, and other audio devices without introducing extra noise or requiring power.
  • Does this splitter require power? No. As a passive splitter, it does not require an external power source, which simplifies setup and reduces potential points of failure in live environments.
  • Can I use it with both microphones and line-level sources? Yes. The device supports standard balanced signals typical of professional audio equipment, including microphone and line-level applications, when used within your system’s impedance and level considerations.
  • Will signal quality degrade with multiple outputs? The design focuses on preserving signal integrity across all outputs. While any passive splitter introduces some loading, the Telex unit is engineered to minimize distortion, maintain proper balance, and reduce crosstalk for reliable multi-point distribution.
  • Is it suitable for live stage use? Absolutely. Its rugged metal housing, secure XLR connections, and straightforward, Plug-and-Play routing make it a dependable choice for live sound reinforcement, studio sessions, and broadcast environments.
  • Can I use both channels with the same source simultaneously? You can feed Channel 1 and Channel 2 from separate sources if your setup requires independent routing. If you intend to share a single source between channels, ensure your sources and destinations match the device’s impedance and level requirements to avoid mismatches.

Designed with both professional performance and straightforward operation in mind, the Telex 1x5 Dual-Channel Passive Splitter is an essential tool for audio engineers who need reliable signal distribution without adding complexity or noise to the signal path. Whether you are building a compact rig for live events, equipping a broadcast desk with multiple cue and monitor feeds, or expanding a studio’s input/output capabilities, this splitter helps you achieve clean, organized, and repeatable routing. The dual-channel configuration adds flexibility, enabling you to drive separate monitor or recording chains from two independent sources, or to create distinct feedback-resistant paths in environments where timing and cueing are critical. The result is a streamlined workflow, reduced cable spaghetti, and improved on-site efficiency—so you can focus on performance rather than logistics.

In addition to practical day-to-day usefulness, this Telex splitter complements a wide range of audio ecosystems, fitting seamlessly into standard studio desks, stage racks, or portable setups. The combination of high-quality XLR connections, robust construction, and a passive design makes it an attractive option for freelancers, house engineers, and touring productions alike. If you’re looking to expand your output options without adding power requirements or compromising signal integrity, the Telex 1x5 Dual-Channel Passive Splitter stands out as a dependable, versatile solution for modern audio distribution needs.
