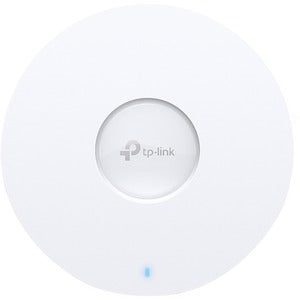

TP-Link EAP610_V1 - Omada Business WiFi 6 AX1800 Wireless Gigabit Access Point

TP-LinkSKU: 6381348

Price:
Sale price$110.67

Description

TP-Link EAP610_V1 - Omada Business WiFi 6 AX1800 Wireless Gigabit Access Point

The TP-Link EAP610_V1 is a premium networking solution built for modern businesses that demand fast, reliable, and scalable wireless connectivity. As part of the Omada ecosystem, this WiFi 6 AX1800 access point delivers exceptional performance in high-density environments such as offices, schools, retail stores, and hospitality venues. With advanced features like OFDMA, MU-MIMO, band steering, and seamless roaming, it keeps devices rapidly connected while reducing interference and latency. Designed for easy deployment and centralized management, the EAP610_V1 helps IT teams simplify administration, optimize guest experiences, and enforce security policies across multiple sites from a single pane of glass.

  • WiFi 6 efficiency in a dual-band AX1800 platform delivers high capacity for dense device environments, helping your network handle many concurrent connections with minimal slowdowns.
  • Omada SDN-ready management enables centralized control, scalable deployment, and strategic roaming across campus locations—whether you operate a handful of offices or a large multi-site network.
  • 2×2 MU-MIMO and OFDMA maximize network efficiency by serving multiple devices simultaneously, reducing airtime waste and delivering smoother performance for video conferencing, cloud apps, and collaboration tools.
  • Robust security and flexible access control with WPA2/WPA3, guest networks, VLAN support, and captive portal options ensure your business data stays protected while guest users enjoy seamless connectivity.
  • PoE powering and versatile mounting options simplify installation—place the EAP610_V1 on ceilings or walls, connect to a PoE-enabled switch, and adopt it into your Omada-managed network in minutes.

Technical Details of [product]

  • Model: EAP610_V1
  • Wireless standard: IEEE 802.11ax (Wi-Fi 6)
  • Frequency bands: 2.4 GHz and 5 GHz
  • Maximum data rate: AX1800 (approximately 574 Mbps on 2.4 GHz + 1,201 Mbps on 5 GHz)
  • Antenna configuration: Internal 2x2 MU-MIMO with beamforming
  • Key technologies: OFDMA, MU-MIMO, target wake time (TWT), and band steering for optimal client distribution
  • Security: WPA2/WPA3-Personal and Enterprise, 802.1X support, and captive portal options for guest access
  • Management: Omada SDN platform compatible (local controller, OC200/OC300, or Omada Cloud)
  • VLAN and guest network support: Yes, with centralized policy enforcement across sites
  • Ports: 1x Gigabit Ethernet PoE input (802.3af); LAN connectivity for managed deployment
  • Power: 802.3af PoE (PoE-capable); optional power adapter where PoE is unavailable
  • Mounting: Ceiling or wall mounting with included hardware
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% non-condensing
  • Certifications: CE, FCC compliant (varies by region)

how to install [product]

  • Plan placement to maximize coverage and minimize interference: place the EAP610_V1 in central locations for high-traffic areas and near conference rooms or reception spaces where guest access is common.
  • Ensure you have a PoE-enabled switch or PoE injector connected to a reliable power source. The EAP610_V1 is designed to operate seamlessly with 802.3af PoE, simplifying deployment and reducing clutter from separate power supplies.
  • Connect the EAP610_V1 to your network: run an Ethernet cable from the PoE switch to the AP’s PoE port, then power up the device and wait for the LED indicators to stabilize.
  • Adopt and configure via Omada: open your Omada Controller (or Omada Cloud) and adopt the EAP610_V1. Create a site, apply your network policies, and assign the AP to the appropriate SSID profiles and VLANs.
  • Set up SSIDs and security: define at least one primary network (e.g., Staff) and a guest network with a captive portal if desired. Enable WPA3/WPA2 security, enable guest isolation, and configure roaming policies for smooth handoffs between APs.
  • Enable advanced optimizations: turn on band steering to guide clients to the less congested band, enable OFDMA and MU-MIMO for high device density, and configure Airtime Fairness to improve performance in crowded environments.
  • Test and adjust: walk the space with a mobile device to verify coverage. Use Omada analytics to monitor client distribution, throughput, and signal quality, then fine-tune placement or channel settings to maximize performance without causing interference with neighboring networks.
  • Scale confidently: as your network grows, add additional EAP610_V1 units and manage them centrally. Omada’s centralized management makes it straightforward to roll out new sites, apply consistent policies, and maintain uniform security standards across your organization.

Frequently asked questions

  • What is the TP-Link EAP610_V1? It is an Omada-managed WiFi 6 AX1800 wireless access point designed for business environments. It provides high-density, reliable wireless coverage with centralized management through the Omada SDN platform.
  • What does AX1800 mean? AX1800 is a Wi-Fi 6 combined data rate around 1800 Mbps, typically with about 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz. It reflects the enhanced capacity and efficiency of Wi‑Fi 6 in busy networks.
  • What networks can I create with this AP? You can create multiple SSIDs, apply VLANs for traffic segmentation, implement guest networks with captive portals, and enforce security policies across devices and users.
  • Do I need a separate controller? The EAP610_V1 is designed for Omada-managed deployments. You can manage it with a local Omada Controller, an OC series hardware controller, or the Omada Cloud for centralized, scalable control across sites.
  • Can it be used outdoors? The EAP610_V1 is intended for indoor deployment. If outdoor coverage is required, consider TP-Link outdoor models with weather-resistant designs and appropriate mounting hardware.
  • How do I ensure optimal performance in a crowded office? Enable Wi‑Fi 6 features such as OFDMA, MU‑MIMO, band steering, and Airtime Fairness. Place APs to minimize interference, use separate VLANs for staff and guest traffic, and continuously monitor performance via the Omada dashboard to adjust channel plans and power levels.
  • Is PoE required? Yes. The EAP610_V1 uses 802.3af PoE for power, which simplifies installation and reduces cable footprint. If PoE is not available, you can use a compatible power adapter option where offered.
  • How secure is the EAP610_V1? It supports modern Wi‑Fi security standards (WPA2/WPA3) and offers 802.1X authentication options, guest network isolation, and captive portal controls to protect both enterprise data and guest access.
