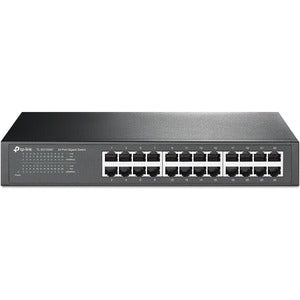

TP-LINK TL-SG1024D - 24-Port Gigabit Ethernet Unmanaged Switch

The TP-LINK TL-SG1024D is a robust and efficient 24-Port Gigabit Ethernet Unmanaged Switch designed to meet the growing demands of your network. Perfect for small to medium-sized businesses, this switch offers seamless connectivity while ensuring energy efficiency. With its plug-and-play capabilities, you can easily transition to Gigabit Ethernet without the hassle of complicated installations. Explore the unique features and benefits that make the TL-SG1024D an essential addition to your network infrastructure.

• 24 Gigabit Ports: The TL-SG1024D is equipped with 24 Gigabit Ethernet ports, providing high-speed connections for your devices. This makes it perfect for data-intensive applications and ensures smooth performance.
• Auto MDI/MDIX Support: Forget about the hassle of cable types! This switch supports auto MDI/MDIX on all ports, allowing you to simply plug in your devices without worrying about whether you need a crossover or straight-through cable.
• Energy-Efficient Technology: Experience a greener network with TP-LINK's innovative energy-saving features. The TL-SG1024D can save up to 20% in power consumption, making it an eco-friendly solution that helps reduce operational costs while benefiting the environment.
• High Switching Capacity: With a switching capacity of 48Gbps, the TL-SG1024D ensures non-blocking performance. It forwards and filters packets at full wire-speed, providing maximum throughput for all your network traffic.
• Advanced Features: This unmanaged switch supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, ensuring reliable data transmission. Additionally, it features MAC address auto-learning and auto-aging to optimize network performance.

Technical Details

• Model: TL-SG1024D
• Ports: 24 x 10/100/1000Mbps RJ45 Ports
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• Power Consumption: 11.6W (max)
• Dimensions: 440 x 180 x 44 mm
• Weight: 2.4 kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

How to Install the TL-SG1024D

Installing the TP-LINK TL-SG1024D is a straightforward process:

1. Unbox the switch and ensure all the included accessories are present.
2. Position the switch on a stable surface or mount it on a rack using the included brackets.
3. Connect your devices to the switch using Ethernet cables. The switch supports auto MDI/MDIX, so you can use straight-through or crossover cables without issue.
4. Plug the power adapter into the switch and connect it to a power outlet.
5. Power on the switch, and the LED indicators will confirm that the connections are made successfully.
6. Once powered, the switch is ready for use—no configuration required!

Frequently Asked Questions

1. What is the difference between managed and unmanaged switches?

An unmanaged switch, like the TL-SG1024D, is a plug-and-play device that does not require configuration. Managed switches offer advanced features and configurations, allowing for greater control over the network.

2. Can I use this switch for Power over Ethernet (PoE)?

No, the TL-SG1024D does not support Power over Ethernet (PoE). It is a standard unmanaged switch that does not provide power through the Ethernet cables.

3. Does this switch support VLANs?

Since the TL-SG1024D is an unmanaged switch, it does not support Virtual LANs (VLANs). If you need VLAN support, consider a managed switch.

4. How many devices can I connect to this switch?

The TL-SG1024D has 24 ports, allowing you to connect up to 24 devices directly. For more devices, you can use additional switches or networking devices.

5. Is the TL-SG1024D suitable for home use?

While the TL-SG1024D is primarily designed for small to medium-sized businesses, it can also be used in home networks, especially if you have multiple devices that require wired connections for high-speed internet access.
