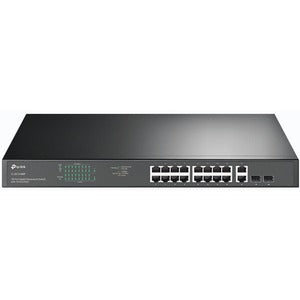

TP-Link TL-SG1218MP - 18-Port Gigabit Rackmount Switch with 16 PoE+

The TP-Link TL-SG1218MP is a powerful and professional-grade 18-port Gigabit rackmount switch designed to meet the needs of various networking applications. With 16 PoE+ ports and a remarkable power budget of 250 W, this switch is perfect for small businesses, offices, dormitories, and surveillance systems. It offers a plug-and-play setup, high-performance capabilities, and intelligent power management, ensuring a reliable network experience.

• High Power PoE+ Capability: The TL-SG1218MP comes with 16 PoE+ ports, each supporting up to 30 W. This enables the connection of a variety of PoE devices, such as IP cameras, access points, and IP phones, providing flexibility for numerous applications.
• Plug and Play Convenience: With no configuration required, the TL-SG1218MP allows for quick and easy installation, making it ideal for those who want to enhance their network without the hassle of complicated setup processes.
• Efficient Quality of Service (QoS): Designed to ensure smooth traffic for latency-sensitive applications like voice and video calls, the switch prioritizes data traffic based on Quality of Service (QoS), delivering an uninterrupted experience.
• Intelligent Power Management: This feature protects against power overload by automatically managing power distribution among the ports. When total power consumption exceeds 250 W, it prioritizes high-demand ports while cutting power to lower-priority ones.
• Durability and Reliability: Built with a durable metal casing and a professional heat dissipation design, the TL-SG1218MP operates efficiently in a wide temperature range (0-50°C), ensuring reliability under various environmental conditions.

Technical Details of the TP-Link TL-SG1218MP

• Ports: 18 x Gigabit Ethernet Ports (16 PoE+)
• PoE Power Budget: 250 W
• Power Consumption: Max 250 W
• Operating Temperature: 0 - 50°C
• Dimensions: 440 x 200 x 44 mm
• Weight: 2.69 kg
• Switching Capacity: 36 Gbps
• MAC Address Table: 8K
• Packet Forwarding Rate: 26.78 Mpps

How to Install the TP-Link TL-SG1218MP

Installing the TL-SG1218MP is straightforward:

1. Unbox the switch and place it in a suitable location, such as a rack or a desktop.
2. Connect your network cables from devices to the 18 Gigabit Ethernet ports. Ensure that PoE devices are connected to the PoE+ ports to leverage power over Ethernet.
3. Plug the power adapter into the switch and connect it to a power outlet.
4. The switch will automatically power on, and you can start using it immediately without additional configuration.
5. Monitor the LED indicators to ensure connectivity and power status.

Frequently Asked Questions

1. What is the maximum power output per PoE port?

The TL-SG1218MP supports up to 30 W per PoE+ port.

2. Can I use this switch with non-PoE devices?

Yes, the switch is fully compatible with non-PoE devices, providing gigabit connectivity for printers, PCs, and other equipment.

3. Do I need to configure the switch before using it?

No configuration is needed. The TL-SG1218MP is a plug-and-play device, allowing for immediate use upon installation.

4. How does Intelligent Power Management work?

This feature automatically manages the power distribution to ensure that high-priority devices receive sufficient power, while lower-priority ports may have their power reduced when the total power exceeds 250 W.

5. What type of applications is this switch suitable for?

The TL-SG1218MP is ideal for a range of applications, including IP surveillance systems, VoIP solutions, and general office networking needs.
