Description

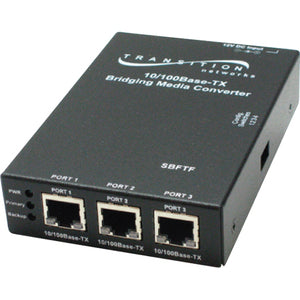

Transition Networks Fault-Tolerant Redundant Link Protector
The Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver designed to dramatically reduce network downtime by introducing a robust, redundant path for critical devices. This solution adds a dedicated failover route that keeps essential services online even if a primary link experiences issues, outages, or maintenance windows. By delivering automatic, seamless switchover between primary and secondary links, the Redundant Link Protector helps enterprises safeguard uptime for servers, storage devices, and vital network appliances that rely on reliable connectivity. It’s engineered to integrate smoothly with existing 10/100 Ethernet deployments, delivering enterprise-grade resilience without requiring a complete network overhaul. With intelligent monitoring, fast recovery, and minimal disruption to ongoing traffic, this transceiver is a trusted companion for environments where every second of availability matters.
- Unparalleled uptime for critical devices: The Redundant Link Protector creates and maintains a redundant path for essential 10/100 devices, ensuring continuous connectivity even when the primary link falters due to cable fault, port failure, or switch glitch.
- Fast, automatic failover and recovery: When the primary link experiences an issue, the device detects the fault and instantly switches to the protection path, delivering rapid restoration of service with minimal packet loss and negligible impact on active sessions.
- Plug-and-play compatibility with existing networks: Designed for 10/100 Ethernet architectures, it works with standard switches, routers, and hubs without requiring major reconfigurations, making it ideal for retrofits and expansion in growing networks.
- Intelligent monitoring and clear status indicators: LEDs and diagnostic Monitoring provide real-time feedback on link status, activity, fault conditions, and protection path health, enabling quick troubleshooting and maintenance planning.
- Protection for mission-critical operations: By isolating essential devices behind a fault-tolerant link, IT teams can protect voice, data, and application services, reducing downtime-related costs and enhancing user experience across the organization.
Technical Details of Transition Networks Fault-Tolerant Redundant Link Protector
- Product type: Fault-tolerant redundant link protector for 10/100 Ethernet networks
- Redundancy method: Dedicated protection path with automatic switchover in case of primary link failure
- Supported interface: 10/100 Mbps Ethernet ports for primary and secondary links
- Failover performance: Rapid, seamless transition to maintenance-free operation during fault conditions
- Indicators: Visual LEDs for link status, activity, fault detection, and protection path health
- Compatibility: Designed to integrate with standard Ethernet devices and existing network infrastructure
- Environment: Built for office and enterprise environments requiring enhanced uptime for critical devices
How to Install Transition Networks Fault-Tolerant Redundant Link Protector
- Plan the topology: Identify the critical device that requires redundancy and determine primary and secondary network paths. Ensure both paths are capable of handling 10/100 traffic and that compatible devices are connected to appropriate ports.
- Power and placement: Place the Redundant Link Protector in a suitable location within the network rack or cabinet. Connect the power supply according to the manufacturer’s guidance and verify that power is stable and accessible for maintenance.
- Connect the primary link: Attach the primary Ethernet cable from the critical device (or upstream network node) to the primary port on the Redundant Link Protector. Ensure the cable quality meets 10/100 standards and is securely seated.
- Connect the protection link: Attach the secondary Ethernet cable to the protection path from the redundant network segment or alternate route to the protection port. This creates the standby path that will be activated when needed.
- Connect to the network: Run the output from the Redundant Link Protector to the appropriate network device (switch, router, or distribution layer). Verify that the downstream device recognizes the link on the protection path.
- Power-on and verify: Power up the unit and observe the LED indicators for normal operation. Confirm that both primary and protection links are detected and that the device reports an active protection state when appropriate.
- Test failover: Simulate a fault on the primary link (disconnect the primary cable or induce a fault) and monitor the transition to the protection path. Validate that traffic continues with minimal interruption and that the system returns to normal once the primary link is restored.
- Configure required network settings: Depending on your environment, you may need to adjust switch port configurations, spanning-tree settings, or routing policies to accommodate the redundant path. Apply changes during maintenance windows if necessary.
- Document and monitor: Record the topology, port mappings, and LED indicators for ongoing maintenance. Establish a monitoring routine to track uptime metrics and set up alerts for fault conditions or switchover events.
- Maintenance tips: Periodically inspect cabling, verify LED status, and test failover scenarios to ensure the redundancy mechanism remains functional. Replace faulty cables and reseat connections as part of routine maintenance.
- Safety and handling: Follow standard electrical safety practices when handling network equipment. Ensure proper grounding and avoid touching exposed connectors during operation.
Frequently asked questions
- What is a Fault-Tolerant Redundant Link Protector? It is a dedicated Ethernet transceiver that creates a secondary, protected network path for critical 10/100 devices. It detects faults on the primary link and automatically switches traffic to the backup path to maintain uninterrupted connectivity.
- Which networks can benefit from this device? Any enterprise or office network utilizing 10/100 Ethernet where downtime for essential devices, such as servers, storage, or network appliances, must be minimized. It is especially useful in environments with limited uptime tolerance or high service-level requirements.
- Will this device increase latency? The redundant path is designed to minimize latency impact. Failover happens automatically, and the transition is engineered to be seamless, preserving as much of the original traffic timing as possible.
- Is configuration required on switches or other network devices? Basic deployment typically relies on standard cabling and the device’s internal protection mechanism. Some environments may benefit from minor switch configuration to optimize convergence and ensure proper path selection.
- How do I verify that the redundancy is working? After installation, monitor the LED indicators for active protection, perform a controlled primary link failure test, and confirm that traffic continues on the protection path with minimal disruption. Maintain logs of switchover events for auditing.
- Can this device be used with 10/100 networks alongside newer 1G or higher-speed equipment? Yes, it is designed for 10/100 Ethernet deployments. It can coexist in mixed environments where only certain links require fault-tolerant protection, without affecting higher-speed segments.
