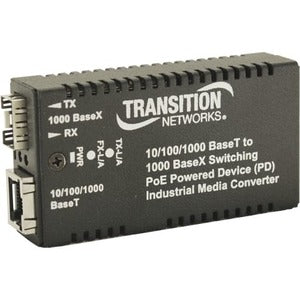

Transition Networks Hardened Mini PD 10/100/1000 Bridging Media Converter

Transition NetworksSKU: 6760257

Price:
Sale price$399.42

Description

This hardened Gigabit Mini PD Media Converter is a PoE powered device that provides a cost-effective method for integrating fiber optic cabling into hardened or outdoor 10/100/1000 UTP environments. Designed to simplify network architectures, it bridges fiber and copper Ethernet to extend high-speed connectivity to remote or challenging locations while keeping installation straightforward and reliable. The compact, rugged unit is built to withstand the demands of outdoor deployments and industrial settings, delivering seamless data transmission without compromising performance. By powering the device through the RJ-45 copper port when connected to Power Sourcing Equipment (PSE), it eliminates the need for a separate power supply on the copper side, reducing cabling complexity and installation costs.

  • Bridges fiber to copper at Gigabit speeds. This converter connects fiber optic cabling to 10/100/1000 Mbps UTP networks, enabling seamless data transfer between fiber and copper segments. It acts as a transparent bridge, preserving network performance and supporting full-duplex operation to ensure reliable, low-latency communication for demanding applications such as video, voice, and data traffic in mixed networks.
  • Power over Ethernet (PoE) powered via RJ-45. The device draws power directly from a PoE-enabled switch or Power Sourcing Equipment on its copper port, removing the need for an additional power source in many deployments. This feature simplifies installation at remote sites, reduces clutter, and helps conserve space in equipment cabinets or outdoor enclosures.
  • Compact, hardened mini design for difficult locations. Despite its small footprint, this media converter is built to endure harsh environments and outdoor conditions. The mini, rugged form factor enables deployment in tight spaces, at industrial sites, or in weather-exposed locations where larger devices would be impractical, while still delivering dependable network bridging.
  • High-performance, versatile networking. Supporting 10/100/1000 Mbps operation, the unit delivers robust data throughput with reliable uplink and downlink Ethernet performance. It’s suitable for bandwidth-intensive applications and supports a broad range of enterprise, campus, and field deployments that require fiber-to-Utp bridging without sacrificing speed or reliability.
  • Cost-effective integration into existing copper networks. By leveraging PoE and a compact design, it minimizes installation costs and trenching needs for fiber drops, enabling gradual upgrades to fiber infrastructure without a full network overhaul. This makes it an attractive solution for expanding networks, migrating to fiber, or bridging to remote offices where fiber connectivity is already present or planned.

Technical Details of Transition Networks Hardened Mini PD 10/100/1000 Bridging Media Converter

Technical specifications vary by SKU, distance, and connector type. Exact fiber interface details, environmental ratings, power requirements, and compatible PSE options are published in the official specifications for the chosen model. For precise values and installation guidance, refer to the product documentation provided by the manufacturer and distributor. This section offers a general understanding of the product’s capabilities and how it fits into a hardened, outdoor, or industrial network topology.

How to install Transition Networks Hardened Mini PD 10/100/1000 Bridging Media Converter

  • Plan the deployment by identifying the fiber run length, fiber type (single-mode or multi-mode), and the PoE availability on the network switch or injector. Confirm that the PoE-capable device can supply the necessary power through the RJ-45 port to sustain operation without an external power supply.
  • Choose an appropriate mounting location that protects the unit from direct exposure to weather while allowing easy access for maintenance. Ensure the enclosure, cable routing, and sealing meet local regulations and environmental requirements for hardened deployments.
  • Connect the fiber optic cable to the media converter’s fiber port using the appropriate connector (for example, LC, SC, or other types as specified by the SKU). Make sure the transmitter and receiver paths are correctly aligned and that the polarity and polarity-affecting curves are properly observed to prevent link errors.
  • Attach the copper Ethernet cable to the RJ-45 port on the converter and connect the other end to a PoE-enabled switch, hub, or injector. This step powers the converter and links the copper side to the rest of the network, enabling data transmission between the fiber and copper segments.
  • Power on the device by connecting to the PoE source; monitor the status indicators to confirm a healthy link on both the fiber and copper sides. If applicable, verify Gigabit operation on the copper side and ensure the fiber link is active with the corresponding optical medium.
  • Test end-to-end connectivity by transferring representative traffic across the fiber-to-copper bridge. Check for consistent throughput, low latency, and minimal packet loss. If the deployment requires specific network configurations, such as VLANs or traffic shaping, implement them per your network design guidelines and verify operation after changes.
  • Document the installation details, including fiber type, connector types, link budgets, and PoE settings to simplify future maintenance, troubleshooting, and potential expansions.

Frequently Asked Questions

  • What is the Transition Networks Hardened Mini PD 10/100/1000 Bridging Media Converter? It is a compact, PoE-powered device that bridges fiber optic cabling with copper Ethernet, enabling reliable connectivity between fiber and 10/100/1000 Mbps UTP networks in hardened or outdoor environments.
  • How is this device powered? The converter is powered through the RJ-45 copper port when connected to a Power Sourcing Equipment (PoE) device, eliminating the need for a separate power supply in suitable deployments.
  • What network speeds does it support? The unit supports Ethernet speeds up to 10/100/1000 Mbps, providing gigabit performance on the copper side while interfacing to fiber on the other side.
  • Can it be used outdoors or in harsh environments? Yes. The product is described as hardened or rugged, designed for challenging outdoor or industrial deployments where equipment must withstand environmental stresses.
  • What should I check before installation? Ensure PoE availability on the uplink switch, verify fiber type and connectors compatibility, and confirm the physical placement meets environmental requirements for a hardened device.
