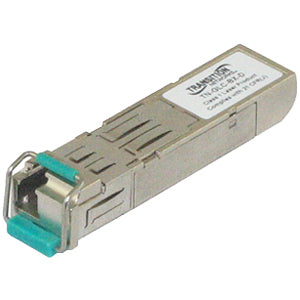

Transition Networks SFP (mini-GBIC) Module – 1 x LC 1000Base-LX Fiber Transceiver

The Transition Networks SFP (mini-GBIC) Module is a compact, hot-swappable fiber transceiver designed to upgrade and extend your Gigabit Ethernet network with ease. Engineered for reliability and seamless compatibility, this 1 x LC 1000Base-LX module delivers high-speed connectivity over long-range optical fiber, enabling networks to scale without sacrificing performance or manageability. Ideal for data centers, enterprise LANs, campus networks, and service-provider backbones, the Transition Networks SFP mini-GBIC provides a flexible solution for connecting switches, routers, and other network devices that support SFP slots. With 1000Base-LX technology, you can confidently deploy fiber links across campus buildings, data halls, or remote sites while maintaining robust data integrity and low latency.

Enhance network performance with scalable fiber connectivity—The Transition Networks SFP module is designed to maximize throughput while minimizing equipment footprint. By leveraging a compact SFP interface, you can retrofit existing infrastructure without replacing switches or routers, preserving your investment while opening new paths for growth. The mini-GBIC form factor is compatible with a wide range of Network Interface Cards (NICs) and switching platforms that support standard SFP modules, giving you the flexibility to mix and match hardware from different vendors where needed. The 1000Base-LX standard offers compatibility with both single-mode fiber (SMF) for long-haul connections and, in some installations, certain multi-mode fiber (MMF) configurations, depending on fiber type and distance requirements. This versatility makes it an excellent choice for campus networks where fiber runs may corridor through multiple buildings or across outdoor spaces.

With the Transition Networks SFP module, you gain native support for duplex LC fiber cabling and a design that prioritizes ease of installation, reliability, and longevity. The device is designed for continuous operation in demanding environments, with attention to thermal stability and power efficiency. This module is an ideal companion to core switches, access switches, and media converters that require a high-quality transceiver to maintain link reliability at 1 Gbps. Whether you’re upgrading a legacy 1000BASE-SX/LX link or expanding to new fiber paths, this SFP mini-GBIC helps you achieve consistent performance across your network while keeping downtime to a minimum.

Beyond raw speed, the Transition Networks SFP module emphasizes practical advantages that matter in everyday networking: plug-and-play installation, standardized mechanical and electrical interfaces, and broad compatibility with industry standards. It is designed to fit into standard SFP slots on a wide array of Ethernet and data communications devices, enabling straightforward field deployment. Administrators can configure, monitor, and troubleshoot links using the host device’s management tools and standard networking protocols, ensuring that fiber links stay healthy and performing as intended. The result is a scalable, maintainable, and future-ready fiber backbone that supports a broad spectrum of applications—from high-throughput data transfer and virtualization workloads to video surveillance and cloud connectivity.

In short, the Transition Networks SFP (mini-GBIC) Module is a dependable choice for anyone seeking to augment a Gigabit Ethernet network with fiber-based connectivity. Its 1000Base-LX standard, LC duplex connector, and compact SFP form factor combine to deliver maximum efficiency, effortless deployment, and long-range reach, all while preserving network performance and reliability. If you are planning to interconnect campus sites, extend a data center cage, or simply add fiber links to your existing infrastructure, this SFP module provides the right balance of speed, distance, and compatibility to meet your objectives.

• High-speed 1000 Mbps over optical fiber: The module supports 1000Base-LX, enabling full-duplex Gigabit Ethernet connectivity over single-mode fiber (and selected MMF configurations) for long-range transmission. This makes it ideal for data-intensive applications, server-to-server links, and backbone connections that demand consistent throughput and low latency. By leveraging a 1310 nm wavelength in typical LX implementations, the transceiver achieves reliable performance across diverse network topologies while minimizing attenuation and dispersion over distance.
• Compact, hot-swappable SFP form factor: This mini-GBIC module is designed to slide into standard SFP slots on compatible switches, routers, and other network devices without power interruption. The hot-swappable nature means you can upgrade, replace, or extend your fiber links with minimal downtime, preserving service continuity and reducing maintenance windows. The small footprint also leaves room for other modules in densely packed equipment racks.
• Standard-compliant LC duplex connector: The LC connector provides a secure, low-loss interface for fiber optic cables. The duplex configuration supports bi-directional communication and aligns with industry practices for 1000Base-LX deployments. This compatibility simplifies cable management, supports standardized terminations, and ensures interoperability with a wide range of fiber cabling plants.
• Versatile long-distance capability: With 1000Base-LX, you can span tens of kilometers over SMF, making it suitable for campus backbones, data center interconnects, and service-provider links. Distance performance depends on fiber type, quality, and connector integrity, but LX transceivers are designed to maximize reach while maintaining robust data integrity and stable latency.
• Reliability, compatibility, and easy maintenance: The module is engineered for stable operation in enterprise environments, with adherence to industry standards and broad compatibility across SFP-enabled devices. Its design supports long-term operation with minimal maintenance, and it can be monitored and managed through compatible host equipment and standard diagnostics. This makes it a practical choice for IT teams seeking predictable performance and straightforward administration.

Technical Details of Transition Networks SFP (mini-GBIC) Module

• Form Factor: SFP (mini-GBIC)
• Interface: 1 x LC duplex fiber optic port
• Data Rate: 1000 Mbps (1 Gbps)
• Standards: 1000Base-LX (IEEE 802.3z); SFP MSA compliant
• Wavelength: Typically around 1310 nm for LX operation
• Fiber Type: Optimized for Single-Mode Fiber (SMF); MMF configurations may be supported in some installations depending on fiber plant
• Distance Capability: Designed for long-range connections; actual distance depends on fiber quality and installation, up to several kilometers
• Electrical/Mechanical: Hot-swappable; standardized SFP footprint compatible with a wide range of switches and routers
• Temperature Range: Suitable for typical data-center and enterprise environments (specifications vary by exact model)
• Compatibility: Designed to work with devices that support standard SFP transceivers and 1000Base-LX Ethernet

how to install Transition Networks SFP (mini-GBIC) Module

Installing the Transition Networks SFP module is straightforward and designed to minimize downtime. Before installation, verify that your device (switch, router, or multilayer gateway) supports SFP transceivers and that the port is designated for 1000Base-LX operation. Ensure you have compatible LC fiber cables with the correct end polarity and connector type. Follow these steps for a clean, reliable installation:

1) Power-down considerations and safety: In most cases, you can insert or remove SFP modules while the device is powered, as SFPs are hot-swappable. However, to minimize the risk of static discharge and accidental interference with other components, consider powering down the device if you are performing multiple hardware changes or working in a sensitive environment. Have your proper ESD precautions in place and handle the module by the edges to avoid touching the optical interface or contacts.

2) Prepare the fiber cabling: Verify the fiber type (SMF for LX) and prepare duplex LC fiber cables with the correct length for your topology. Inspect connectors for dust or damage; use a clean, lint-free cloth or approved fiber-cleaning tools to remove any debris. Avoid bending fiber cables sharply and maintain proper bend radii to prevent attenuation and micro-bending losses that could degrade link performance.

3) Insert the SFP module: Align the module with the SFP slot on your device and gently slide it into place until the latch engages securely. Do not force the module; if you encounter resistance, remove and reinsert carefully. Ensure the module is fully seated and the device recognizes the transceiver. The host port should show an active link indicator once fiber connectivity and negotiation complete.

4) Connect fiber and perform link verification: Attach the duplex LC fiber pair to the SFP module, ensuring correct polarity. Power on the network device if you had powered down for maintenance. Check the LED indicators on both the SFP module (if available) and the host device to confirm a link is established. Use the device’s management interface or CLI to verify parameters like link status, data rate, and error counters. If your network supports SNMP or vendor-specific monitoring, enable and monitor the transceiver’s health and performance metrics to ensure sustained operation.

5) Configure and optimize: Depending on your network, you may need to configure port speed, duplex settings, VLANs, or QoS policies. Most modern devices auto-negotiate 1000 Mbps full-duplex with LX transceivers, but explicit configuration can help prevent duplex mismatches and improve stability in complex networks. Test throughput and latency with representative traffic to confirm that the link meets your performance targets. Periodically monitor the transceiver health and fiber link integrity to catch issues early and prevent service disruption.

Frequently asked questions

Q: What is the Transition Networks SFP (mini-GBIC) Module?
A: It is a compact, hot-swappable optical transceiver that fits into standard SFP slots, providing 1000Base-LX Gigabit Ethernet connectivity over long-range single-mode fiber with an LC duplex interface. It’s designed to extend or upgrade fiber links without replacing existing equipment.

Q: What does 1000Base-LX mean?
A: 1000Base-LX is a Gigabit Ethernet standard for fiber optic networks. It uses a 1310 nm wavelength for long-range transmission, typically over single-mode fiber, enabling links over several kilometers or more depending on fiber quality and distance requirements.

Q: Can this SFP module work with any vendor’s switch?
A: SFP modules that conform to the MSA (Multi-Source Agreement) and IEEE standards are generally interoperable across many vendors. However, some switches implement vendor-specific quirks or firmware checks. It’s best to verify compatibility with your specific switch model if you plan a mixed-vendor deployment.

Q: Is the module suitable for data centers?
A: Yes. Its compact form factor, 1 Gbps throughput, and long-reach capabilities make it suitable for data center backbones, server-to-storage links, and edge connectivity that require reliable fiber performance. Always ensure the distance and fiber type match your design requirements.

Q: What maintenance is required?
A: Regular checks of fiber connections, avoiding dust on connectors, and monitoring link health are the main maintenance tasks. Since SFP modules are designed for long-term operation, focus on ensuring cables remain properly terminated and ports stay clean. If you notice unexplained link drops or performance degradation, re-seating the module and re-validating the fiber plant can help identify issues.

Q: How do I confirm the link speed and health?
A: Use your host device’s management interface to check the port status, link speed, and error counters. Many devices provide LED indicators on the SFP module and slot, and SNMP-based monitoring can alert you to abnormal link behavior. For detailed diagnostics, consult your device’s documentation on transceiver management and port statistics.

Whether you’re modernizing an existing fiber network or deploying a new, scalable backbone, the Transition Networks SFP (mini-GBIC) Module delivers dependable Gigabit Ethernet connectivity with the flexibility to grow. Its 1000Base-LX capability supports long-haul fiber deployments, while the LC duplex interface keeps cabling simple and standardized. This module is designed to integrate smoothly into a wide range of networking environments, providing a straightforward upgrade path that minimizes downtime and maximizes throughput. By combining robust build quality, standard-compliant design, and practical installation steps, it stands as a reliable solution for organizations seeking to extend reach, improve performance, and maintain a scalable fiber-enabled infrastructure.
