Description

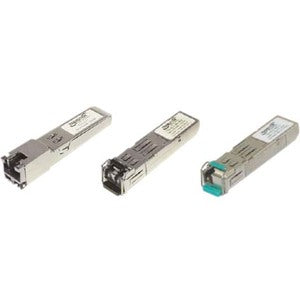

Transition Networks SFP (mini-GBIC) Transceiver Module
The Transition Networks TN-GLC-xxx and TN-SFP-GE-x series represent a flexible, plug-and-play solution for upgrading or expanding network capacity. These SFP transceiver modules enable 1000Base-T, 1000Base-SX, and 1000Base-LX connectivity through standard SFP ports, offering seamless integration with switches, routers, and media converters. Designed for reliability in enterprise and campus networks, they provide a cost-effective way to extend reach, simplify cabling, and future‑proof your infrastructure.
- Flexible Interface Options: The TN-GLC-xxx and TN-SFP-GE-x families support multiple 1 Gigabit Ethernet interfaces—1000Base-T over copper, 1000Base-SX over multimode fiber, and 1000Base-LX over single-mode fiber—so you can tailor your deployment to your existing cabling and distance requirements without swapping devices.
- Broad Compatibility with SFP Ports: Engineered to work in any standard SFP slot, these transition modules are compatible with a wide range of switches, routers, and media converters that support SFP transceivers, delivering a universal, scalable upgrade path across diverse vendor ecosystems.
- Plug‑and‑Play, Hot‑Swappable Design: Install or replace the transceiver without major downtime. The modules are designed for hot-swapping in supported equipment, enabling quick network changes, branch office expansions, or maintenance windows with minimal disruption.
- Cost‑Effective Network Modernization: By enabling 1 Gbps connectivity where copper or fiber options are preferred, the TN-GLC-xxx and TN-SFP-GE-x series help you maximize existing investments, reduce the need for new switch ports, and simplify your upgrade path as bandwidth demands rise.
- Model‑Dependent Reach and Fiber Options: Distances and optics vary by model (GLC-xxx for fiber variants, SFP-GE-x for Gigabit Ethernet interfaces). Choose the exact SKU to match your fiber type (MMF or SMF) and target distance, ensuring optimal performance for data centers, dorm rooms, or office deployments.
Technical Details of Transition Networks SFP (mini-GBIC) Transceiver Module
- Form Factor: SFP (Small Form-factor Pluggable) transceiver module designed to fit standard SFP cages in network devices.
- Supported Interfaces: 1000Base-T (copper), 1000Base-SX (multimode fiber), and 1000Base-LX (single-mode fiber) interfaces, enabling flexible, mixed-media networking.
- Compatibility: Built to work in standard SFP ports across a wide range of switches, routers, and media converters that support SFP modules, providing a universal upgrade path.
- MSA Compliance: Conforms to industry-standard SFP specifications (MSA) to ensure interoperability with equipment from multiple vendors.
- Hot-Swappable: Designed for insertion and removal without powering down most devices, subject to the host equipment’s maintenance guidelines.
- Model Variants: The TN-GLC-xxx and TN-SFP-GE-x families include multiple SKUs; exact specifications (distance, wavelength, and fiber type) depend on the chosen model, so refer to the specific SKU datasheet for precise values.
How to install Transition Networks SFP (mini-GBIC) Transceiver Module
- Identify the correct SFP slot on your network device and verify that the device supports SFP transceivers from the TN-GLC-xxx or TN-SFP-GE-x family.
- Power down the device if your organization’s maintenance policy requires it; in many environments, hot-swapping is supported, but always follow your device’s guidelines.
- Remove the dust cover from the SFP slot and align the Transition Networks transceiver with the slot’s notch. Slide the module firmly into the slot until the locking tab clicks into place, indicating a secure connection.
- Connect the appropriate medium: - For 1000Base-T, attach a high-quality copper RJ-45 patch cable to the transceiver’s copper interface. - For 1000Base-SX, connect a multimode fiber patch cable to the SX connector, ensuring the correct fiber type and connector is used. - For 1000Base-LX, connect a single-mode fiber patch cable to the LX connector, using the proper wavelength and connectors as specified by the SKU.
- Power on the device (if it was powered down) and verify link status using the device’s management interface or via LED indicators on the port. A solid or blinking link LED typically confirms successful establishment of the link.
- Configure the port as needed: set speed/duplex if required, enable or disable auto-negotiation according to your network design, and confirm that the transceiver is recognized in the device’s inventory or port status lists.
Frequently asked questions
- Q: What types of networks can I connect with the Transition Networks SFP modules? A: These SFP transceivers support 1000Base-T (copper), 1000Base-SX (multimode fiber), and 1000Base-LX (single-mode fiber), enabling flexible use across copper and fiber networks and compatibility with a wide range of enterprise equipment.
- Q: Are TN-GLC-xxx and TN-SFP-GE-x modules compatible with all vendors’ switches and routers? A: They are designed to be compatible with standard SFP ports that support SFP transceivers; however, always verify vendor-specific compatibility lists and firmware requirements for your particular devices.
- Q: Can I remove or replace these modules without powering down? A: In most cases, yes—the SFP transceivers are hot-swappable, but follow your device’s maintenance guidelines and ensure minimal disruption to active services.
- Q: How do I determine the maximum distance for my installation? A: Distances depend on the exact SKU, the fiber type (MMF or SMF), and the Transceiver’s specifications. Check the model’s datasheet or product page for the distance range associated with that SKU.
- Q: Do I need any special drivers or software to use these transceivers? A: No special drivers are typically required—the modules are plug-and-play within the supported hardware. Ensure your network devices are running current firmware for optimal compatibility.
