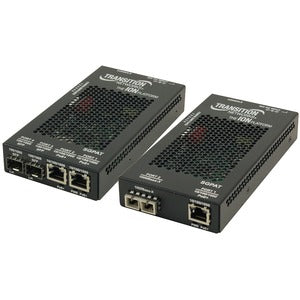

Transition Networks SGPAT1039-105 Transceiver/Media Converter

Transition NetworksSKU: 6760748

Price:
Sale price$506.20

Description

The Transition Networks SGPAT1039-105 is a robust 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet media converter designed to bridge copper and fiber networks with ease. It delivers PoE+ power through the copper RJ-45 port, functioning as a Power Sourcing Equipment (PSE) to simplify deployments where powering remote devices is essential. This compact, plug-and-play solution enables seamless integration of disparate network cabling, enabling longer reach, improved reliability, and simplified topologies for modern office campuses, video surveillance, and edge IT installations.

  • The SGPAT1039-105 provides seamless copper-to-fiber bridging, supporting 10/100/1000Base-T on the copper side and 1000Base-SX/LX on the optical side. This combination lets you extend gigabit Ethernet over fiber where copper runs are impractical or too costly, while preserving compatibility with existing 10/100/1000 Mbps devices and switches. It’s ideal for consolidating network layers, reducing interference on copper runs, and delivering high-speed backbone connectivity to edge devices without replacing your entire cabling infrastructure.
  • PoE+ enabled copper port enables data and power delivery over a single Ethernet cable. This capability is perfect for deploying PoE-powered devices such as IP cameras, wireless access points, VoIP phones, and other networked sensors at remote or hard-to-reach locations, eliminating the need for separate power outlets or additional PoE injectors along the link. The converter intelligently negotiates power needs with connected devices, streamlining installation and reducing clutter.
  • As a Power Sourcing Equipment (PSE) device, the SGPAT1039-105 provides PoE power to compliant Powered Devices (PDs) over the RJ-45 connection. This enables centralized management of both data and power, supporting safer, more scalable installations in corridors, parking areas, or outdoor-facing edge devices where access to power is limited. By sourcing power directly from the converter, network designers can minimize local wiring and simplify maintenance while ensuring reliable device operation.
  • Unmanaged plug-and-play operation means there is no software configuration required. The device auto-negotiates the best available link speed and duplex mode, and it supports auto MDI/MDIX so you can connect devices in any orientation without worrying about crossover cables. LED indicators provide clear, at-a-glance status for link, activity, and PoE power, helping technicians quickly verify connectivity and power delivery during installation or troubleshooting.
  • Designed for reliability and flexible deployment, the SGPAT1039-105 combines a compact footprint with a rugged, enterprise-grade approach. Its resilient construction supports steady operation in typical office environments and more demanding edge sites, while delivering consistent performance for latency-sensitive applications and video transmissions. The solution reduces total cost of ownership by enabling longer copper-to-fiber spans, simplifying cabling, and minimizing the need for separate power infrastructure on remote nodes.

Technical Details of Transition Networks SGPAT1039-105

  • Standards: 10/100/1000Base-T Ethernet on the copper side and 1000Base-SX/LX on the fiber side, enabling versatile gigabit connectivity across both copper and fiber networks.
  • Interfaces: 1 x RJ-45 copper port with PoE+ capability and 1 x 1000Base-SX/LX fiber interface (fiber type and connector depend on the specific variant and installed transceivers).
  • PoE+ support: Injects PoE+ power through the copper RJ-45 port to compatible Powered Devices, consolidating data and power delivery over a single Ethernet link.
  • PSE capabilities: Functions as Power Sourcing Equipment to supply PoE power to connected devices in compliance with PoE standards, enabling streamlined deployment of powered edge devices.
  • Power and installation: Requires an external power source for operation; designed for straightforward installation with no complex configuration required, making it suitable for rapid deployments and quick turn-ups.
  • Application scenarios: Ideal for linking fiber backbones to existing copper endpoints, powering edge devices via PoE, and supporting installations where long-distance fiber connections are needed to reach cameras, APs, and other PoE-enabled equipment.

How to install Transition Networks SGPAT1039-105

Install the SGPAT1039-105 quickly and securely with these practical steps. Start by planning the link path to ensure you have the correct fiber type and connectors for 1000Base-SX/LX and verify the environmental conditions are suitable for the device. Position the unit in a location with adequate ventilation and away from potential physical hazards. Prepare your cables and power supply in advance to minimize downtime during deployment.

  • Mount and power: Place the media converter on a stable surface or in a suitable rack enclosure. Connect the external power supply to the unit and plug it into a reliable power source, ensuring the device powers up and the power LED is illuminated.
  • Fiber installation: Connect the fiber optic link to the 1000Base-SX/LX port using the correct fiber type (short-range SX or long-range LX, as required by your link) and the appropriate connectors. Verify that the fiber link is clean and the connectors are firmly seated to prevent signal loss.
  • Copper connection: Attach your Ethernet cable to the copper RJ-45 port on the converter and connect the other end to your network switch, router, or PoE-enabled device. If you plan to power a PD device via PoE, ensure it is connected to receive power through this same port.
  • Situation checks: Power up the system and observe the LED indicators for link and activity on both copper and fiber sides, as well as the PoE status. Confirm that the connected devices are recognized and that data and power are flowing as expected.
  • Testing and validation: Perform basic connectivity tests and throughput checks to validate that the link is operating at the desired speed and that PoE power delivery is stable. Document the results for future reference and network inventory.

Frequently asked questions

  • What is the primary function of the SGPAT1039-105? It acts as a Gigabit Ethernet media converter that bridges copper 10/100/1000Base-T to fiber 1000Base-SX/LX, while delivering PoE+ power through the RJ-45 port and serving as a Power Sourcing Equipment (PSE) for connected devices.
  • Does it require configuration? No. The device is designed for unmanaged, plug-and-play operation. It automatically negotiates the best available link speed and duplex mode without the need for software configuration.
  • What devices benefit from PoE+ on the copper port? PoE-enabled devices such as IP cameras, wireless access points, VoIP phones, and various sensors can be powered over Ethernet, enabling simpler deployments where power outlets are scarce or inconvenient.
  • Can I use SX and LX fiber types with this converter? The converter supports 1000Base-SX/LX under typical configurations. The exact compatibility depends on the installed fiber transceiver modules or variant specifics; check compatibility with your fiber network before deployment to ensure proper operation.
  • Is this suitable for outdoor or rugged environments? The SGPAT1039-105 is designed for general enterprise and edge deployments. For outdoor or harsh environments, confirm enclosure ratings and environmental specifications from the official documentation and ensure the unit is installed in an appropriately rated enclosure.
  • Does the device provide power to PDs automatically? Yes. As a PoE+ capable PSE, the converter delivers power to compliant PDs over the copper RJ-45 port when connected devices require PoE.
