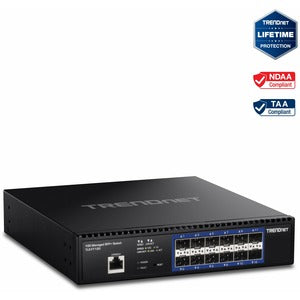

TRENDnet TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch

Designed to empower small and medium businesses with fast, reliable fiber connectivity, TRENDnet’s TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch delivers enterprise-grade features in a compact, rack-mountable form factor. This IPv6-ready switch combines high-speed 10G Ethernet uplinks with advanced traffic management, a user-friendly web GUI, and robust reliability that SMBs need to support virtualization, storage replication, and dense server deployments. With 12 independent 10G SFP+ ports, it offers flexible fiber connectivity to servers, NAS, SANs, and other critical devices while keeping management simple for IT teams of all levels. The TL2-F7120 is built to grow with your network, providing a solid foundation for performance, security, and scalability in today’s fast-paced digital environment.

• 12 x 10G SFP+ ports provide flexible, high-speed fiber connectivity for servers, storage, and uplinks across your network core.
• 240 Gbps switching capacity delivers wire-speed performance with low latency for simultaneous 10G traffic streams and applications.
• Layer 2 managed with advanced traffic management controls, including VLAN segmentation and QoS to prioritize critical workloads and ensure smooth operation of latency-sensitive services.
• IPv6-ready with an intuitive web-based management interface, enabling straightforward configuration, monitoring, and remote administration of your network.
• Rack-mountable black chassis with Lifetime Protection and support for 10GBASE-X / 1000BASE-FX SFP fiber modules for versatile fiber deployment.

Technical Details of TRENDnet TL2-F7120

• Product: TRENDnet TL2-F7120
• Ports: 12 x 10G SFP+ fiber ports
• Switching capacity: 240 Gbps
• Fiber module support: Supports 10GBASE-X and 1000BASE-FX SFP fiber modules
• Management: Layer 2 managed with IPv6-ready web-based interface
• Form factor: 19-inch rack-mountable, black chassis
• Warranty/Protection: Lifetime Protection

How to install TRENDnet TL2-F7120

To ensure a smooth deployment, follow these steps to install and configure the TL2-F7120 in your network environment:

• Unbox and mount: Remove the switch from its packaging and install it in a standard 19-inch network rack using the provided rails or mounting ears. Secure the chassis with screws and ensure proper clearance for cooling.
• Power and placement: Connect the switch to a stable power source. Place it in a well-ventilated area to maintain optimal operating temperatures and reduce noise.
• Insert SFP+ modules: Insert compatible 10GBASE-X or 1000BASE-FX fiber SFP+ transceivers into the 12 ports. Verify that the modules are fully seated and that the fiber cables are properly connected to the corresponding devices, servers, or storage systems.
• Connect fiber runs: Run your fiber optic cables to the respective devices or network cores. Use the correct fiber type (single-mode or multi-mode) and connector standards as required by your environment.
• Initial access and login: Power on the switch and access the web-based management interface. Use the default IP address or hostname provided in the user manual to connect from a connected computer. Log in with the default admin credentials and immediately change them to secure values.
• Firmware and feature setup: Check for the latest firmware version and apply updates if available. Enable and configure Layer 2 features such as VLANs, 802.1Q tagging, QoS policies, and port security as needed for your network design.
• Network design and testing: Create VLANs to segment traffic (e.g., management, VM traffic, storage), assign ports to VLANs, and configure QoS to prioritize critical applications like virtualization, database access, or storage replication. Test connectivity between devices and verify that traffic is routed and switched according to your policies.
• Monitoring and maintenance: Set up monitoring, SNMP traps, and logging as required. Regularly review port statistics, error counts, and uptime to maintain optimal performance and quickly identify potential issues.

Frequently asked questions

• Q: How many ports does the TL2-F7120 have?

  A: The TL2-F7120 features 12 x 10G SFP+ fiber ports for high-speed fiber connectivity.

• Q: Is the TL2-F7120 IPv6-ready?

  A: Yes, it is IPv6-ready and supports modern IP networking through its web-based management interface.

• Q: Do I need to purchase separate SFP modules?

  A: Yes. The switch supports 10GBASE-X and 1000BASE-FX SFP fiber modules, but SFP modules are typically not included in the box. Ensure you select compatible transceivers for your fiber network.

• Q: What is Lifetime Protection?

  A: Lifetime Protection provides ongoing coverage and support for the product, reflecting TRENDnet’s commitment to reliability and value for SMB deployments.

• Q: How do I manage the switch?

  A: The TL2-F7120 is managed via an intuitive web-based interface, making it straightforward to configure VLANs, QoS, port settings, and monitoring without requiring command-line expertise.
