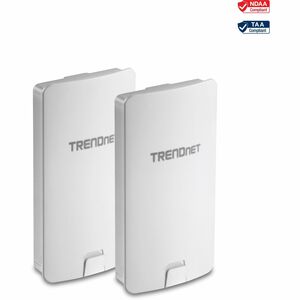

TRENDnet TEW-840APBO2K 14 dBi Outdoor WiFi AC867 Point-to-Point Bridge Kit

Engineered for reliable outdoor wireless backhaul, the TRENDnet TEW-840APBO2K 14 dBi Outdoor WiFi AC867 Point-to-Point Bridge Kit delivers robust 5 GHz connectivity with ease. This preconfigured kit includes two TEW-840APBO access points, each paired with a high-gain 14 dBi directional antenna to form a true point-to-point bridge. Designed for outdoor deployments on campuses, stadiums, industrial sites, or rural campuses, it combines rugged weather resistance with flexible networking capabilities. The kit supports AP, WDS Bridge, WDS AP, WDS Station, and Client Bridge modes, enabling you to tailor the setup to your exact topology. With IP56-rated outdoor housings and built-in PoE adapters, you can install quickly and securely, prioritizing performance while minimizing electrical clutter.

• High-performance 5GHz AC867 backhaul: Leverages 802.11ac on the 5 GHz band to deliver up to 867 Mbps theoretical throughput for backhaul links, supporting high-definition video, real-time data transfer, and demanding applications over outdoor distances.
• Rugged IP56 outdoor design: Each unit is housed in an IP56-rated enclosure to resist dust ingress and water exposure, ensuring dependable operation in rain, wind, and sun without compromising signal quality.
• Versatile WDS and bridging options: Supports AP, WDS Bridge, WDS AP, WDS Station, and Client Bridge modes, enabling flexible topology choices—from simple point-to-point to more complex multipoint networks—without extra devices.
• Preconfigured twin access points for quick setup: The kit includes two preconfigured TEW-840APBO devices, designed for rapid deployment with consistent settings, simplifying alignment and reducing installation time.
• Power and management made simple: Proprietary PoE adapters are included, powering both units from a single source, while a single Gigabit Ethernet port provides fast uplink and straightforward management integration.

Technical Details of TRENDnet TEW-840APBO2K

• Wireless standard: IEEE 802.11ac, 5 GHz, AC867 (theoretical maximum throughput up to 867 Mbps)
• Antenna configuration: 14 dBi directional antennas on each unit, optimized for pointed-to-point links
• Operating modes: AP, WDS Bridge, WDS AP, WDS Station, and Client Bridge
• Interfaces: 1 x Gigabit Ethernet port per unit for high-speed wired uplink and management traffic
• Power delivery: Proprietary PoE power adapters included to simplify outdoor installation
• Weather rating: IP56 outdoor housing designed to withstand harsh environmental conditions
• Package contents: Two preconfigured TEW-840APBO access points, mounting hardware, and the included PoE adapters

How to install TRENDnet TEW-840APBO2K

Step 1: Plan your link. Identify two strategic locations that allow clear line-of-sight or minimal obstructions for a stable 5 GHz connection. Evaluate distances, potential interference sources, and elevation to maximize performance. Document the plan so you can replicate the setup on the second site and maintain consistent configurations.

Step 2: Prepare the mounting environment. Select weatherproof mounting points at each end of the link—typically poles or walls with ample clearance. Ensure surface stability and use the included mounting hardware to secure the TEW-840APBO units in a position that promotes optimal signal direction toward the partner unit. Confirm that the enclosure doors are closed securely to preserve IP56 protection while maintaining accessible ports for management.

Step 3: Power the devices. Connect each TEW-840APBO unit to its proprietary PoE power adapter, and connect the adapter to a PoE-capable switch, injector, or power source designed for outdoor deployments. This two-in-one solution reduces cable clutter and ensures both power and data reach the device with a single Ethernet run.

Step 4: Establish the wired connection. Run a network cable from each PoE adapter to the respective Gigabit Ethernet port on the TEW-840APBO unit. This uplink not only powers the device but also carries management traffic and the backhaul data destined for your core network or access point aggregation.

Step 5: Access the management interface. Power up and connect to the unit using its default IP address and login credentials as described in the user manual. Configure the first unit as an Access Point (AP) and the second unit as a WDS Station or WDS Bridge, depending on your topology requirements. Align the two devices by aiming the 14 dBi directional antennas toward each other and verifying link quality indicators in the web interface. If you are bridging multiple sites, use matching SSIDs, channels, and security settings to ensure a stable, encrypted connection.

Step 6: Tune for performance and security. After basic connectivity is established, optimize the channel and security settings to minimize interference and maximize throughput. Enable WPA2 or WPA3 security where supported, configure a strong admin password, and disable any services that are not required. Keeping firmware up to date is essential to benefit from performance improvements and security patches issued by TRENDnet.

Step 7: Validate the link. Run throughput tests across the link and verify latency metrics. Check environmental factors such as weather conditions and physical obstructions that can affect signal strength. If the link is not performing to expectations, fine-tune antenna alignment or adjust antenna orientation to achieve the best possible alignment between the two endpoints.

Step 8: Document and maintain. Record the final bridge configuration, including IP addresses, security keys, channel selections, and the specific modes used for each unit. Regularly check for firmware updates and re-test after any network changes to ensure the bridge remains robust and secure over time.

Frequently asked questions

• Q: What is the maximum theoretical speed of the TEW-840APBO2K in the 5 GHz band? A: The device supports 802.11ac with an AC867 link, delivering up to 867 Mbps theoretical throughput on the 5 GHz channel for outdoor point-to-point backhaul.
• Q: Is this kit suitable for outdoor deployments in harsh weather? A: Yes. The units are housed in IP56-rated enclosures designed to withstand dust and water exposure, making them well-suited for rain, wind, and bright sun in outdoor environments.
• Q: Which deployment modes are supported? A: The TEW-840APBO2K supports AP, WDS Bridge, WDS AP, WDS Station, and Client Bridge modes, offering flexible options for simple point-to-point links or more complex multi-site networks.
• Q: How many Ethernet ports are available for management and backhaul? A: Each access point includes 1 x Gigabit Ethernet port, providing fast uplinks and reliable management traffic over a single cable.
• Q: Are PoE power adapters included with the kit? A: Yes. The kit ships with proprietary PoE power adapters to power both units, eliminating the need for separate power supplies in outdoor installations.
• Q: Do I need line-of-sight for optimal performance? A: Line-of-sight is strongly recommended for best performance and stability, especially for long-distance backhaul. Obstructions can impact signal strength and throughput, but the kit can tolerate some non-line-of-sight conditions depending on environment and antenna alignment.
