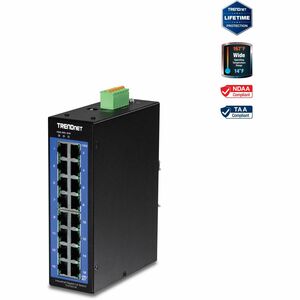

TRENDnet 16-Port Industrial Gigabit L2 Managed DIN Rail Switch, 16 x Gigabit Ports, Wide Temperature Layer 2 Switch, 32 Gbps Switching Capacity, Black, TI-G160i-M

TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i-M, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -10° - 75° C (14° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

• DEVICE INTERFACE: 16 x Gigabit Ports; 6-Pin Removable Terminal Block; DIP Switch (Alarm for Primary/ RPS Power);LED Indicators; DIN-Rail Mount
• REDUNDANT POWER: The 16-port network switch has dual redundant power inputs with overload current protection (POWER SUPPLY SOLD SEPARATELY: Model TI-M6024, TI-S12024, TI-S12048, TI-S24048, TI-S15052, TI-S24052)
• SWITCHING CAPACITY: The industrial layer 2 managed switch is equipped with 32Gbps switching capacity.
• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
• MONITORING: RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
• DIN-RAIL KIT: This 16-Port Gigabit switch comes with an integrated DIN-Rail mount and mounting bracket
• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
• WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 10 - 75 °C (14° - 167° F) for harsh environments.
• NDAA / TAA compliant (U.S. and Canada only)

Shock and Vibration Resistant

The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).

Integration Flexibility

Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design

Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -10° - 75° C (14° - 167° F)

NETWORKING SOLUTION | FEATURES | Network Ports

16 Gigabit ports

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Switching Capacity

32Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)

DIN-Rail Mount

IP30 rated metal enclosure includes DIN-rail mounting bracket

Access Control

Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls

More from the Manufacturer

• Lifetime Warranty
• NDAA / TAA compliant
• Power supply sold separately (models: TI-M6024, TI-S12024, TI-S12048, TI-S24048, TI-S15052, TI-S24052)
• Alarm output triggered by power failure
• Bandwidth control per port
• Redundant power inputs with overload current protection
• IEEE 802.1p QoS with queue scheduling support
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• Operating temperature range of -10° - 75° C (14° - 167° F)
• Hardened IP30 rated metal housing
• Includes DIN-Rail mounting bracket
• 16 x Gigabit ports
• 32Gbps switching capacity
