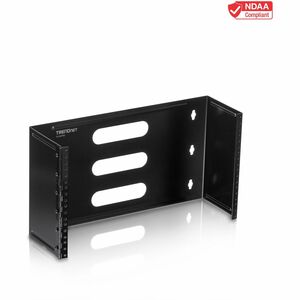

TRENDnet 6U 19-Inch Hinged Wall Mount Bracket TC-WP6U

Organize, protect, and access critical network equipment with TRENDnet’s rugged 6U 19-inch hinged wall mount bracket. Engineered for durability and designed to streamline rack deployments, this wall-mount solution provides secure housing for patch panels and PDUs while delivering effortless access for maintenance and cable management. Built to tolerate the demands of busy network closets, data centers, and home labs, the TC-WP6U combines heavy-duty steel construction with practical features that simplify installation and ongoing operation.

• Sturdy steel construction for reliable support. This wall-mount bracket is crafted from durable steel, delivering robust, long-lasting support for patch panels and PDU power strips. The solid build helps maintain equipment stability in everyday use and under load, reducing the risk of flexing or misalignment that can hamper cable management and airflow.
• Hinged design for easy access and maintenance. The hinged mechanism allows quick access to mounted gear without removing the entire unit from the wall. This feature is ideal for routine cable rearrangements, post-install inspections, and rapid swaps of modules or PDUs, keeping downtime to a minimum.
• 6U of vertical space in a standard 19-inch rack format. The 6U footprint provides ample room for multiple patch panels and PDUs, enabling clean stacking and organized cable routing. Its compatibility with common 19-inch equipment makes it a versatile choice for evolving rack configurations.
• Generous depth and weight capacity for real-world setups. With a maximum depth of 13.9 cm (5.5 inches) and a weight capacity of up to 25 kg (55 lbs), the TC-WP6U accommodates a wide range of patch panels and PDUs while keeping cabling neatly contained and accessible.
• Designed for TRENDnet patch panels and warranty-backed reliability. Use with TRENDnet TC-P24C6AS and TC-KP24S patch panels (sold separately) for a seamless, tested-fit solution. The bracket is backed by a 2-year TRENDnet warranty, offering added peace of mind for both professional deployments and DIY projects.

Technical Details of TRENDnet 6U 19-inch Hinged Wall Mount Bracket for Patch Panels and PDU Power Strips, TC-WP6U

• Product type: 6U, 19-inch hinged wall mount bracket designed for mounting patch panels and PDU power strips.
• Compatibility: 19-inch rack systems; designed for TRENDnet patch panels (TC-P24C6AS, TC-KP24S, and related panels) and other compatible 6U patch panels (sold separately).
• Construction: Heavy-duty steel with a durable finish suitable for server rooms, telecom closets, and workshop environments.
• Mounting standard: EIA-310-compliant 19-inch rack format to align with standard patch panels and PDUs.
• Weight capacity: Up to 25 kg (55 lbs) to support multiple panels and associated cabling without compromising stability.
• Maximum depth: 13.9 cm (5.5 inches) to keep front components accessible while maintaining space for cabling and ventilation.
• Layout: 6U vertical space optimized for efficient organization of cables, power distribution units, and patch panels in compact wall-mount installations.
• Finish: Powder-coated exterior designed to resist wear, fingerprints, and minor abrasions in busy environments.
• Warranty: 2-year TRENDnet warranty, providing coverage for manufacturing defects and basic performance concerns.

How to install TRENDnet 6U 19-inch Hinged Wall Mount Bracket

To ensure a secure, professional installation that capitalizes on the hinged design, follow these steps. Before you begin, gather the appropriate mounting hardware (screws or bolts) suited to your wall type, studs, and anchors, and verify that the wall can safely support the combined weight of the bracket and installed equipment.

1) Plan placement and alignment. Identify a solid wall location with easy access for maintenance and adequate ventilation. Use a level to mark a vertical line where the bracket will be mounted, ensuring that the 6U space aligns with the desired panel or PDU configuration.

2) Attach the bracket to the wall. Secure the bracket to wall studs or anchors using appropriate fasteners. Ensure the bracket sits flush against the wall and is plumb, with all mounting holes aligned. Tighten fasteners firmly to prevent any wobble or shifting during use.

3) Prepare for panel installation. If you are using TRENDnet TC-P24C6AS, TC-KP24S, or other compatible panels, verify their mounting holes align with the bracket’s rails. Because this is a hinged design, you can mount components onto the rails first or mount the bracket and then lift the panel into place as needed, depending on your workspace and cable routing preferences.

4) Install patch panels and PDUs. Slide or attach the 6U panels and power strips onto the bracket rails. Ensure the equipment is evenly distributed to maintain balance and avoid excessive load on any single section of the bracket. Route cables neatly along channels or behind the panels to minimize clutter and maximize airflow.

5) Engage the hinge and perform a final check. Close the hinged portion (if applicable) and verify that the entire assembly remains stable. Check that cables are not under tension, connectors are fully seated, and the weight distribution aligns with the bracket’s design. Open and close the hinge a few times to confirm smooth operation and easy access for future maintenance.

6) Final testing and documentation. Visually inspect the installation for clearance around vents and doors, then power up critical equipment to confirm proper operation. Document the layout for future maintenance or upgrades, noting where each panel and PDU is mounted and how the hinge will facilitate service moves and cable reconfigurations.

Frequently asked questions

Q: What does 6U mean in this context? A: 6U refers to six rack units of vertical space on a standard 19-inch rack. This measurement helps you plan how many patch panels or PDUs can be mounted in the available height, ensuring a clean, scalable layout.

Q: Can the TC-WP6U be used with non-TRENDnet panels? A: Yes, the 6U hinged wall mount bracket is designed for standard 19-inch rack equipment, including various patch panels and PDUs. For best results, verify mounting hole patterns and weight compatibility with your specific panels to ensure a secure fit.

Q: What is the benefit of the hinged design? A: The hinged feature provides convenient access for cable management, panel maintenance, and quick component swaps without having to remove the entire assembly from the wall. This reduces downtime and simplifies routine operations in busy environments.

Q: What is the load capacity and why is it important? A: The bracket supports up to 25 kg (55 lbs). Knowing the weight capacity helps you select the right combination of patch panels and PDUs and prevents overloading the bracket, which could compromise stability and safety.

Q: Is there a warranty? A: Yes, TRENDnet backs this bracket with a 2-year warranty, offering coverage against manufacturing defects and ensuring reliable performance over time.

In addition to its core features, the TC-WP6U is optimized for performance in network-closet environments where space is at a premium. Its steel construction provides a robust framework that resists bending and deformation under load, while the 5.5-inch maximum depth helps keep cabling organized and minimizes the footprint behind the mounted equipment. The 19-inch rack compatibility ensures a wide range of shared hardware can be integrated into a single, tidy mounting solution. Whether you’re deploying a small home lab, a university office, or a mid-sized data center edge, this wall-mount bracket helps you maximize space, improve cable management, and simplify routine maintenance by keeping critical components within easy reach.
