Description

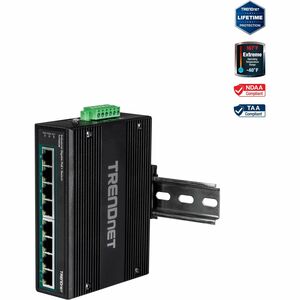

TRENDnet TI-PG80B 8-Port Hardened Industrial PoE+ Gigabit Switch
Designed for demanding industrial environments, the TRENDnet TI-PG80B is a rugged, unmanaged Gigabit switch that powers and networks up to eight PoE+ devices with ease. Built for reliability in factory floors, transportation hubs, and outdoor enclosures, this 8-port switch delivers solid performance, flexible power options, and straightforward installation all in a compact DIN-rail footprint. With a PoE power budget that scales from 120W at 24V to 200W at 48V, a robust 16 Gbps switching capacity, and dual DC inputs with overload protection, the TI-PG80B empowers you to deploy IP cameras, wireless access points, sensors, and other PoE-enabled devices without needing separate power adapters for each device. Its hardened IP30-rated metal housing, wide operating temperature range (-40°C to 75°C), and both DIN-rail and wall-mount compatibility are tailored for harsh industrial settings while maintaining low heat output and dependable uptime. Power supplies for this model are sold separately (TI-S24048 or TI-S12024), allowing you to pick the right voltage and redundancy level for your installation.
- Eight Gigabit PoE+ ports: Power and connect up to eight PoE-enabled devices—such as IP cameras, wireless APs, and sensors—through a single unmanaged switch, with a generous total PoE budget of 120W at 24V or 200W at 48V.
- High-throughput performance: With a 16 Gbps switching capacity, the TI-PG80B enables smooth, low-latency data forwarding across all connected devices, ensuring reliable video, voice, and data transmission in busy networks.
- Rugged industrial design: IP30-rated hardened metal enclosure protects against dust and environmental exposure, while the compact DIN-rail and wall-mount options simplify installation in constrained or mission-critical spaces.
- Dual DC power inputs with overload protection: Two independent 24–56 V DC power inputs offer flexibility for redundant or optimized power distribution, plus built-in overload protection to safeguard connected equipment.
- Wide temperature tolerance for extreme environments: Operating across -40°C to 75°C, the TI-PG80B maintains reliable performance in refrigeration units, hot factories, outdoor enclosures, and other demanding locations.
Technical Details of TRENDnet TI-PG80B
- Ports: 8 x 10/100/1000 Mbps PoE+ ports
- PoE Budget: 120W at 24V; 200W at 48V
- Switching Capacity: 16 Gbps
- Power Inputs: Dual 24–56V DC inputs with overload protection
- Power Supply: Sold separately (models TI-S24048, TI-S12024)
- Enclosure: Hardened IP30 metal
- Mounting: DIN-Rail and wall-mount compatible
- Operating Temperature: -40°C to 75°C
- Mounting Accessories Included: DIN-rail brackets and wall-mount hardware
How to Install TRENDnet TI-PG80B
- Plan the installation location to maximize airflow and minimize exposure to moisture, dust, and physical impact. Choose a DIN-rail mounting location if your enclosure or panel supports it, or use wall-mount brackets for an alternative layout.
- Mount the TI-PG80B onto the DIN-rail or wall using the supplied brackets. Ensure the unit is securely seated and level for stable operation in vibration-prone environments.
- Connect your PoE devices to the eight Gigabit PoE+ ports. Plan cable routing to avoid twisting, bending, or interference, and label cables for easy maintenance and scalability.
- Install the corresponding power supply (sold separately) and connect the DC power inputs. If using dual power, connect each input to its respective source (24–56V). Observe correct polarity and secure the connections to prevent accidental disconnections.
- Power on the unit and verify operation. Because this is an unmanaged switch, connected devices should establish links automatically. Confirm connectivity by checking device activity and network performance. If any device fails to power or connect, recheck PoE budget distribution and cable integrity.
Frequently asked questions
- Q: What is the PoE budget on the TRENDnet TI-PG80B?
- A: The TI-PG80B offers a PoE budget of 120W when powered from a 24V DC source, and up to 200W when powered from a 48V DC source, enabling multiple PoE devices to be powered from a single switch without separate power adapters.
- Q: What environmental conditions is this switch designed for?
- A: It is designed for harsh industrial environments with an IP30 hardened metal enclosure and a wide operating temperature range of -40°C to 75°C, making it suitable for extreme cold and hot installations.
- Q: Can I mount this switch on a DIN rail?
- A: Yes. The TI-PG80B includes DIN-rail mounting hardware and also supports wall mounting for flexible installation options in various enclosures and spaces.
- Q: Do I need to purchase a separate power supply?
- A: Yes. The power supply is sold separately. TRENDnet offers TI-S24048 and TI-S12024 as compatible options to match your voltage and power redundancy requirements.
- Q: Is this switch unmanaged or does it require configuration?
- A: The TI-PG80B is an unmanaged, plug-and-play switch. It requires no software configuration, making it ideal for quick deployments where simplicity and reliability are paramount.
