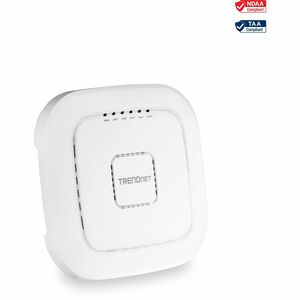

TRENDnet AC2200 Tri-Band PoE+ Indoor Wireless Access Point TEW-826DAP

Meet the TRENDnet TEW-826DAP, a high-performance AC2200 tri-band indoor wireless access point built for reliability, scalability, and flexible deployment. Designed for dense environments—from busy offices to hospitality settings—the TEW-826DAP delivers three concurrent networks, enabling administrators to split workloads, isolate guest traffic, and ensure fast, stable connections across a wide range of devices. With dual 5GHz bands at 867Mbps each and a robust 2.4GHz 400Mbps band, this device is engineered to minimize interference, maximize throughput, and support modern multi-device ecosystems. Its PoE+ power option simplifies installation by eliminating a separate power supply, while its versatile modes—AP, WDS Bridge, WDS Station, Client Bridge, and Repeater—provide a scalable bridge between wired and wireless networks. If you’re aiming for enterprise-grade performance in a sleek white unit, TEW-826DAP is a compelling choice that blends speed, flexibility, and manageability into one compact package.

• Tri-Band, High-Speed WiFi for Seamless Performance - Two independent 5GHz networks (5GHz1: 867Mbps and 5GHz2: 867Mbps) plus a 2.4GHz 400Mbps band create a three-band environment that reduces congestion and delivers fast, real-world speeds for streaming, conferencing, and large file transfers.
• MU-MIMO Wave 2 for Modern Device Networking - With Multi-User MIMO technology, the TEW-826DAP serves multiple clients simultaneously, increasing aggregate throughput and reducing wait times for smartphones, laptops, tablets, and smart devices.
• Versatile Networking Modes for Flexible Deployments - Use the device as an access point, WDS Bridge, WDS Station, Repeater, or Client Bridge to extend your network, bridge wired and wireless segments, or create seamless roaming in complex layouts.
• Power over Ethernet Plus (PoE+) for Easy Install - PoE+ support enables clean, cable-friendly installations, powering the AP from a PoE-enabled switch or injector while transmitting data over a single Ethernet connection.
• Professional-Grade Security and Management - Designed for business environments, TEW-826DAP supports secure wireless access, scalable management, and flexible SSID configurations to protect sensitive data while accommodating guest access and corporate traffic.

Technical Details of TRENDnet TEW-826DAP

• Wireless Standards: IEEE 802.11ac Wireless-AC with Wave 2 MU-MIMO; backward-compatible with 802.11a/b/g/n protocols
• WiFi Speeds: 5GHz network 1 up to 867 Mbps, 5GHz network 2 up to 867 Mbps, 2.4GHz network up to 400 Mbps
• Frequency Bands: Tri-band operation combining two 5GHz channels and one 2.4GHz channel for optimized performance
• Power: PoE+ (IEEE 802.3at) capable, enabling networked power delivery via compatible switches or injectors
• Networking Modes: Access Point (AP), Wireless Distribution System (WDS) Bridge, WDS Station, Repeater, Client Bridge
• Management: Web-based management interface for straightforward configuration, monitoring, and troubleshooting
• Security and SSID: Flexible security options and multiple SSIDs to segregate traffic (guest vs. corporate) while maintaining robust protection
• Connectivity: Gigabit-class Ethernet connectivity and PoE-enabled operation simplify placement and integration into existing networks

How to Install TRENDnet TEW-826DAP

Installing the TEW-826DAP is designed to be straightforward, whether you’re upgrading an existing wireless deployment or building a new tri-band network from the ground up. Here are practical steps to get the most from this access point:

1. Plan your placement. For optimal coverage, position the TEW-826DAP in a central location with minimal obstructions, elevated from ground level, and away from dense metal objects or microwaves that may cause interference. Consider the layout of your space and determine where you want to create separate guest and corporate networks. A higher vantage point on a ceiling mount or wall mounting bracket often yields the best signal distribution for a busy environment.

2. Prepare power and cabling. If you are using PoE+, connect a suitable PoE+ switch or injector to your TEW-826DAP’s PoE-capable Ethernet port. This single-cable approach powers the device and carries data, simplifying installation and reducing cable clutter. If PoE is not available, you will need a conventional power adapter (as required by your setup) and a standard Ethernet connection for data.

3. Connect to your network. Use a computer or management workstation on the same network to access the TEW-826DAP’s web-based management interface. The initial setup typically involves discovering the device on your network and logging in with the default credentials provided by TRENDnet documentation. From here, you can begin configuring your SSIDs, security settings, and operational mode.

4. Configure tri-band SSIDs and security. Create separate SSIDs for each band (2.4GHz and two 5GHz networks) to optimize performance and manage traffic flows. Enable appropriate security measures such as WPA2 and, if supported, additional authentication options. Consider enabling guest access on a dedicated SSID with restricted bandwidth and access permissions to protect internal resources while still offering reliable connectivity to visitors.

5. Set your operating mode and network topology. Choose AP mode for standard wireless coverage, or enable WDS Bridge/Station, Client Bridge, or Repeater modes to extend or bridge networks across buildings or floors. If your goal is seamless roaming across a campus or office suites, enable features that support fast handoffs and stable connections as devices move between APs.

6. Fine-tune performance and monitoring. Review channel selection, transmit power, and band steering options to reduce interference and optimize user experience. Monitor connected devices and performance through the management interface, and adjust SSID broadcast, VLAN assignments, and QoS settings to align with your organization’s priorities.

7. Save, test, and iterate. Apply your configuration, reboot if necessary, and test connectivity on multiple devices. Check for coverage gaps in the area and adjust placement or add additional TRENDnet devices if you need broader reach or deeper indoor penetration.

8. Maintain security and firmware updates. Regularly check for firmware updates from TRENDnet to ensure compatibility with new devices, improved security features, and performance enhancements. Establish a routine for firmware management as part of your network maintenance plan.

Frequently asked questions

What is the TRENDnet TEW-826DAP?

The TEW-826DAP is a high-performance AC2200 tri-band indoor wireless access point from TRENDnet. It delivers two 5GHz networks at 867Mbps each and a 2.4GHz network at 400Mbps, all supported by MU-MIMO Wave 2 technology. It’s designed to be deployed in enterprise environments and offers multiple operating modes, including AP, WDS Bridge, WDS Station, Repeater, and Client Bridge, with PoE+ power for flexible installation.

What are the key features of this access point?

Key features include tri-band wireless support for three concurrent networks, MU-MIMO Wave 2 for efficient multi-device communication, PoE+ power for easy placement, and multiple deployment modes that enable flexible network architectures. It’s built to support robust security options and scalable management suitable for small to mid-sized businesses and demanding commercial environments.

Does TEW-826DAP support PoE+?

Yes. The TEW-826DAP supports PoE+ (IEEE 802.3at), allowing power to be supplied over the Ethernet cable from a PoE-capable switch or injector. This simplifies deployment and reduces the need for nearby power outlets, making it ideal for ceiling or high-wall installations.

Can I use it as a bridge or extender?

Absolutely. In addition to standard AP mode, TEW-826DAP supports WDS Bridge, WDS Station, Repeater, and Client Bridge modes. This versatility enables you to extend wired networks wirelessly, bridge multiple buildings, or create roaming networks with seamless handoffs for connected devices.

What kind of devices benefit most from this device?

Businesses with high device density, multiple user groups, and a need for reliable, fast wireless across floors or buildings benefit most. The tri-band setup and MU-MIMO help service many smartphones, laptops, IoT devices, and conference systems simultaneously, reducing bottlenecks and improving user experiences in conference rooms, offices, or hospitality spaces.
