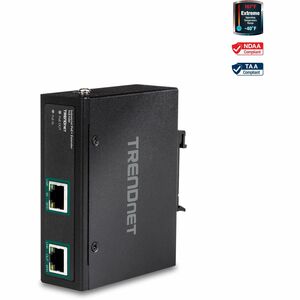

TRENDnet TI-E100 Industrial Gigabit PoE+ Extender — 100m Segments, Cascading to 300m, IP30

When deploying PoE in harsh industrial environments, reliable power delivery and rock-solid data transmission over long distances are essential. The TRENDnet TI-E100 Industrial Gigabit PoE+ Extender is purpose-built for exactly this scenario. Designed to operate in factories, warehouses, and field enclosures, the TI-E100 extends your PoE network by 100 meters per unit while preserving full Gigabit Ethernet performance. Its rugged, IP30-rated metal housing shields sensitive electronics from dust, debris, and incidental impacts, enabling dependable operation in temperatures from -40°C to 75°C (-40°F to 167°F). Whether you’re powering IP cameras, wireless access points, or other PoE devices across a sprawling facility, the TI-E100 delivers power and data with minimal setup, scalability, and cost.

• Extend PoE networks at the edge: Each TI-E100 adds 100 meters of distance for your PoE link; cascade two units to achieve up to 300 meters (984 feet) of total PoE extension, allowing high‑value devices to be positioned precisely where they’re needed most.
• Support for PoE and PoE+: Power devices with IEEE 802.3af (PoE) up to 15.4W or IEEE 802.3at (PoE+) up to 30W, enabling a wide range of cameras, wireless APs, sensors, and other power-hungry endpoints without requiring an additional AC power source at remote sites.
• Industrial-grade durability: Built to endure demanding environments, the TI-E100 operates reliably from -40°C to 75°C (-40°F to 167°F) and features a tough IP30-rated metal housing, giving you confidence in long-term installations inside cabinets, enclosures, or outdoor-rated enclosures.
• Gigabit performance for demanding applications: With up to 1 Gbps data throughput, you’ll enjoy smooth high-definition video streaming, fast device provisioning, and responsive data links even as you extend the network across greater distances.
• Easy, scalable deployment: A simple, cable-friendly installation process supports quick setup and minimal downtime. Daisy-chain up to two TI-E100 extenders to scale your PoE network without complex power solutions or expensive infrastructure upgrades.

Technical Details of TRENDnet TI-E100

• Model: TI-E100 Industrial Gigabit PoE+ Extender
• Port configuration: Single PoE-enabled port for remote device power and data
• PoE standards supported: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) with power budgets up to 30W
• Data rate: Up to 1 Gbps Ethernet
• Distance extension: Extends 100 m per unit; total extension up to 200 m in standalone use; daisy-chain up to two units for up to 300 m (984 ft.)
• Operating temperature: -40°C to 75°C (-40°F to 167°F)
• Housing: IP30-rated metal enclosure for rugged industrial environments
• Power and installation: Powered via PoE; no external power adapter required for remote devices

How to Install TRENDnet TI-E100

Begin with a clear plan for device placement and cabling in your facility. Identify the PoE-enabled switch or injector that will supply power to the first TI-E100 unit and determine the optimal locations for the intermediate extender and the final remote device. Use high-quality Cat5e or Cat6 Ethernet cabling to maintain Gigabit performance and meet distance requirements.

Step 1: Verify that your network provides IEEE 802.3af/at PoE support on the switch or injector you intend to use as the primary power source for the TI-E100 unit. Confirm that the remote PD (the device you plan to power, such as an IP camera or wireless AP) is PoE-enabled and compatible with PoE/PoE+ power budgets.

Step 2: Mount the TI-E100 in a suitable enclosure or cabinet, ensuring adequate airflow for passive cooling and compliance with environmental requirements. Route the Category cable from the PoE switch to the TI-E100 input port, keeping runs clean and away from sources of excessive EMI or physical damage.

Step 3: Connect the remote device (PD) to the TI-E100’s PoE port at the far end of the link. If you are using a second TI-E100 for extended reach, connect the first TI-E100’s output/next link to the input of the second TI-E100, and then connect the final PD to the second extender’s PoE port. Maintain the correct cable discipline and avoid sharp bends to preserve signal integrity.

Step 4: Verify link integrity and power delivery. Check the indicator LEDs on both TI-E100 units and the connected PDs to confirm PoE is delivering power and data is passing through at the expected speed. If you encounter any anomalies, recheck cable quality, ensure cables meet category standards, and confirm that the remote PD is within its power class and within the supported distance for your cascade configuration.

Step 5: Finalize the deployment with environmental considerations in mind. Close enclosures to protect against dust and incidental contact, secure cabling to prevent strain, and document the installation for maintenance. With the TI-E100 in place and properly cascaded, your PoE network will extend reliably to the desired locations while keeping performance and power delivery consistent across the entire link.

Frequently asked questions

Q: What is the maximum distance the TRENDnet TI-E100 can extend?

A: Each TI-E100 extends the PoE link by 100 meters. A standalone setup can reach up to 200 meters in some configurations, and you can cascade two TI-E100 units to achieve up to 300 meters (984 feet) of total PoE extension, enabling distance-critical devices to be deployed where needed most.

Q: Does the TI-E100 support PoE and PoE+ devices?

A: Yes. The TI-E100 supports IEEE 802.3af (PoE) up to 15.4W and IEEE 802.3at (PoE+) up to 30W, allowing a broad range of devices—from low-power cameras to higher-wattage wireless access points—to be powered through the same link.

Q: Does the TI-E100 require an external power supply?

A: No external power supply is required for the remote PDs because the TI-E100 is powered via PoE. You simply route power from your PoE switch through the extender to the remote device. This simplifies installations and reduces cable clutter in the field.

Q: In what environments can the TI-E100 operate?

A: The TI-E100 is built for industrial environments. It features an IP30-rated metal housing and an extended operating temperature range from -40°C to 75°C (-40°F to 167°F), making it suitable for harsh factories, warehouses, and outdoor enclosures with proper protection.
