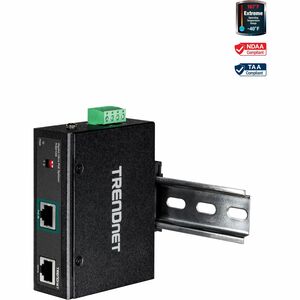

TRENDnet TI-SG104 Industrial Gigabit UPoE Splitter

Meet the TRENDnet TI-SG104, a rugged, industrial-grade UPoE splitter designed to maximize network versatility in challenging environments. This device takes a single Gigabit Ultra PoE source and intelligently splits it into separate power and data paths, enabling you to run two powered devices from one UPoE connection. Built for DIN-rail and wall-mount installations, TI-SG104 provides flexible mounting options while maintaining reliable performance in industrial settings. Its adjustable voltage output gives you the flexibility to tailor power delivery to two devices, reducing clutter and simplifying deployments in manufacturing floors, transportation hubs, or smart-building infrastructures. Whether you’re powering sensors, cameras, controllers, or other field devices, TI-SG104 ensures clean data transmission at Gigabit speeds while supplying stable, configurable power to connected equipment.

• The TI-SG104 networks a non-PoE device by leveraging a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources, enabling two devices to share a single UPoE source without sacrificing performance or reliability.
• Designed for flexible installations, the splitter ships in a rugged industrial enclosure and can be mounted on a DIN-rail or secured to a wall, making it ideal for compact equipment racks, control cabinets, and rugged industrial environments where space and mounting options matter.
• Equipped with dual DC power outputs and an adjustable voltage configuration, TI-SG104 lets you tailor power delivery to two different devices from one UPoE source, reducing cable clutter, simplifying spare parts management, and improving overall system reliability in field deployments.
• Maintains robust Gigabit data integrity across the splitter, preserving high-speed network performance for connected devices while simultaneously delivering power, which helps ensure critical applications such as surveillance, automation, and telemetry operate without interruptions.
• Built for industrial-grade applications, TI-SG104 combines reliable electrical design with practical mounting versatility and straightforward integration, making it a cost-effective, future-ready solution for expanding UPoE networks and powering distributed devices from a single source.

Technical Details of TI-SG104

• Model: TI-SG104
• Function: Industrial Gigabit UPoE splitter that powers two devices from a single UPoE source while providing gigabit data connectivity
• Power outputs: Dual DC power outputs with adjustable voltage to match connected devices
• Data interface: Gigabit data path for reliable network connectivity
• Mounting: DIN-rail and wall-mountable enclosure for flexible installation in cabinets, enclosures, or on walls
• Construction: Industrial-grade design intended for harsh or demanding environments
• Compatibility: Requires a UPoE (Ultra PoE) capable source for data and power delivery
• Management: Simple, passive splitter design with no complex configuration required
• Use cases: Powers two separate devices from one UPoE source, reduces cabling, and provides flexible deployment in factory floors, data centers, or campus networks

How to Install TI-SG104

Installing TI-SG104 is straightforward, whether you’re upgrading an existing network or deploying a new UPoE-powered solution. Start by selecting an appropriate mounting location that supports DIN-rail or wall installation and provides adequate clearance for cooling and cable routing. Ensure the UPoE source or switch feeding the TI-SG104 is powered and configured to deliver Ultra PoE to the splitter’s input. Connect the UPoE input to the TI-SG104, then connect your two devices to the dual DC power outputs, making sure to match each device’s voltage requirements to the adjustable output setting on the splitter. Run the data cables from your network to the TI-SG104’s data path, ensuring a clean, organized layout to protect connectors and cables from physical damage. Finally, secure the unit in place using the DIN-rail clip or wall-mount brackets, verify all connections, and power up the system to confirm that both data and power paths are functioning correctly. For best results, test each device individually to validate that the power output is correctly aligned with its operating voltage and that data transmission remains stable under load. This approach ensures a robust, scalable installation suitable for industrial environments and helps prevent unexpected downtime caused by power or connectivity issues.

Frequently asked questions

• Q: What is the TRENDnet TI-SG104 and what does it do? A: TI-SG104 is an industrial Gigabit UPoE splitter that takes one Ultra PoE source and splits it into two powered devices with a single data path, enabling two devices to be powered and connected without needing separate PoE supplies.
• Q: How does the dual DC power output benefit my installation? A: The dual DC outputs let you supply two devices from one UPoE source, reducing cable clutter, simplifying power budgeting, and enabling more compact, scalable deployments in cabinets or on the manufacturing floor.
• Q: Can TI-SG104 be mounted in a DIN-rail system or on a wall? A: Yes. TI-SG104 is designed for flexible mounting on DIN-rails or directly on walls, making it suitable for a wide range of industrial enclosure configurations.
• Q: Is the voltage output adjustable? A: Yes. TI-SG104 provides adjustable voltage output to match the requirements of the connected devices, helping to ensure safe and reliable operation across different equipment.
• Q: Do I need a special UPoE switch to use TI-SG104? A: TI-SG104 requires a UPoE-capable power source. Use a compatible Ultra PoE switch or injector to deliver both data and power to the splitter, then distribute power to two devices via the dual outputs.
