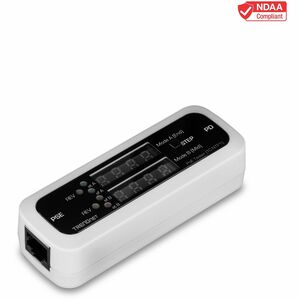

TRENDnet Inline PoE Tester TC-NTP1 — Real-Time PoE Diagnostics for 4PPoE, PoE+, PoE and Passive PoE
Discover the TRENDnet TC-NTP1 Inline PoE Tester, a compact, battery-free tool designed for IT professionals, network administrators, and field technicians who demand fast, accurate PoE analysis. This inline tester places power and data paths at your fingertips, enabling you to verify power delivery, identify faults, and troubleshoot PoE issues with confidence. With a Gigabit PSE input port and a Gigabit device output port, the TC-NTP1 supports multiple PoE schemes—4PPoE, PoE+, PoE and Passive PoE—across IEEE 802.3af/at/bt standards, making it an essential instrument for installs, upgrades, and maintenance in modern networks. The bright LED display shows live readings for wattage, voltage, amperage, and polarity, eliminating guesswork when you need to confirm power availability and polarity integrity before deployment. Whether you’re deploying cameras, IP phones, wireless access points, or switches, this tester helps you validate the power path quickly, reducing downtime and supporting proactive network reliability.
- Comprehensive PoE Standards Support — The TC-NTP1 is engineered to test 4PPoE, PoE+, PoE and Passive PoE, covering all common PoE delivery methods you’ll encounter in today’s networks. It supports IEEE 802.3af/at/bt, enabling you to identify the exact PoE standard a PSE (Power Sourcing Equipment) switch or injector provides. This makes it ideal for mixed environments where legacy devices and newer PoE-powered devices share the same switch stack. By confirming the exact standard in use, you can plan power budgets, avoid under- or over-voltage conditions, and ensure compliant, safe power delivery to every PoE device on the network.
- Dual Gigabit Testing Ports for Accurate Power Validation — The tester features 1 x Gigabit port for the PSE connection and 1 x Gigabit port for the PoE device, allowing you to simulate real-world data and power flows. This dual-port configuration helps you validate both ends of the PoE link—whether the power originates from a PoE switch, injector, or midspan, and how the powered device responds under load. By mirroring actual deployment paths, you gain a true representation of operational conditions, improving fault isolation and reducing deployment guesswork.
- Three Testing Modes with Real-Time Readouts — The TC-NTP1 supports three testing functions, including T-mode, designed to determine the PoE standard supported by the PSE device. In addition to allegiance to standard identification, you’ll gain immediate insight into live measurements such as wattage, voltage, amperage, and polarity. The inline tester’s multi-mode approach helps you quickly distinguish between power delivery issues caused by the PSE, the cable, or the powered device, so you can remediate problems faster and keep downtime to a minimum.
- LED Display, Battery-Free Convenience, and Portable Design — A bright LED display provides clear, at-a-glance readings that you can trust in a busy data center, classroom, or office environment. The TC-NTP1 is battery-free, drawing power from the PoE path under test, which simplifies field use and reduces maintenance. Its compact, no-fuss form factor makes it easy to carry in a toolkit or pouch, so you can bring precise PoE diagnostics to any installation site or service call.
- Built for Field Service and Troubleshooting — Engineered for reliability, this inline tester is an indispensable companion for technicians who routinely install, upgrade, or troubleshoot PoE devices. It helps verify proper power delivery to IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices. By exposing mismatches in voltage, current, or polarity, the TC-NTP1 assists you to quickly pinpoint where the problem lies—whether it’s a switch configuration issue, a faulty injector, a damaged cable, or a non-PoE device—saving time and reducing service calls.
Technical Details of TRENDnet TC-NTP1
- Ports — 1 x Gigabit port for PSE connection; 1 x Gigabit port for PoE Device connection
- PoE Standards Supported — 4PPoE, PoE+, PoE, Passive PoE; IEEE 802.3af/at/bt compatibility
- Measurement Capabilities — Wattage, Voltage, Amperage, Polarity
- Display — LED display for real-time PoE readings
- Power Source — Battery-free operation; powered through the PoE path under test
- Testing Modes — Three testing functions including T-mode for identifying the PoE standard supported by PSE
- Primary Use — Troubleshoot PoE issues, verify power delivery, and validate powered devices on Gigabit networks
How to install TRENDnet TC-NTP1
Installing the TRENDnet TC-NTP1 is straightforward and designed for quick deployment in any PoE-enabled environment. Follow these simple steps to begin testing in minutes:
- Step 1: Ensure the PoE network is powered down if you’re working on a critical production line, or proceed if you’re performing live testing with minimal risk. The TC-NTP1 is battery-free and draws power from the PoE path under test, so no external power adapter is required.
- Step 2: Connect the PSE source (switch or injector) to the tester’s PoE PSE port (the input Gigabit port).
- Step 3: Connect the PoE device under test to the tester’s PoE device port (the output Gigabit port). Ensure both connections are secure to prevent intermittent readings.
- Step 4: Observe the LED display for real-time readings of wattage, voltage, amperage, and polarity. Use the T-mode function to identify the PoE standard supported by the PSE, and verify that the device under test receives the correct power according to its requirements.
Frequently asked questions
- What is the TRENDnet TC-NTP1 used for? It is an inline PoE tester designed to verify power delivery and diagnose PoE issues on networks that use PoE, PoE+, 4PPoE, and Passive PoE. It helps technicians confirm the PoE standard, voltage, and current at the powered device, ensuring proper operation and safety.
- Which PoE standards does TC-NTP1 support? It supports IEEE 802.3af/at/bt and can test 4PPoE, PoE, PoE+, and Passive PoE configurations. This makes it suitable for mixed environments with different PoE implementations.
- Do I need a battery to use TC-NTP1? No. The device is battery-free and draws power from the PoE path it is testing, simplifying field use and reducing maintenance concerns.
- What readings can I expect to see? The LED display shows live measurements for wattage, voltage, amperage, and polarity, enabling quick validation of power delivery and polarity integrity at the device under test.
- Can TC-NTP1 help with troubleshooting? Yes. By identifying the PoE standard via T-mode and exposing any mismatches in voltage or current, you can isolate issues to the PSE, the cable, or the powered device, speeding up fault resolution and minimizing downtime.
