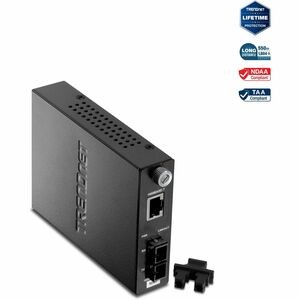

TRENDnet TFC-1000MSC: 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Media Converter

Introduce seamless fiber connectivity to your copper Ethernet infrastructure with the TRENDnet TFC-1000MSC. This intelligent, standalone media converter translates 1000Base-T copper signals to 1000Base-SX multi-mode fiber, delivering reliable, high-speed performance over extended distances. Designed for compatibility with TRENDnet’s TFC-1600 fiber chassis system, this SC-type MMF converter is an excellent solution for expanding network reach in data centers, server rooms, and small-to-medium business environments. With a robust 2 Gbps switching capacity and lifetime protection, the TRENDnet TFC-1000MSC is built to simplify upgrades while maximizing uptime.

• Versatile copper-to-fiber conversion: Converts 1000Base-T copper Ethernet to 1000Base-SX MMF fiber via an SC connector, enabling smooth upgrades from copper to fiber without replacing core networking gear.
• Long reach over multi-mode fiber: Supports fiber distances up to 550 meters (1800 feet) on multi-mode fiber, unlocking extended Ethernet segments without discrete switches or re-cabling.
• Standalone or chassis-compatible: Functions as a standalone media converter or can be integrated into TRENDnet’s TFC-1600 fiber chassis system for scalable, centralized fiber management.
• High-speed performance with protection: Delivers up to 2 Gbps switching capacity for fast, reliable traffic forwarding and comes with lifetime protection to safeguard your investment.
• Clear signaling and easy diagnostics: LEDs indicate Power, Copper Link, Fiber Link, and Activity, providing quick visual status checks and reducing troubleshooting time.

Technical Details of TRENDnet TFC-1000MSC

• Model: TFC-1000MSC
• Type: Standalone Fiber Media Converter
• Copper Interface: 1000Base-T RJ-45
• Fiber Interface: 1000Base-SX MMF SC
• Distance (MMF): Up to 550 m (1800 ft)
• Fiber Type: Multi-Mode Fiber
• Connector: SC
• Forwarding Capacity: 2 Gbps switching capacity
• LED Indicators: Power, Copper Link, Fiber Link, Activity
• Compatibility: Compatible with TRENDnet’s TFC-1600 fiber chassis system (SC-type 1000Base-SX MMF fiber port)
• Protection: Lifetime Protection
• Power: External power supply required

How to install TRENDnet TFC-1000MSC

Step 1 – Prepare your cables: Gather a 1000Base-T Ethernet cable for copper connectivity and a 1000Base-SX multi-mode fiber cable with SC connectors for the fiber link.

Step 2 – Connect copper side: Plug the 1000Base-T Ethernet cable from your switch, router, or server into the RJ-45 copper port on the TFC-1000MSC. Ensure the connection is snug to avoid intermittent link status.

Step 3 – Connect fiber side: Attach the MMF SC fiber cable to the 1000Base-SX port. Align the Tx/Rx orientation as required by your fiber setup, and hand-tighten the SC connector until it is securely seated.

Step 4 – Power up: Connect the external power supply to the TFC-1000MSC and plug it into a powered outlet. Wait a moment for the device to initialize and for the Power LED to illuminate.

Step 5 – verify links: Check the Copper Link and Fiber Link LEDs to confirm a healthy connection. The Activity LED should blink with traffic, indicating normal data flow between copper and fiber interfaces.

Step 6 – optional chassis integration: If using TRENDnet’s TFC-1600 fiber chassis system, install the TFC-1000MSC into an available slot, following the chassis’ mounting guidelines. This provides centralized cabling, easier management, and enhanced scalability for growing networks.

Tip: When upgrading networks, ensure the fiber path uses appropriate multi-mode fiber grade and that the total run length remains within the 550 m limit for 1000Base-SX. For best results, keep fiber paths free from excessive bends and maintain clean connectors.

Frequently asked questions

• What is the TRENDnet TFC-1000MSC used for? It is a standalone media converter that enables 1000Base-T copper networks to connect to 1000Base-SX multi-mode fiber networks, extending reach and enabling fiber uplinks without replacing existing copper equipment.
• What distances can it support? It supports up to 550 meters (1800 feet) over multi-mode fiber, making it suitable for medium-range server rooms and campus backbones.
• Is the TFC-1000MSC compatible with TRENDnet’s fiber chassis? Yes, it is compatible with TRENDnet’s TFC-1600 fiber chassis system, SC-type 1000Base-SX MMF fiber ports, providing a scalable deployment option.
• How much switching capacity does it offer? The device provides up to 2 Gbps of switching capacity, ensuring fast forwarding of traffic between copper and fiber networks.
• What kind of protection does it have? It includes Lifetime Protection, giving you ongoing coverage for hardware issues, upgrades, or defects as part of TRENDnet’s warranty program.
• What indicators will I see on the unit? LED indicators show Power, Copper Link, Fiber Link, and Activity, helping you quickly assess link status and data flow at a glance.
