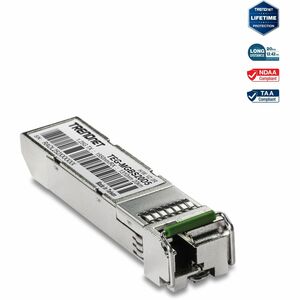

How to install TRENDnet SFP to RJ45 Dual Wavelength Single-Mode LC Module

Follow these straightforward steps to install and deploy the TRENDnet TEG-MGBS20D5 SFP module for long-haul, high-reliability connections:

1) Verify compatibility: Confirm your switch or fiber converter has an available SFP slot and that you are using a TRENDnet MGBS20xx family module that is designed to pair with TEG-MGBS20D5 (for example, TEG-MGBS20D3 or a compatible TRENDnet module). Ensure firmware on the host device is current and supports SFP transceivers of this type.

2) Power down (optional but recommended): If your equipment cannot support hot-swapping, power down the switch or device before inserting the SFP module. In many modern equipment, hot-swapping is supported, but it’s prudent to follow your vendor’s guidelines.

3) Insert the SFP module: Align the module with the SFP slot and gently insert until it seats firmly with a click. Do not force the module; if it doesn’t slide in smoothly, re-seat or verify there is no obstruction in the slot.

4) Connect the fiber: Attach a simplex LC fiber optic cable to the LC interface on the SFP module. On the other end, connect to the receiving device’s corresponding SFP or fiber interface, ensuring the end-to-end path uses single-mode fiber and appropriate connectors. Because this is a dual-wavelength WDM module, ensure the opposite side’s WDM path is configured to match the pairing (i.e., the transmitting and receiving wavelengths are aligned).

5) Configure the link: Power up the devices and enable the SFP module in the host switch’s or fiber converter’s management interface. Configure the port settings (speed, duplex, and VLANs) to match your network plan. If the device supports it, enable auto-negotiation where appropriate, or manually set the speed to 1.25 Gbps if required by your network design.

6) Verify link integrity: Check the link status LEDs on both ends and confirm the transceiver status in the device’s management interface. Run a basic connectivity test (ping, traceroute, or equivalent) to verify end-to-end reach. Monitor for any retry errors or signal quality indicators that may suggest fiber issues or connector contamination.

7) Optimize and document: Record the pairing with TEG-MGBS20D3 or compatible modules in your network documentation. Include fiber type, distance, paired devices, and any wavelength settings that apply to WDM operation. Regularly review fiber cleanliness and connector condition to maintain reliability over the 20 km reach.

Frequently asked questions

• What is the maximum distance supported by the TRENDnet TEG-MGBS20D5?
• What data rate can this SFP module handle?
• Which modules must I pair it with to ensure proper operation?
• What kind of fiber connector does this transceiver use?
• Does TRENDnet offer warranty or protection for this module?

Answers (summarized): The module supports up to 20 km (12.4 miles) on single-mode fiber and operates at up to 1.25 Gbps. It is designed to pair with TRENDnet’s TEG-MGBS20D3 or other compatible modules to form a functional SFP-based link. It uses a simplex LC fiber interface and supports bi-directional WDM. TRENDnet provides Lifetime Protection for this product, offering ongoing assurance and replacement options. Always refer to your network equipment’s documentation for exact configuration steps and supported SFP types.
