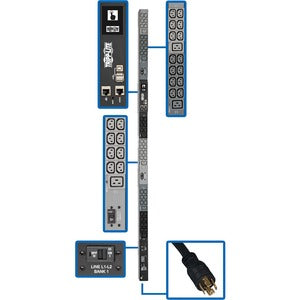

Tripp Lite by Eaton 10kW 3-Phase Monitored PDU with LX Interface

Meet a powerhouse in power distribution for demanding IT environments and rugged industrial installations: the Tripp Lite by Eaton 10kW 200-240V 3PH Monitored PDU, model PDU3EVN6L2130B. This advanced unit is engineered to deliver reliable, scalable power while turning complex electrical data into actionable insight. With a 10 kW capacity, it supports high-density server racks, network appliances, and critical equipment in data centers, labs, and manufacturing floors. Its built-in Gigabit network connection enables real-time remote monitoring of voltage, frequency, and load levels, so facility managers and IT teams can observe performance from anywhere and respond before issues escalate. The 48-outlet configuration—featuring 42 C13 outlets for general IT gear and 6 C19 outlets for higher-current devices—provides abundant, flexible distribution for heterogeneous deployments. An LCD panel offers quick, local visibility on power conditions, while the LX Interface streamlines management, logging, and alerting across the network. The unit’s 1.8-meter cord accommodates diverse rack layouts, and its 0U form factor keeps precious rack space available for equipment. Designed to withstand the rigors of continuous operation, this PDU is TAA compliant and ready to deploy in both IT and industrial environments, delivering both power and precision to protect valuable assets and maximize uptime. In short, this PDU is built for reliability, visibility, and control in environments where every watt counts and every connection matters.

• Power capacity and outlets: 10 kW of three-phase capacity distributed across 48 outlets — 42 C13 outlets for standard IT gear and 6 C19 outlets for higher-current devices, enabling flexible, scalable circuitry for servers, storage, networking gear, and peripherals.
• Remote monitoring and local visibility: Real-time remote monitoring of voltage, frequency, and load through a built-in Gigabit network connection, complemented by an LCD display for quick local readouts at the rack.
• Secure cabling and management: Includes plug-lock insert sleeves to prevent cables from being accidentally unplugged, reducing downtime and maintaining stable configurations in busy data centers and labs.
• Flexible input and rack integration: 200-240V three-phase input via L21-30P, with a 1.8-meter power cord and a 0U rack height design, enabling compact, space-efficient installations without sacrificing performance.
• Build quality and compliance: TAA-compliant construction built to endure industrial environments, delivering dependable power distribution for IT and industrial applications while meeting procurement requirements for government and enterprise facilities.

Technical Details of PDU3EVN6L2130B

• Model: PDU3EVN6L2130B
• Power rating: 10 kW (three-phase)
• Input: L21-30P, 200–240V, 3-phase, 30A
• Output: 48 outlets — 42 x C13 and 6 x C19
• Monitoring: Built-in Gigabit network connection for remote monitoring of voltage, frequency, and load; LCD for local readouts
• Interface: LX Interface for streamlined management and visibility
• Cord length: 1.8 m
• Rack compatibility: 0U footprint for space-saving deployment
• Compliance: TAA compliant
• Ideal applications: IT racks, data centers, industrial control rooms, lab environments requiring precise power distribution and monitoring

How to install PDU3EVN6L2130B

• Plan your rack layout: Verify available rack space and confirm mounting requirements for a 0U PDU, ensuring there is room for cable management and the LCD display visibility.
• Mount the PDU: Secure the unit to the rack using appropriate rails or mounting hardware supplied or recommended by the manufacturer, ensuring a stable, vibration-free installation.
• Connect the input power: With the system powered off, connect the L21-30P input plug to a compatible three-phase supply rated for 30A at 200–240V. Confirm all input connections are tight and shielded from potential interference.
• Route and secure outlets: Organize cables for devices plugged into the 42 C13 outlets and 6 C19 outlets. Use the plug-lock sleeves to secure critical power cords and prevent unintentional disconnections.
• Configure monitoring and network: Connect the PDU’s Gigabit Ethernet port to your management network. Access the LCD and the LX Interface to configure monitoring thresholds, alerts, and data logging for voltage, frequency, and load.
• Power on and verify: Apply power and check the LCD readouts for immediate indicators of voltage, frequency, and load. Validate that remote monitoring is reporting correctly by querying the PDU from your network management system.
• Perform a startup test: Power a representative mix of devices to ensure that C13 and C19 outlets distribute power evenly and that monitoring alerts trigger as expected under load.
• Documentation and maintenance: Record PDU serial numbers, model, and network address in your asset management system. Schedule regular checks for firmware updates, cable integrity, and alert configuration to maintain peak reliability.

Frequently asked questions

• Q: What kind of environments is this PDU best suited for? A: It excels in data centers, server rooms, and industrial IT spaces where 3-phase power distribution, remote monitoring, and high outlet density are essential for uptime and performance.
• Q: How does remote monitoring work? A: The PDU includes a built-in Gigabit network connection and LX Interface, allowing real-time visibility of voltage, frequency, and load from your network management tools, while the LCD provides local readouts on-site.
• Q: How many outlets are supported and what outlet types are available? A: The unit provides 48 outlets in total—42 C13 outlets and 6 C19 outlets—giving you versatility for a wide range of devices from servers and switches to storage arrays and power-hungry appliances.
• Q: What is the input configuration? A: The PDU uses a L21-30P input for 200–240V three-phase power at up to 30A, making it suitable for most data center and industrial electrical systems.
• Q: Is the PDU compliant with procurement requirements? A: Yes, it is TAA compliant, ensuring it meets procurement standards for government and many enterprise projects.
• Q: How should I secure cables to prevent accidental disconnections? A: The PDU includes plug-lock insert sleeves designed to secure high-priority power cords, reducing the risk of accidental unplugging during maintenance or busy operation periods.
• Q: Can I manage this PDU remotely with common networks? A: Yes. The Gigabit network interface supports standard management workflows via compatible network management systems, SNMP, and vendor-provided tools, enabling centralized power monitoring and alerting.
