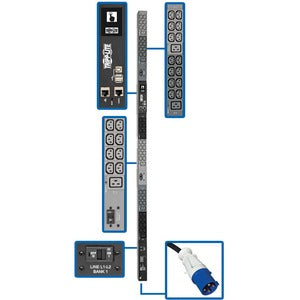

Tripp Lite by Eaton LX Interface 14.5kW 3-Phase Monitored PDU with 48 Outlets

Harness precise power control for demanding IT and industrial environments with the Tripp Lite by Eaton LX Interface Monitored PDU. Delivering up to 14.5 kW of reliable 3‑phase power at 200–240V, this 0U, high-density PDU is designed to safeguard critical equipment from power anomalies while providing real-time visibility and control. Built for data centers, enterprise IT rooms, labs, and industrial applications, it combines robust electrical specifications with an intuitive LCD interface and a Gigabit network port for seamless remote monitoring. With 48 outlets (42 C13 and 6 C19) and plug-lock sleeves to secure connections, this unit prioritizes uptime, efficiency, and cable management in challenging environments. Whether you’re deploying a new rack, upgrading your existing power distribution, or implementing a monitored power strategy, this PDU helps you optimize load balancing, protect devices from outages, and simplify compliance with industry standards.

• Real-time remote monitoring of voltage, frequency, and load levels via built-in network connectivity. The PDU continually streams data to your management console or cloud portal, empowering IT teams to detect developing issues before they impact uptime and to make data-driven decisions about cooling, capacity planning, and rack hygiene. With Gigabit networking, you gain fast, reliable access to sensor data, alerts, and historical trends for fast diagnostics and proactive maintenance.
• High-density power distribution with 48 outlets (42 C13 and 6 C19) designed for flexible rack deployments. The included plug-lock insert sleeves secure cables, reducing accidental disconnections and maintaining stable power delivery to critical servers, storage, and networking equipment. This configuration supports a mixed workload environment, enabling you to assign power across heterogeneous devices while maintaining clean cable management in tight spaces.
• Robust electrical and physical design tailored for IT and industrial use. The PDU accepts 200–240V in a 3‑phase arrangement and features an IEC-309 60A blue input for a secure, industrial-grade connection. Its 0U footprint saves rack space while delivering full power distribution, and the 1.8 m cord provides flexible placement within the rack or adjacent power distribution area. The LCD on the unit offers immediate local visibility, and the unit’s durable construction is built to withstand demanding environments where uptime is non-negotiable.
• Comprehensive visibility with an LCD display and TAA compliance. Local monitoring is available at a glance on the LCD, enabling quick checks of voltage, current, and load distribution without relying solely on remote access. The PDU’s TAA (Trade Agreements Act) compliance makes it a practical choice for government procurement and other regulated environments, ensuring compatibility with a broad range of sourcing requirements while maintaining high performance and reliability.
• Easy installation and versatile deployment. The PDU’s 0U mounting footprint, 1.8 m power cord, and modular outlet arrangement make it suitable for a variety of rack configurations and room layouts. Its monolithic power distribution capability is complemented by the LX Interface for expanded management options, allowing you to orchestrate power across multiple PDUs, set thresholds, generate alerts, and integrate with existing monitoring frameworks for a cohesive data center operations strategy.

Technical Details of Tripp Lite by Eaton LX Interface PDU

• Model: PDU3EVN6G60B
• Power capacity: 14.5 kW
• Voltage: 200–240V
• Phase: 3-Phase
• Input connector: IEC-309 60A blue plug
• Outlets: 48 total (42 x C13 outlets, 6 x C19 outlets)
• Monitoring: Real-time remote monitoring of voltage, frequency, and load levels via built-in network connection
• Network interface: Gigabit Ethernet for fast data transmission and reliable remote management
• Display: LCD for local monitoring and quick reference
• Cord length: 1.8 meters
• Mounting: 0U footprint suitable for rack installations
• Height/footprint: 0U physical footprint with a compact, space-saving design
• Compliance: TAA-compliant for procurement in government and regulated environments
• Security features: Plug-lock insert sleeves to prevent accidental disconnections and protect critical connections

How to install Tripp Lite by Eaton LX Interface PDU

• Plan your rack layout and power topology. Verify that your rack supports a 0U PDU and that the available space accommodates the 1.8 m input cord and outlet reach. Confirm that your electrical system provides 200–240V 3-phase service compatible with the IEC-309 60A input.
• Mount the PDU in the rack. Because this model uses a 0U footprint, slide the PDU into the appropriate rack bay and secure it with mounting hardware. Ensure it is firmly seated and that the outlets face the desired direction for cable management and accessibility.
• Connect the main input power. Use the IEC-309 60A blue input connector to attach the PDU to the building power source or distribution panel. Route cables through the plug-lock sleeves to minimize movement and to maintain a tidy, secure setup that reduces the risk of disconnections.
• Attach devices and organize outlets. Distribute servers, storage, and networking gear across the 42 C13 and 6 C19 outlets to balance load. Avoid overloading any single outlet bank and monitor total load via the LCD or the remote monitoring portal to maintain safe operating thresholds.
• Configure monitoring and alerts. Connect the PDU to your network using the Gigabit Ethernet port. Configure IP addressing, access credentials, and alert thresholds according to your facility's monitoring policies. Use the LCD for quick on-site checks, and rely on real-time remote data to track voltage stability, frequency, and current draw across the rack.

Frequently asked questions

• Q: What is the total power capacity of this PDU?

  A: The PDU supports up to 14.5 kW, making it suitable for densely populated racks housing power-hungry servers, storage appliances, and networking gear. This capacity helps ensure stable operation during peak demand and provides headroom for future growth.

• Q: How many outlets does it have and what types are they?

  A: It provides 48 outlets in total: 42 C13 outlets for standard IT equipment and 6 C19 outlets for higher‑draw devices. The mix supports a wide range of devices within a single PDU footprint, simplifying cable management and power planning.

• Q: What kind of input power does this PDU require?

  A: It uses an IEC-309 60A blue input plug designed for robust, industrial-grade connections at 200–240V in a 3-phase configuration. This input is intended to deliver consistent power to all connected outlets while supporting high load with minimal voltage drop.

• Q: Does it offer remote monitoring and how is data accessed?

  A: Yes. The PDU includes a built-in network connection that provides real-time remote monitoring of voltage, frequency, and load. Data can be accessed via the Gigabit Ethernet port, enabling integration with existing DCIM or monitoring platforms, and enabling alerts and historical trend analysis.

• Q: Is this PDU suitable for government procurement?

  A: Yes. The unit is TAA-compliant, which makes it compatible with procurement requirements for government and related projects, in addition to presenting a robust, enterprise-grade solution for commercial facilities.

• Q: What installation considerations should I keep in mind?

  A: Plan for proper cable management using the plug-lock sleeves to prevent cable movement, ensure load distribution across outlets to avoid bottlenecks, and configure alert thresholds to detect anomalies early. Regularly monitor via the LCD on-site and through the remote portal to maintain optimal performance and uptime.
