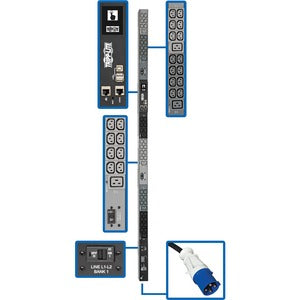

Tripp Lite by Eaton 14.5kW 3-Phase Monitored PDU

The Tripp Lite-by-Eaton 14.5kW 200–240V 3PH Monitored PDU delivers enterprise-class power distribution with intelligent, real-time remote monitoring. Designed for data centers, industrial floors, and demanding IT environments, this PDU provides visibility into voltage, frequency, and load levels across a 3‑phase feed. Built to help you optimize power usage, prevent outages, and streamline maintenance, it combines robust electrical performance with advanced remote management features that keep critical systems running smoothly.

• Real-time remote monitoring: Built-in network connectivity enables continuous tracking of voltage, frequency, and load, so you can detect anomalies before they impact services.
• High-capacity 3-phase power: 14.5 kW of load capacity at 200–240V across a 3-phase supply, ideal for dense IT racks and industrial equipment.
• Guaranteed uptime with local visibility: An LCD display presents essential metrics at a glance, while Gigabit network access supports advanced alerting and integration with your monitoring stack.
• Extensive outlet count and durable construction: 48 outlets distribute power efficiently to server, networking, and storage devices in modern racks, with rugged construction to withstand demanding environments.
• Flexible installation and reliable input: IEC 309 60A blue input plug, 3 m cord, and a 0U footprint with a vertical, compact form factor designed for versatile deployment in racks or floor installations.

Technical Details of Tripp Lite by Eaton 14.5kW 200-240V 3PH Monitored PDU

• Model: PDU3EVN10G60B
• Power rating: 14.5 kW
• Voltage range: 200–240 V
• Phase: 3-phase
• Monitoring: Monitored with built-in network connection and LCD for local viewing
• Interface: LX Interface with Gigabit Ethernet
• Outlets: 48 distribution outlets
• Input connector: IEC 309, 60A blue input plug
• Cord length: 3 meters
• Footprint: 0U; designed for rack or stand-alone vertical mounting
• Height: 1.8 meters tall
• Compliance: TAA-compliant
• Local display: LCD panel for direct status and measurements
• Applications: Ideal for IT infrastructure, data centers, telecom rooms, and industrial equipment requiring monitored power distribution

how to install Tripp Lite by Eaton 14.5kW 3-Phase Monitored PDU

• Plan the circuit and outlet layout: Verify your 3-phase 200–240V supply and ensure a dedicated 60A circuit is available for the IEC 309 input. Map the 48 outlets to your critical devices to optimize load balance.
• Mount the PDU securely: Install the 0U unit in a compatible rack space or place it in a vertical stand-ready location. Ensure adequate clearance for the LCD display and cable management. Route the 3 m power cord so it won’t create a trip hazard or obstruct airflow.
• Connect power and network: Plug the IEC 309 60A input to the dedicated circuit and connect the PDU’s Gigabit Ethernet/LX interface to your network. Secure network connectivity to enable remote monitoring and alerting.
• Configure the LX interface: Access the PDU’s management interface via the local LCD or the connected network. Set voltage thresholds, alert options (email or SNMP), and user access controls according to your IT policy.
• Validate operation and map alerts: Power on the equipment, verify that all outlets are delivering power, and confirm that real-time values (voltage, frequency, load) display accurately on the LCD and through the network interface. Test alert delivery to ensure you receive notifications when limits are exceeded.

Frequently asked questions

• What does “Monitored PDU” mean? A monitored PDU provides real-time measurements of critical electrical parameters (voltage, frequency, load) and can relay this information to a remote monitoring system via a network interface for proactive management and alerting.
• How many outlets does this PDU provide? It features 48 outlets to distribute power to servers, switches, storage devices, and other critical equipment within your rack or facility.
• What kind of network access is available? The PDU includes LX interface with a Gigabit Ethernet port for high-speed remote monitoring, data collection, and integration with existing management platforms.
• What is the input specification? It uses an IEC 309 60A blue input plug designed for robust, high-current connection to a dedicated 60A circuit in your facility.
• Is this PDU suitable for data centers and industrial environments? Yes. Its 14.5 kW capacity, 3-phase configuration, real-time monitoring, and durable construction make it appropriate for IT data centers and demanding industrial applications requiring reliable power distribution.
• What is the mounting option? The unit offers a 0U footprint for rack installations or vertical mounting in compatible configurations, with a height of about 1.8 meters to suit tall ceiling and rack configurations.
