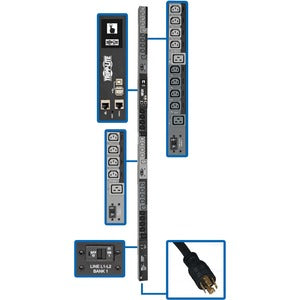

Tripp Lite by Eaton 14.5kW 3-Phase Monitored PDU with LX Interface

Power reliability meets intelligent visibility with the Tripp Lite by Eaton 14.5kW 3-Phase Monitored Per-Outlet PDU. Designed for data centers, computer rooms, and high-density network closets, this advanced PDU not only distributes power but also delivers real‑time insight into voltage, current, and load at every outlet. With its LX interface and Gigabit network connectivity, facilities teams can monitor and manage power across the entire rack footprint from a single management plane, enabling proactive maintenance, capacity planning, and faster mean time to repair.

• High-capacity 14.5 kW distributed power for demanding workloads, compatible with 200-240 V three-phase systems and a 50 A CS8365C input connector to support scalable infrastructure.
• 30 outlets in a compact 0U form factor: 24 C13 receptacles and 6 C19 receptacles, providing flexible support for servers, switches, storage, and other critical equipment with per-outlet monitoring for precise balancing of load.
• Monitored per-outlet design with LX interface and Gigabit Ethernet for secure, remote visibility into voltage, current, power, energy usage, and outlet-level events—ideal for automated capacity planning and proactive alerts.
• Onboard LCD display for quick local readouts, plus a long 1.8 m cord for flexible placement within the rack or at the rear of the cabinet; engineered for easy integration into tight, high-density environments.
• TA A-compliant, data center grade reliability with robust remote management capabilities, helping you optimize uptime, reduce risk, and implement energy-efficient power distribution across critical IT gear.

Technical Details of Tripp Lite by Eaton 14.5kW 200-240V 3PH Monitored Per-Outlet PDU

• Model: PDU3EVNR6H50 (Monitored Per-Outlet PDU with LX interface)
• Input: 50 A, 200-240 V, 3-phase
• Outlets: 30 total (24 x C13, 6 x C19)
• Network Interface: Built-in LX interface with Gigabit Ethernet for remote monitoring and control
• Monitoring: Outlet-level metering with real-time voltage, current, and power data; supports alerting and event logging
• Local Readout: LCD display for on-site status and quick reference
• Cord Length: 1.8 m
• Mounting: 0U rack-mount form factor for space‑efficient deployment
• Compliance: TAA-compliant

How to Install Tripp Lite by Eaton 14.5kW 3PH Monitored Per-Outlet PDU

• Prepare the rack space: clear the rear area for cable management and verify adequate ventilation to prevent heat buildup around outlets and the LCD module.
• Mount the PDU: install in a 0U footprint using the supplied mounting hardware; confirm secure attachment and alignment with adjacent equipment to minimize cabling strain.
• Connect the input power: attach a suitable 50 A, 200-240 V three‑phase supply cable to the CS8365C input connector; follow all appropriate electrical safety practices and local codes.
• Populate outlets: connect IT devices to the 30 outlets (24 C13, 6 C19) with attention to outlet loading; distribute power evenly to avoid hotspots and maintain airflow within the rack.
• Configure the network interface: connect the PDU’s LX Ethernet port to your management network; set a static IP (or enable DHCP as required) and configure SNMP, traps, and alerting thresholds in your network management system.
• Enable local monitoring: use the LCD to verify basic measurements (voltage, current, load) and cross-check that outlet-level data is flowing to the centralized monitoring platform.
• Set up alerts and policies: define voltage, current, and power thresholds, email notifications, or SNMP traps to ensure proactive notifications when limits are approached or exceeded.
• Test and document: perform a controlled load test to validate outlet monitoring accuracy, alert behavior, and reporting fidelity; document the configuration for future audits and maintenance.

Frequently asked questions

• What outlets are provided on this PDU?

  This PDU includes 30 outlets in total: 24 C13 sockets and 6 C19 sockets, enabling versatile connection for a range of IT equipment while enabling per-outlet monitoring for precise load management.

• What network features does the LX interface offer?

  The LX interface provides secure remote monitoring and control over a Gigabit Ethernet connection. It supports real-time voltage, current, power, and energy data, outlet-level alerts, and integration with standard IT management systems via SNMP and other supported protocols.

• Is this PDU suitable for data centers and high-density racks?

  Yes. Its 14.5 kW capacity, 0U form factor, and per-outlet monitoring are designed for data centers, enterprise server rooms, and other high-density environments where visibility and reliability are critical.

• What does “monitored per-outlet” mean for operations?

  Per-outlet monitoring provides granular visibility into the load on every connected device, enabling precise balancing, alerting on abnormal draw, and improved capacity planning to prevent overloads and outages.

• What maintenance and compliance features are included?

  The device is TAA-compliant for government and contracting requirements, and its network management features support ongoing monitoring, reporting, and preventive maintenance planning with minimal manual intervention.
