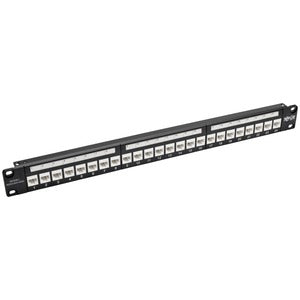

Tripp Lite by Eaton 24-Port 1U Cat6a Feedthrough Patch Panel with 90-Degree Down-Angled Ports

The N254-024-6AD 24-Port 1U Rack-Mount Cat6a Feedthrough Patch Panel delivers high-performance networking in a compact, space-saving form. Engineered to meet or exceed Cat6a specifications, this patch panel is designed for busy data centers, server rooms, and enterprise networks where reliability and organized cabling matter. With 24 RJ45 ports that point downward at a 90-degree angle, it simplifies cable routing in tight racks and behind equipment, letting you maximize port density without sacrificing airflow or accessibility. Built to support modern Ethernet deployments while maintaining full compatibility with established wiring schemes, this patch panel is the smart choice for professionals who value speed, organization, and future-proof networking.

• High-density 24-port Cat6a performance supports 10 Gigabit Ethernet over copper, delivering fast, reliable data transmission across all ports while preserving channel integrity and minimal crosstalk in crowded racks.
• 90-degree down-angled RJ45 ports point downward at a precise 90-degree angle, enabling cleaner cable management, easier terminations, and improved accessibility in confined spaces inside 19-inch racks.
• Feedthrough design with easy terminations simplifies cable routing by providing a straightforward path for punched-down terminations on both sides, reducing complexity and enhancing organization for large-scale installations.
• Versatile wiring compatibility supports USOC, T568A, and T568B standards, giving technicians the flexibility to align with existing infrastructure and project requirements without reworking existing cabling.
• 1U rack-mount footprint and TAA compliance offers space-saving installation in standard 19-inch racks and is suitable for government procurement, education facilities, and commercial data centers that require compliant components.

Technical Details of Tripp Lite by Eaton 24-Port 1U Cat6a Feedthrough Patch Panel

• 24 RJ45 ports for high-density connectivity
• 1U rack height for space-efficient mounting
• Cat6a-compliant performance for up to 10 Gbps Ethernet
• Feedthrough patch panel design to simplify terminations and cable routing
• Downward-angled 90-degree ports to improve cable management in tight spaces
• RJ45 connectors designed for reliable, durable use in enterprise environments
• USOC, T568A, and T568B wiring compatibility to match varied installation standards
• TAA-compliant for government and commercial procurement
• Standard 19-inch mounting width to fit common server racks

How to install Tripp Lite by Eaton 24-Port Cat6a Feedthrough Patch Panel

• Plan your cable routes in advance. Identify trunk lines, patch cables, and labeling strategy to ensure a clean, scalable network layout before mounting the panel.
• Mount the patch panel in a standard 19-inch rack using the appropriate screws or mounting ears. Position it at a convenient height for access and future expansion.
• Secure the patch panel in place and confirm level alignment. Ensure there is ample space behind the panel for cable routing and airflow.
• Terminate cables on both sides according to the chosen standard (USOC, T568A, or T568B). Use proper tool sets for consistent terminations and maintain uniform twist lengths to preserve signal integrity.
• Route cables through the downward-angled ports, labeling every port and cable. Use cable ties or Velcro straps to organize slack and minimize strain on connectors.
• Test each link with a network tester to verify correct termination, wire map, and performance. Address any miswiring or crosstalk issues promptly for optimal network reliability.

Frequently asked questions

• Q: What is the primary benefit of a feedthrough patch panel?
  A: A feedthrough patch panel provides a clean, centralized point for terminating cables on both sides, simplifying large installations and making cable management more straightforward in dense racks.
• Q: Is this patch panel suitable for 10G networks?
  A: Yes. The Cat6a specification supports up to 10 Gbps Ethernet, enabling high-speed connectivity across all ports when paired with compatible cabling and hardware.
• Q: Which wiring standards are supported?
  A: The panel supports USOC, T568A, and T568B standards, giving you flexibility to match your existing infrastructure or project requirements.
• Q: Is the panel compliant with procurement requirements?
  A: The patch panel is TAA-compliant, making it suitable for government and commercial procurement where traceability and compliance matter.
• Q: How much rack space does it occupy?
  A: It occupies 1U of vertical rack space in a standard 19-inch rack, making it ideal for high-density deployments in space-constrained environments.
