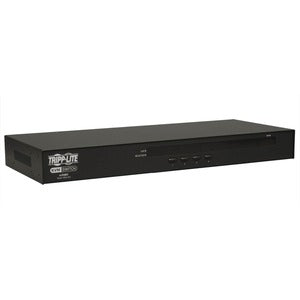

Tripp Lite by Eaton 4-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

Effortlessly manage multiple servers from a single console with the Tripp Lite by Eaton 4-Port 1U Rack-Mount USB/PS2 KVM Switch. This enterprise-class KVM switch blends flexible connectivity, convenient on-screen configuration, and a compact 1U rack-mount form factor to streamline data-center operations, server rooms, and growing IT environments. Whether you’re standardizing your data center, consolidating IT assets, or provisioning a hybrid infrastructure, this switch delivers reliable performance, versatile computer compatibility, and intuitive control through an integrated On-Screen Display (OSD).

• 4-Port 1U Rack-Mount KVM: Easily control up to four servers, workstations, or KVM-enabled devices from one console, freeing up desk space and reducing clutter in busy IT environments.
• USB and PS/2 Keyboard/Mouse Support: Switch between computers that use USB or PS/2 input devices, ensuring compatibility with a wide range of servers and peripherals without needing adapters.
• On-Screen Display (OSD) and Hot-Key Switching: Intuitive OSD menus let you label ports, configure settings, and switch between connected computers quickly using keyboard shortcuts for streamlined workflow.
• Flexible Cabling with P780-Series Kits: The P780-Series USB/PS2 combo KVM cable kits enable simple, direct connections to USB or PS/2 computers, accelerating setup and deployment across mixed environments.
• Enterprise-Grade Reliability: Built to handle demanding workloads with robust rail mounting and efficient signal switching, designed to improve uptime and reduce administrative overhead in data centers and IT rooms.

Technical Details of Tripp Lite by Eaton 4-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

• Port Count: 4
• Form Factor: 1U rack-mountable chassis for space-efficient installation
• Keyboard/Mouse Interfaces Supported: USB and PS/2 (keyboard and mouse)
• Video/Video Interface: VGA-compatible video connections (note: monitor resolution depends on connected servers and cables)
• User Interface: On-Screen Display (OSD) for port labeling and configuration
• Switching Method: HOTKEY support and OSD-based switching for fast, hands-free operation
• Cable Compatibility: Supports P780-Series USB/PS2 combo KVM cable kits for flexible integration with USB and PS/2 computers
• Rack Rails: Integrated mounting rails or optional rack accessories compatible with standard 19-inch racks
• Power: External power requirement (typical for KVM switches of this class)

How to Install Tripp Lite by Eaton 4-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

• Prepare the rack: Ensure your rack is clean, powered down, and has a stable surface for mounting the 1U KVM switch.
• Mount the device: Slide the KVM switch into a 1U rack space and secure it with the appropriate screws to ensure a secure, vibration-free installation.
• Prepare your computers: Gather up to four servers or workstations that will be connected to the KVM switch. Confirm whether each unit uses USB or PS/2 peripherals for keyboards and mice.
• Connect the cables: Use the P780-Series USB/PS2 combo KVM cable kits to connect each computer to its corresponding port on the switch. Attach the USB or PS/2 connectors as appropriate to both the computer and the KVM switch.
• Attach peripherals to the console: Connect a keyboard and mouse to the KVM console ports, and connect a monitor to the video output on the KVM switch. Ensure all connections are snug and secure.
• Power on and configure: Power up the connected computers and the KVM switch. Use the On-Screen Display to label each port for easy identification and to configure any preferred switching options or hotkeys for rapid access to each server.
• Test the setup: Verify that each computer boots correctly and that the keyboard, mouse, and video signal switch seamlessly through the KVM switch. Make any needed adjustments in the OSD to optimize performance and labeling.

Frequently asked questions

• Q: How many computers can this KVM switch control? A: It supports up to four computers, providing centralized control for multiple servers from a single console.
• Q: What types of keyboards and mice are supported? A: The switch supports both USB and PS/2 keyboards and mice, enabling flexible integration with mixed-era hardware and different server configurations.
• Q: Does the unit require drivers? A: No drivers are typically required. It operates with standard USB or PS/2 devices and basic video connections, simplifying deployment across diverse environments.
• Q: Is the device rack-mountable? A: Yes, the unit is designed for 1U rack-mount installations, making it ideal for data centers, server rooms, and network closets.
• Q: Are KVM cables included with the switch? A: This model uses P780-Series USB/PS2 combo KVM cable kits for connections. Depending on the specific model configuration, cables may be included or sold separately.
