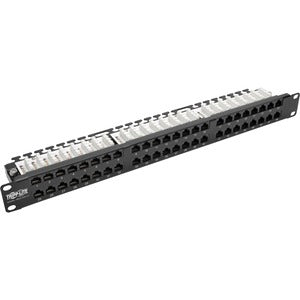

Tripp Lite by Eaton 48-Port 1U High-Density Patch Panel

The N052-048-1U 48-Port 1U Rack-Mount High-Density 110-Type Patch Panel is engineered to maximize your rack space without sacrificing performance. Condensing 48 ports into a single 1U chassis, this high-density patch panel delivers clean, organized copper connectivity for Cat5/5e networks with 568B termination. Built for durability and designed to simplify cable management in busy data centers, telecom rooms, and network closets, it’s a reliable backbone for enterprise-grade Ethernet deployments in a standard EIA 19-inch rack.

• Ultra high-density design: 48 ports in just 1U of rack space frees up valuable real estate in crowded racks, letting you scale your network without expanding your footprint. Perfect for data centers, server rooms, and large office deployments that demand efficient cable management and straightforward administration.
• 110-type termination with 568B standard: RJ45 Ethernet connectivity using 110-type termination blocks aligned to the 568B standard ensures consistent, reliable terminations for Cat5/5e cables and simplifies cross-reference with your existing networks.
• Rugged, professional build: Crafted from heavy-duty 14-gauge cold-rolled steel, this patch panel is built to withstand the rigors of heavy-use environments, rack vibrations, and repeated patching and re-patching over its long service life.
• Integrated cable-management loom: A built-in loom helps guide, organize, and secure cables as they enter and exit each port, reducing tangles and improving airflow, cooling efficiency, and accessibility for daily maintenance.
• Rack-ready, standards-compliant design: engineered for seamless installation in 19-inch EIA racks, compatible with common mounting depths, MERV stringency, and labeling practices—tailored for IT professionals who demand tidy, scalable cabling with easy future expansion.

Technical Details of Tripp Lite by Eaton 48-Port 1U Rack-Mount High-Density UTP 110-Type Patch Panel

• Port configuration: 48-port 110-type patch panel for UTP Cat5/5e cables with RJ45 terminations.
• Port spacing and layout: High-density inline arrangement optimized for dense copper cabling in a 1U chassis.
• Material: Heavy-duty 14 gauge cold-rolled steel frame designed for durability and long-term reliability in rack environments.
• Mounting: 1U, 19-inch rack compatibility to fit standard IT racks and cabinets.
• Termination: 110-Type blocks designed for Cat5/5e, compatible with 568B wiring schemes to standardize patching across the network.
• Alignment and labeling: Built to align with industry labeling practices and provide straightforward port mapping for maintenance and upgrades.
• Compliance: TAA-compliant construction for government and commercial use, ensuring procurement eligibility and traceability.
• Cable management: Integrated loom to route and secure incoming and outgoing cables, improving organization and reducing strain on connectors.
• Overall dimensions: Designed to occupy 1U of rack space within a standard 19-inch rack (exact external dimensions will align with industry 19-inch formats).

How to install Tripp Lite by Eaton 48-Port 1U Rack-Mount High-Density Patch Panel

Installing this 48-port patch panel is straightforward and designed to minimize downtime while maximizing cable organization. Follow these steps to achieve a clean, reliable, and scalable network patching solution:

• Prepare the rack and workspace: Ensure the rack rails are clean, aligned, and ready to receive a 1U panel. Confirm that ample clearance exists for cable management and future expansion. Verify that you have the proper patch cables (Cat5e or better) and labeling materials for port identification.
• Mount the panel: Secure the patch panel into the 19-inch rack frame using the supplied screws and mounting hardware. Position the panel so that port labeling is easily visible from the front for quick access during maintenance. Maintain proper airflow around the panel to support cooling within the rack.
• Prepare cables and terminations: Route Cat5e (or higher) cables to the rear of the panel. Trim cables to appropriate lengths with a clean bend radius to avoid damage. Following standard practice, terminate each conductor onto the 110-type block according to the 568B color code, ensuring each port is assigned consistently with your labeling scheme.
• Manage cables with the loom: Use the built-in cable-management loom to guide and secure cables as they enter the panel. This reduces cable clutter, improves airflow, and makes it easier to identify cables during troubleshooting or upgrades.
• Label and test: Label ports 1–48 on the panel and in your network management system. Perform end-to-end testing using appropriate test equipment or network tools to verify connectivity, polarity, and throughput. Confirm that each link satisfies your performance requirements and that there are no cross-connections or miswirings.
• Plan for growth: With 48 ports available in 1U, consider future expansion by planning patching schemes that minimize re-terminations and by reserving key ports for anticipated devices like switches, servers, and storage arrays. Periodically audit the patch panel to maintain organization as your network evolves.

Frequently asked questions

• Q: What is the primary benefit of a 48-port 1U high-density patch panel? A: It maximizes rack space, reduces cable clutter, and simplifies large-scale copper patching by consolidating 48 terminations into a single 1U chassis, which is ideal for dense data centers and network closets.
• Q: What cable standards does this patch panel support? A: It is designed for Cat5/5e copper cabling with RJ45 connectors and 110-type termination blocks, following 568B wiring standards for consistent, reliable terminations.
• Q: Is this patch panel compatible with standard 19-inch racks? A: Yes. The unit is engineered for 19-inch EIA-standard racks and fits a standard 1U height, allowing for straightforward integration with other rack-mounted equipment.
• Q: What is the construction material? A: The panel is built from heavy-duty 14-gauge cold-rolled steel, providing durability suitable forHigh-traffic network environments and long service life.
• Q: Is this patch panel compliant with procurement requirements? A: It is TAA-compliant, supporting government and commercial purchasing requirements and ensuring traceability of the product.
• Q: How will I manage cables effectively? A: The integrated cable-management loom helps organize incoming and outgoing cables, reduces tangling, and improves airflow and serviceability in busy racks.
