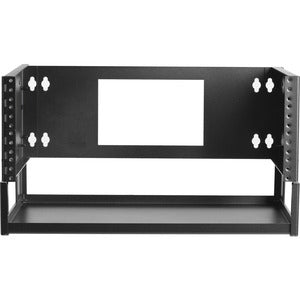

Tripp Lite by Eaton 4U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels, Hinged

The Tripp Lite by Eaton 4U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels is your ultimate solution for optimizing space in any networking environment. Perfect for home offices, small businesses, or any settings with limited real estate, this innovative and durable product allows you to efficiently organize your networking equipment without compromising functionality. Say goodbye to bulky rack cabinets and hello to an organized and accessible setup!

• Space-Saving Design: This 4U wall-mount bracket is specifically designed for areas with limited space. Its compact structure enables it to fit seamlessly within smaller rooms or closets, allowing you to make the most out of your available area without sacrificing quality or accessibility.
• Hinged for Easy Access: The cleverly designed hinge allows for unrestricted access to your equipment and cabling from either side. This feature greatly simplifies maintenance and adjustments, ensuring you can manage your network with utmost ease and efficiency.
• Robust Construction: Made from heavy-duty laser-cut 14-gauge cold-rolled steel, this wall-mount bracket is designed for durability. The black powder-coated finish not only enhances its visual appeal but also provides protection against damage, ensuring longevity and resilience in various settings.
• Streamlined Cable Management: With a rear cutout feature, you can feed your cables neatly through the wall, effectively reducing clutter. This design facilitates better organization and minimizes wear and tear on your cables, protecting your investment and ensuring a tidy environment.
• Flexible Shelf Options: The integrated shelf can be positioned at the top or bottom of the bracket, offering versatile storage for non-rack-mountable equipment like Ethernet routers, wireless access points, and tower UPS systems. This eliminates the need for additional shelf accessories, providing a comprehensive solution in one product.

Technical Details of Product

• Model: SRWO4UBRKTSHELF
• Rack Units: 4U
• Material: 14-gauge cold-rolled steel
• Finish: Black powder-coated
• Maximum Load Capacity: 150 lbs (68 kg)
• Depth: Supports equipment up to 14.75 inches deep
• Mounting Type: Wall-mount
• Keyhole Mounting Slots: 16 inches apart

How to Install

Installing the Tripp Lite by Eaton 4U Wall-Mount Bracket is a straightforward process. Follow these simple steps:

1. Locate the desired wall area for installation, ensuring that the bracket will be easily accessible.
2. Use a stud finder to locate the wall studs and mark the positions where you will mount the bracket.
3. Align the rear keyhole mounting slots of the bracket with the studs and mark the drilling points.
4. Drill the marked points carefully and attach the bracket to the wall using the provided 12-24 mounting screws.
5. Install the shelf at your preferred location (top or bottom) within the bracket.
6. Connect your networking equipment and manage cables through the rear cutout for a clean installation.

Frequently Asked Questions

• What types of equipment can I mount on this bracket?
  The Tripp Lite 4U Wall-Mount Bracket can accommodate EIA-standard 19-inch rack components such as switches and patch panels, as well as non-rack-mountable devices like routers and UPS systems.
• How much weight can the bracket support?
  The maximum load capacity of the bracket is 150 pounds (68 kilograms), allowing for the installation of multiple devices without concern for stability.
• Can I access my equipment easily after installation?
  Yes, the hinged design provides open access to your equipment from either side, making it easy to perform maintenance and adjustments as needed.
• Does the bracket require any additional accessories for non-rack components?
  No, the integrated shelf allows you to store non-rack-mountable equipment without needing separate shelf accessories.
• Is the installation process complicated?
  Not at all! The installation process is simple and can be completed with basic tools, thanks to the included mounting hardware and clear instructions provided.
