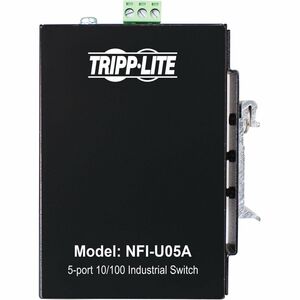

Tripp Lite by Eaton 5-Port Unmanaged Industrial Ethernet Switch — 10/100 Mbps, Ruggedized, -40°C to 75°C, EIP QoS, DIN/Wall Mount, TAA

Engineered for harsh industrial environments, the Tripp Lite by Eaton 5-Port Unmanaged Industrial Ethernet Switch is a compact, plug-and-play solution that securely connects multiple devices to your local area network. Designed to withstand demanding conditions, this rugged 5-port switch delivers reliable Ethernet performance with EIP QoS to prioritize critical traffic. Its compact form factor, rugged metal housing, and flexible mounting options make it ideal for factory floors, control rooms, telecommunications cabinets, and outdoor enclosures. With a wide operating temperature range, DIN rail and wall-mount compatibility, and TAA compliance, this switch is built to meet the needs of industrial networks that demand durability, uptime, and straightforward deployment.

• Five-port, unmanaged Ethernet switch: Connect up to five devices to a LAN with auto-negotiating 10/100 Mbps ports. The plug-and-play design eliminates the need for complex configuration, helping you deploy quickly and keep networks running smoothly.
• Rugged, industrial-grade construction: Built for harsh environments, the switch features a rugged metal enclosure that withstands vibration, dust, and temperature extremes, ensuring stable operation in manufacturing floors, remote sites, and equipment closets.
• EIP QoS for prioritized data: Enhanced Ethernet/IP Quality of Service improves efficiency and responsiveness by ensuring that time-sensitive data from critical devices is delivered where it’s needed most, reducing latency and data collisions on busy networks.
• Wide operating temperature and reliable performance: Designed to operate from -40°C to 75°C, this switch maintains consistent performance under temperature fluctuations typical of industrial settings, outdoor enclosures, and unconditioned spaces.
• Flexible mounting and TAA compliance: DIN rail and wall-mount compatibility provide flexible installation options, while TAA compliance supports procurement in government and regulated environments. The compact footprint saves cabinet space and simplifies cabling.

Technical Details of Tripp Lite by Eaton 5-Port Unmanaged Industrial Ethernet Switch

• - Port count: 5 auto-negotiating Ethernet ports supporting 10/100 Mbps for flexible, cost-effective network upgrades.
• - Data throughput: Store-and-forward switching with low latency to support time-sensitive applications and steady data delivery across devices.
• - Ethernet standard: Compliant with IEEE 802.3u for fast Ethernet connectivity and interoperability with standard Ethernet devices.
• - QoS: EIP QoS prioritizes traffic to critical devices or applications, improving performance on mixed traffic networks commonly found in industrial settings.
• - Mounting options: DIN rail clip and wall-mount compatibility enable versatile installation in panels, cabinets, or equipment enclosures.
• - Operating temperature: -40°C to 75°C operating range, enabling reliable use in frigid cold rooms and hot equipment spaces alike.
• - Certifications: Built to withstand rugged environments; designed for long-term reliability in manufacturing, automation, and process control environments.
• - Power and efficiency: Low power consumption with straightforward power connectivity for simple integration into existing power budgets.

How to install Tripp Lite by Eaton 5-Port Unmanaged Industrial Ethernet Switch

Installation is straightforward and designed to be plug-and-play, with flexible mounting to fit your enclosure or cabinet. Follow these simple steps to deploy quickly and start networking immediately:

• Choose a mounting method: Decide whether to secure the switch on a DIN rail, mount it to a wall, or place it in a dedicated equipment rack or enclosure. Use the provided mounting hardware or brackets as needed.
• Prepare the network: Identify the devices you want to connect (sensors, actuators, controllers, gateways) and determine their IP addressing scheme. Although the switch is unmanaged, a clear plan helps minimize IP conflicts and ensures smooth operation.
• Connect power: Supply the switch with the appropriate DC power source as specified by the manufacturer. Ensure the power source meets the device’s requirements and is stable for reliable operation.
• Patch Ethernet connections: Run CAT5e/CAT6 (or higher) cables from the devices to the 5 available ports. Use shielded cables in environments with high EMI to maximize signal integrity.
• Verify connectivity: Power on the switch and verify link lights on each port. Test communication by sending test packets or pinging devices to confirm that data is reaching the intended destinations.
• Document network layout: While no configuration is required for an unmanaged switch, documenting port assignments, device locations, and cable routes helps with future maintenance and troubleshooting.

Frequently asked questions

• What is the primary advantage of using a 5-port unmanaged industrial switch? It provides a straightforward, cost-effective way to extend a LAN to multiple devices in harsh environments without the complexity of managed switches. The unmanaged design reduces setup time and potential misconfigurations while still delivering reliable Ethernet connectivity and QoS for critical traffic.
• Can the switch operate in extremely cold or hot environments? Yes. The device is designed for industrial use with a wide operating temperature range of -40°C to 75°C, enabling reliable operation in freezers, outdoor enclosures, and hot production areas.
• What is EIP QoS and how does it benefit my network? EIP QoS prioritizes traffic from time-sensitive devices or applications on EtherNet/IP networks, helping ensure that critical data (like control commands or real-time monitoring) is delivered with lower latency and reduced jitter.
• Is this switch easy to install if I don’t have IT staff on site? Absolutely. The switch is unmanaged and plug-and-play, meaning you can simply connect power and Ethernet cables and begin data transmission without any configuration.
• Is the switch compatible with DIN rail and wall mounting? Yes. It is designed for both DIN rail mounting and wall-mount installations to fit a variety of enclosure layouts and installation preferences.
• Is the product compliant with government procurement standards? The switch is TAA-compliant, making it suitable for environments and projects that require compliance with Trade Agreements Act procurement guidelines.
