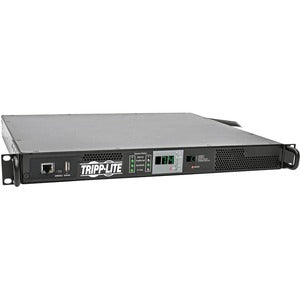

Tripp Lite by Eaton 7.7kW Single-Phase 200-240V Monitored ATS PDU

The Tripp Lite by Eaton 7.7kW Monitored Automatic Transfer Switch (ATS) PDU is engineered for resilience in data centers and server rooms where uptime and intelligent power management are critical. This 1U, 19-inch rack-mountable PDU combines robust power distribution with remote monitoring and automatic transfer switching, delivering both reliability and visibility for network devices that rely on non-redundant power supplies. With dual IEC309 blue inputs and a single IEC309 32A outlet, it provides a compact, scalable solution for efficient, monitored power in space-limited environments.

• Monitored ATS PDU for enhanced reliability: This PDU includes an Automatic Transfer Switch (ATS) that enables seamless power source failover, helping maintain uptime for critical network devices even when one supply path experiences a fault or interruption.
• Dual 32A IEC309 blue inputs and a single 32A IEC309 outlet: The distinctive blue IEC309 connectors ensure safe, code-compliant connections and clean power distribution for demanding equipment while simplifying installation in racks and cabinets.
• Remote power monitoring and telemetry: Built-in monitoring capabilities provide real-time visibility into voltage, current, and load on the PDU, enabling proactive capacity planning, fault detection, and remote management through compatible software or management consoles.
• 1U, 19-inch rack-mount design: Optimized for dense data centers and server rooms, this slim PDU fits standard 1U height in 19-inch racks, maximizing space efficiency without compromising performance or safety.
• Trusted brand with industrial-grade reliability: From Tripp Lite, a legacy of Eaton, this PDU integrates high-quality components and proven engineering to support critical IT infrastructure and service-level agreements.

Technical Details of Tripp Lite by Eaton 7.7kW Single-Phase 200-240V Monitored ATS PDU

• Model: PDUMNH32HVAT (7.7 kW class, single-phase monitorable ATS PDU).
• Power rating: Approximately 7.7 kW (calculated as 32 A at 200–240 V for a single-phase supply), suitable for supporting multiple network devices with a single, centralized PDU footprint.
• Input connections: Two IEC309 32A blue input ports, designed for robust, factory-proven connections to dual power sources or circuits for redundant or alternate-feed configurations.
• Output: 1 IEC309 32A outlet, delivering a single high-current distribution point to attached equipment in a controlled, monitored way.
• Voltage and phase: Single-phase 200–240V AC, optimized for common data-center power standards and compatible with a wide range of IT equipment.
• Form factor and mounting: 1U rack-mount height in a standard 19-inch EIA rack, ideal for compact data centers and space-constrained server rooms.
• Monitoring features: Integrated remote monitoring and telemetry for real-time load, voltage, and environmental awareness, allowing operators to track power usage and system health from a central console or compatible monitoring software.
• Automatic transfer switch (ATS): Built-in ATS provides automatic, transparent transfer between power sources to maximize uptime during a utility disturbance or source fault, minimizing device downtime.
• Connectivity and safety: Color-coded IEC309 connectors support secure, plug-and-play power distribution with protective isolation and standardized safety interfaces for high-current environments.
• Application: Designed for data centers, server rooms, and network closets where redundant or remotely monitored power is essential for continuous operation of critical devices.

how to install Tripp Lite by Eaton 7.7kW Monitored ATS PDU

Install this PDU in a standard 19-inch equipment rack or cabinet to maximize space and improve management of critical IT power. Follow these general steps to ensure a safe, effective deployment that leverages the PDU’s ATS and monitoring capabilities:

• Prepare the rack: Ensure the rack is level, secure, and rated for the anticipated load. Verify there is adequate clearance for service and ventilation around the PDU and connected devices.
• Mount the PDU: Attach the 1U PDU securely to the rack using the supplied mounting hardware. Align the unit so the IEC309 input and output ports are accessible for easy connection and maintenance.
• Connect power inputs: Attach the two IEC309 32A blue input cables to two separate power sources or circuits, as required by your redundancy strategy. Ensure each input is properly seated and tightened to prevent arcing or accidental disconnection.
• Connect devices to the outlet: Plug your network devices, switches, routers, or other critical equipment into the 1 IEC309 32A outlet. Distribute load evenly to avoid exceeding the PDU’s rating on any single outlet circuit.
• Configure monitoring and ATS: If remote monitoring is available, connect the PDU to your management network or software per the manufacturer’s guidelines. Program the ATS behavior and notification thresholds according to your data-center policies, ensuring alerting is set for overloads, source failures, or abnormal voltage levels.
• Power on and verify: Apply power to both input sources, verify the ATS operation, and confirm that the load is within the PDU’s rated capacity. Run a controlled test (if allowed) to verify automatic transfer between sources and confirm that monitoring data is being transmitted to the management system.
• Documentation and labeling: Label the PDU, input sources, and connected devices for easy identification during maintenance or upgrades. Retain the installation and configuration details for future reference and audits.

Frequently asked questions

• What is the power rating and voltage for this PDU? It is a 7.7 kW single-phase PDU designed for 200–240V operation, suitable for high-density IT environments.
• How many inputs and outputs does it have? It features two 32A IEC309 blue input connections and one 32A IEC309 outlet, providing controlled, robust power distribution with redundancy options.
• Is this PDU monitored? Yes, it is a monitored ATS PDU with remote telemetry, allowing you to track voltage, current, load, and other critical parameters in real time.
• What is the mounting format? The unit is designed for 1U height in a standard 19-inch rack, making it suitable for space-constrained data centers and server rooms.
• Can it provide automatic transfer switching? Absolutely. The built-in ATS enables automatic failover between power sources, helping maintain uptime for connected devices during source disturbances.
