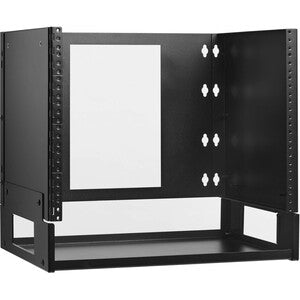

Tripp Lite by Eaton 8U Wall-Mount Bracket with Shelf for Small Switches and Patch Panels, Hinged

The Tripp Lite by Eaton 8U Wall-Mount Bracket with Shelf is an essential accessory for anyone looking to optimize their networking space. This product is designed to provide a robust and practical solution for organizing small switches and patch panels efficiently, especially in environments where space is at a premium. The compact yet durable design ensures your equipment is secure while allowing easy access for maintenance and adjustments.

• Compact Design: The 8U wall-mount bracket accommodates up to 8U of rack equipment with a depth of 14.75 inches, making it the perfect storage solution for network switches and patch panels.
• Durable Construction: Made from heavy-duty 14-gauge cold-rolled steel, the bracket features a black powder-coated finish that enhances its durability and provides resistance against wear and tear.
• Easy Installation: The installation process is simplified with included mounting hardware. The rear keyhole mounting slots are spaced 16 inches apart, aligning perfectly with standard wall-stud placements for a secure fit.
• Hinged Design: With its hinged feature, this bracket allows for unrestricted access to your equipment and cabling from either side, making maintenance and adjustments straightforward.
• Space-Saving Shelf: The included shelf can be installed at either the top or bottom of the bracket, ideal for holding non-rack-mountable items such as Ethernet routers and tower UPS systems, thus eliminating the need for extra shelf accessories.

Technical Details

• Model: SRWO8UBRKTSHELF
• Rack Units: 8U
• Maximum Load Capacity: 150 lbs (68 kg)
• Material: 14-gauge cold-rolled steel
• Finish: Black powder-coated
• Depth: Accommodates equipment up to 14.75 inches deep
• Mounting: Rear keyhole slots spaced 16 inches apart
• Warranty: 5-year limited warranty

How to Install

Installing the Tripp Lite 8U Wall-Mount Bracket is a straightforward process:

1. Locate the desired installation area on your wall, ensuring proximity to power outlets and networking connections.
2. Use a level to mark the position of the keyhole slots on the wall, ensuring the 16-inch spacing for standard wall-stud placement is maintained.
3. Drill holes into the wall where you have marked the keyhole slots.
4. Align the bracket with the drilled holes and securely attach it using the provided 12-24 mounting screws.
5. Once the bracket is secured, install your rack equipment and non-rack components onto the bracket and shelf as desired.

Frequently Asked Questions

• What types of equipment can be mounted on the Tripp Lite 8U Wall-Mount Bracket? The bracket supports standard 19-inch EIA-compliant rack equipment, including network switches and patch panels, as well as non-rack equipment like routers and UPS systems.
• How much weight can the wall-mount bracket support? The Tripp Lite 8U Wall-Mount Bracket has a maximum load capacity of 150 pounds (68 kg), which is sufficient for various types of networking equipment.
• Is the shelf adjustable? Yes, the included shelf can be mounted at either the top or bottom of the bracket, providing flexibility based on your specific storage needs.
• Can I access my equipment easily once it's mounted? Yes! The hinged design allows easy access from either side, making it convenient to maintain and adjust your equipment.
• Does the product come with a warranty? Yes, the Tripp Lite 8U Wall-Mount Bracket comes with a 5-year limited warranty, ensuring peace of mind with your purchase.
