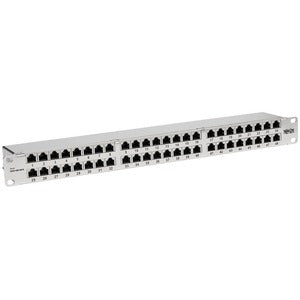

Tripp Lite by Eaton 48-Port Shielded Cat5e/Cat6 Patch Panel

Designed to meet the demands of modern, high-density networks, this Tripp Lite by Eaton 48-Port Patch Panel delivers a shielded, tidy, and scalable solution for Cat5e and Cat6 cabling. With 1U rack height and 19" compatibility, it maximizes rack space while keeping cables organized and accessible. The panel features shielded RJ45 ports and color-coded Krone IDC slots terminated with 568A/568B options, enabling fast, accurate deployments and easy future upgrades. Its shielded construction minimizes electromagnetic interference (EMI) and crosstalk, making it ideal for data centers, telco closets, and busy office networks where performance and reliability matter. TAA compliant for federal procurement, this patch panel pairs seamlessly with other components in the Tripp Lite ecosystem to create a cohesive, professional network backbone. Whether you’re upgrading an existing infrastructure or building a new one, this 48-port panel provides a durable, scalable foundation that supports robust Ethernet performance while simplifying installation and maintenance.

• High-density 48-port design in a compact 1U footprint, enabling you to maximize rack space while accommodating a large number of Cat5e/Cat6 connections with shielded RJ45 ports and color-coded Krone IDC slots for quick, error-free terminations.
• Shielded construction delivers superior EMI protection, reducing interference from nearby power cables and equipment to preserve signal integrity in dense IT environments and alongside active network gear.
• Krone IDC termination supports 568A and 568B wiring schemes, with color-coded slots that simplify wiring and post-install verification, speeding up deployments and lowering the risk of cross-wiring mistakes.
• 1U rack-mount design with standard 19-inch width ensures compatibility with most racks and enclosures, plus TAA compliance for government and business procurement needs.
• Organized cabling and future-ready flexibility: clear labeling, standardized port layout, and compatibility with Tripp Lite patch panels enable scalable, maintainable networks that evolve with technology upgrades.

Technical Details of Tripp Lite by Eaton Cat5e/Cat6 48-Port Patch Panel

• Ports: 48 shielded RJ45 ports
• Termination: Krone IDC with 568A/568B color-coding
• Shielding: Shielded (EMI protection) design
• Cable compatibility: Cat5e and Cat6
• Rack height: 1U
• Mounting: 19" rack-mount
• Compliance: TAA compliant
• Color coding: IDC slots color-coded for easy termination and labeling
• Brand: Tripp Lite by Eaton
• UPC/SKU: Not provided

How to install Tripp Lite by Eaton Cat5e/Cat6 48-Port Patch Panel

Install this patch panel quickly and securely in a standard 19" rack, ensuring you achieve clean, manageable network cabling and reliable performance. Follow these practical steps to install and configure the panel for immediate use.

• Step 1: Plan and prepare. Confirm your rack space is suitable for a 1U panel and verify that the incoming Cat5e/Cat6 cables will reach each port without excessive tension. Label cables at both ends to simplify future changes or expansions.
• Step 2: Mount the panel. Align the patch panel with the rack rails and secure it using the provided screws. Ensure the panel sits level and firmly attached to prevent movement during cable routing or maintenance.
• Step 3: Route and manage cables. Bring cables from the front or rear of the rack, depending on your cabinet design. Use cable management arms or channels to maintain clean, organized runs and minimize bending radius to protect cable integrity.
• Step 4: Terminate cables on Krone IDC slots. Use the appropriate punch-down tool to terminate wires into the color-coded Krone IDC slots, following either the 568A or 568B scheme consistently on both ends. Double-check that each conductor is fully seated and clipped into place.
• Step 5: Label, test, and tidy. Label every port with its designated network connection, then test each link with a cable tester to verify continuity and correct pair alignment. Finally, secure the cables with additional zip ties or Velcro straps and route them away from heat sources and power cables to maintain airflow and ease of future modifications.

Frequently asked questions

• Q: What is the port count of this patch panel? A: It provides 48 shielded RJ45 ports in a single 1U, 19-inch rack footprint, designed for Cat5e/Cat6 cabling.
• Q: Is this patch panel shielded? A: Yes, the panel features a shielded construction to minimize EMI and improve signal integrity in busy network environments.
• Q: Does it support 568A and 568B? A: Yes. The Krone IDC slots are color-coded for both 568A and 568B wiring schemes; choose one standard and terminate consistently on all cables.
• Q: Is the patch panel compliant with U.S. government procurement? A: It is TAA compliant, meeting Trade Agreement Act requirements for eligible government and business purchases.
• Q: What mounting is used? A: The patch panel is 1U in height and designed for standard 19-inch racks, making it compatible with most server racks and network cabinets.
• Q: Will it work with Cat5e and Cat6? A: Yes, the panel supports both Cat5e and Cat6 cabling, offering flexibility for current installations and future upgrades.
