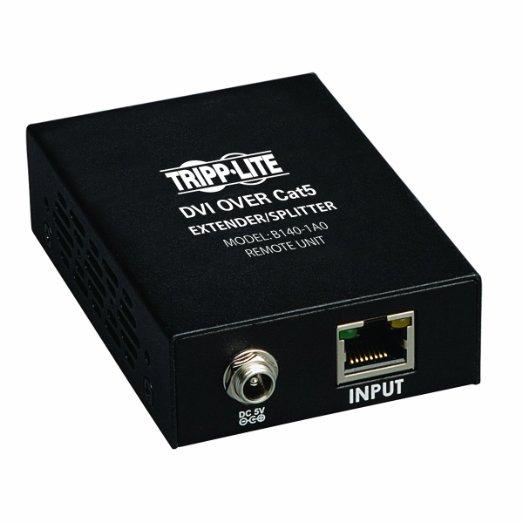

Tripp Lite by Eaton DVI over Cat5/6 Active Extender, Box-Style Remote Receiver for Video, DVI-I Single Link, Up to 200 ft. (60 m), TAA

The Tripp Lite by Eaton DVI over Cat5/6 Active Extender is a premium solution for extending DVI signals over long distances. With its innovative design and robust capabilities, this box-style remote receiver is engineered to provide high-quality video transmission, making it an ideal choice for various applications, including presentations, digital signage, and more. This device ensures that you can maintain exceptional image quality while extending your DVI-I Single Link connection up to 200 feet (60 meters) using a standard Cat5e or Cat6 cable.

• Superior Video Quality: The B140-1A0 supports DVI-D Single-Link video resolutions up to 1920 x 1080 at 60Hz, delivering crisp and clear images for your display needs.
• Extended Range: Easily extend your DVI signal up to 150 feet from the source for a 1920 x 1080 resolution or up to 200 feet for a 1024 x 768 resolution, ensuring flexibility in setup locations.
• Plug and Play Compatibility: The receiver is compatible with all operating systems and requires no software or drivers, allowing for a hassle-free setup process.
• Built-in Equalization Control: The built-in Equalization control allows users to adjust the video image, ensuring optimal quality regardless of the distance.
• Expandable System: Further expand your setup by utilizing B140-110 repeaters, allowing for up to four remote units (three repeaters and one active receiver) per channel. This means you can easily support multiple monitors across your setup.

Technical Details of the Product

• Model: B140-1A0
• Video Support: DVI-D Single-Link
• Maximum Resolution: 1920 x 1080 @ 60Hz
• Distance: Up to 150 ft. at 1920 x 1080, 200 ft. at 1024 x 768
• Compatible Cable: 24AWG Solid Wire Cat5e/6 cable (Tripp Lite’s N202-Series for optimal performance)
• Operating System Compatibility: All operating systems
• TAA Compliant: Yes

How to Install

Installing the Tripp Lite DVI over Cat5/6 Active Extender is straightforward. Follow these simple steps:

• Connect a B140-002 or B140-004 transmitter to your DVI source using a Tripp Lite P561-Series DVI cable (not included).
• Connect the B140-1A0 receiver to your display using another Tripp Lite P561-Series DVI cable (not included).
• Utilize a single Cat5e/6 cable to connect the B140-1A0 to the RJ45 port on the transmitter unit.
• If adding repeaters for extended range, connect them in series as needed, ensuring that the active receiver is the last unit in the channel.

Frequently Asked Questions

1. Can this product be used with non-Tripp Lite devices?

Yes, the B140-1A0 can be used with any DVI source, as long as it is compatible with DVI-D Single-Link signals.

2. What type of cable is recommended for optimal performance?

For best results, a 24AWG Solid Wire Cat5e or Cat6 cable, such as Tripp Lite's N202-Series, is recommended.

3. How many monitors can I connect using the B140-1A0?

You can connect up to four remote units (one active receiver and three repeaters) per channel of the B140-002 or B140-004 transmitter.

4. Is a power supply required for the B140-1A0?

No, the unit is powered through the Cat5e/6 cable, so an external power supply is not necessary.

5. What is the maximum distance I can extend the signal?

The maximum distance for a 1920 x 1080 @ 60Hz signal is up to 150 feet, and for a 1024 x 768 @ 60Hz signal, it can reach up to 200 feet.
