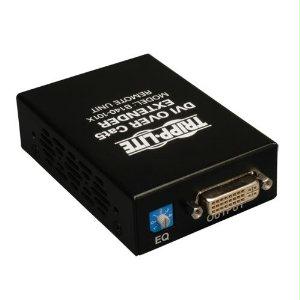

Tripp Lite by Eaton DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

The Tripp Lite by Eaton DVI over Cat5/6 Active Extender Kit is an essential tool for extending DVI video signals over long distances. This state-of-the-art box-style transmitter/receiver kit allows you to transmit DVI-D Single-Link signals up to 200 feet (60 meters) using just a single Cat5e/6 patch cable, ensuring high-quality video transmission without the need for bulky wiring setups. With its user-friendly design and robust features, this extender kit is perfect for both home and professional environments where reliable video transmission is critical.

• Long-Distance Transmission: Extend your DVI-D Single-Link signals up to an impressive 200 ft. (60 m) using a single Cat5e/6 cable, ensuring flexibility in your setup without compromising on video quality.
• High-Quality Video Resolution: Supports video resolutions up to 1920 x 1080 @ 60Hz, making it ideal for high-definition displays and ensuring crystal clear image quality.
• Easy Installation: The plug-and-play design requires no software or drivers, allowing for quick and straightforward setup across all operating systems. Simply connect the DVI source and display using the built-in connectors.
• Built-in Equalization Control: Adjust the video image easily with the integrated equalization control, ensuring that you achieve the best possible picture quality at any distance.
• Expandable Design: Enhance your setup by adding up to four remote units (three repeaters and one active receiver) in a single chain, allowing for greater flexibility and additional display options.

Technical Details of the Product:

• Model Number: B140-101X
• Signal Type: DVI-D Single-Link
• Maximum Distance: 200 ft. for 1024 x 768 @ 60Hz; 150 ft. for 1920 x 1080 @ 60Hz
• Compatible Cable: Use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series recommended)
• Compliance: TAA Compliant for GSA Schedule purchases

How to Install:

Installing the Tripp Lite DVI over Cat5/6 Active Extender Kit is a breeze. Follow these simple steps:

1. Connect the DVI connector on the transmitter unit to your DVI source device.
2. Connect the receiver unit to your display using a Tripp Lite P561-Series DVI cable (not included).
3. Using a single Cat5e/6 cable, connect the RJ45 ports on both the transmitter and receiver units.
4. Power on the devices, and your DVI signal will be extended without any complicated setup required.

Frequently Asked Questions:

• What is the maximum distance I can extend the DVI signal?
  The maximum distance is 200 ft. for a 1024 x 768 @ 60Hz signal and 150 ft. for a 1920 x 1080 @ 60Hz signal.
• Do I need any special software or drivers for installation?
  No, this extender kit is designed for plug and play use, requiring no additional software or drivers.
• Can I use this extender kit with other operating systems?
  Yes, the B140-101X is compatible with all operating systems.
• Is it possible to add more displays?
  Yes, you can expand your setup by adding up to four remote units in a single chain using additional B140-110 repeaters.
• What type of cable should I use for best performance?
  For maximum distance and resolution, we recommend using Tripp Lite's 24AWG Solid Wire Cat5e/6 cables.
