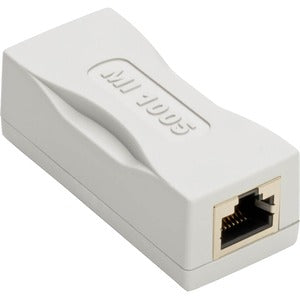

Tripp Lite by Eaton Ethernet Network Isolator N234-MI-1005 – Hospital-Grade RJ45 for Patient Care Vicinity, IEC 60601-1

Designed for the demanding environment of healthcare facilities, the Tripp Lite by Eaton Ethernet Network Isolator N234-MI-1005 provides hospital-grade protection for medical devices connected over Ethernet. This precision-engineered isolator safeguards patients, clinicians, and equipment from dangerous leakage currents that can travel through copper-based Ethernet networks. By introducing galvanic isolation between connected devices, it minimizes electrical noise, reduces the risk of cross-contamination between devices, and helps ensure uninterrupted operation of critical medical systems in patient care vicinities. Built to meet stringent hospital standards, this Ethernet isolator integrates seamlessly into existing hospital networks, delivering reliability where it matters most—at the point of care.

• Enhanced patient safety and staff protection: The N234-MI-1005 isolates medical equipment on Ethernet networks, dramatically reducing the risk of hazardous leakage currents reaching patients or clinicians. This isolation is particularly vital in sensitive environments such as operating rooms, intensive care units, and other patient care vicinities where reliable, noise-free communication is essential.
• Hospital-grade durability for demanding clinical settings: Engineered to withstand the rigors of healthcare facilities, this medical Ethernet isolator is built to endure frequent plug-and-play connections, frequent cleaning protocols, and the temperature and humidity fluctuations common in clinical rooms. Its robust enclosure and reliable RJ45 interface ensure long-term performance in busy patient care areas.
• Seamless integration with standard Ethernet infrastructure: The isolator is designed to work with conventional copper Ethernet connections, enabling IT teams and clinical engineering to deploy it without overhauling existing networks. The compact form factor fits neatly between a device and the network, preserving space and minimizing workflow disruption in patient rooms and care stations.
• Improved network reliability and signal integrity: By shielding connected devices from electrical interference and leakage currents, the N234-MI-1005 helps maintain clean, stable data transmission. This translates to fewer communication errors, more accurate sensor readings, and improved reliability of life-support, monitoring, and imaging devices that rely on Ethernet connectivity in patient care vicinities.
• Regulatory compliance and medical-grade safety: The isolator aligns with key medical safety standards, including IEC 60601-1 requirements, underscoring its suitability for hospital deployments. The device supports safe operation in medical environments where patient safety and regulatory compliance are non-negotiable, enabling healthcare providers to meet stringent governance and quality-of-care mandates.

Technical Details of N234-MI-1005

• Model: N234-MI-1005
• Product Type: Ethernet Network Isolator
• Manufacturer: Tripp Lite by Eaton
• Category: Medical/ hospital-grade Ethernet isolation
• Interface: RJ45 ethernet connectors
• Compliance: IEC 60601-1 (hospital safety standard)
• Isolation: galvanic isolation for Ethernet signal paths to protect patient and equipment
• Applications: protects medical devices and clinical networks in patient care vicinities, ICU, and other critical care areas
• Operating Conditions: designed for clinical environments with robust construction suitable for frequent connection and disconnection

how to install [product]

Step 1 – Plan placement: Identify the medical device and the network switch or hub that it connects to. Position the N234-MI-1005 between the device’s Ethernet port and the upstream network link to ensure all data traffic passes through the isolator.

Step 2 – Verify compatibility: Confirm that the device supports Ethernet connectivity over copper cabling and that the network segment is the correct path for isolation. Prepare standard category cabling (Cat 5e/6 or higher as required by your network) for reliable performance.

Step 3 – Connect the isolator: Attach the device’s RJ45 cable to the isolator’s input port, then connect the isolator’s output RJ45 port to the corresponding network device or switch. Ensure all connections are snug and properly seated to prevent intermittent link issues.

Step 4 – power considerations: The N234-MI-1005 typically derives power from the connected network equipment or may have an integrated power approach depending on the model. Follow manufacturer guidelines for any required external power or grounding connections, ensuring the unit remains properly grounded as per hospital electrical standards.

Step 5 – test and validate: After installation, verify link status on both sides of the isolator. Confirm that network activity lights indicate successful data flow and that connected medical devices report stable communication. Run a basic device test to ensure monitoring and control signals function as expected in the patient care vicinity.

Step 6 – maintenance and hygiene: Adhere to standard clinical cleaning protocols. Wipe the external surface with approved disinfectants compatible with hospital-grade equipment, taking care to avoid exposure to internal components. Routine checks should be incorporated into the clinical engineering maintenance schedule to ensure ongoing protective performance.

Step 7 – documentation and training: Update asset inventories and network diagrams to reflect the added isolation point. Provide concise training for clinical engineering and IT staff on the isolator’s purpose, placement, and basic troubleshooting to support timely incident resolution and patient safety.

Frequently asked questions

What is the purpose of an Ethernet network isolator in a hospital?
An Ethernet network isolator provides galvanic isolation between networked medical devices, reducing the risk of electrical leakage currents affecting patients or clinicians. It helps protect patient safety, improves signal integrity, and supports regulatory compliance for hospital networks in patient care vicinities.

Which environments benefit most from the N234-MI-1005?
Hospitals, clinics, operating rooms, intensive care units, and other patient care areas benefit most. Any setting with copper-based Ethernet connections in proximity to patients or sensitive medical equipment gains improved safety and reliability from isolation.

Does this device affect network performance?
When properly installed, an Ethernet isolator preserves data transmission while adding protection. It is designed to maintain compatibility with standard Ethernet protocols and speeds, minimizing latency and jitter while preventing electrical interference from compromising device performance.

Is IEC 60601-1 compliance sufficient for hospital use?
IEC 60601-1 is a core safety standard for medical electrical equipment. While it is a critical requirement, users should also consider facility-specific guidelines, local codes, and institutional IT policies. The N234-MI-1005 is designed to align with these safety expectations in patient care environments.

How does isolation protect healthcare staff and patients?
Isolation limits the pathways for hazardous currents and interference to travel between devices connected by copper Ethernet. This reduces the likelihood of electrical shock hazards, equipment malfunctions, and degraded monitoring or control signals that staff rely on for patient care.
