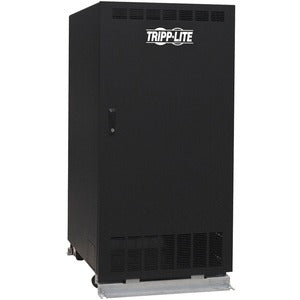

Tripp Lite BP480V200 External Battery Pack for Select Tripp Lite 3-Phase UPS Systems

The BP480V200 External Battery Pack from Tripp Lite by Eaton is engineered to deliver extended runtime for compatible 3-Phase UPS systems. Designed for mission-critical environments, this external battery solution helps safeguard sensitive equipment such as servers, storage arrays, networking gear, and industrial controls by providing additional backup power during outages and even during maintenance windows. Built to integrate with modular UPS architectures using a +/- 240VDC configuration, it offers a scalable, reliable way to expand energy reserve without replacing existing UPS hardware. With a focus on safety, reliability, and ease of installation, the BP480V200 is a smart upgrade for data centers, labs, control rooms, and enterprise IT environments seeking to maximize uptime and protect valuable assets.

• Extended runtime for modular 3-Phase UPS Systems: This external battery pack is designed to increase outage protection by delivering additional energy to compatible Tripp Lite UPS configurations, enabling longer operation during power interruptions and smoother transitions through maintenance cycles.
• Internal disconnect for battery isolation: A built-in disconnect mechanism provides safe, straightforward isolation of the battery pack from the UPS and load, simplifying serviceability and reducing downtime during maintenance or replacement scenarios.
• Special +/- 240VDC configuration for secure integration: The BP480V200 uses a specific DC configuration that aligns with select UPS modules, ensuring proper sequencing, charging, and discharge performance when connected in hardwired installations.
• Hardwire connection for dependable power transfer: The external battery pack employs a robust hardwire DC interface, delivering a secure, low-resistance path for reliable energy delivery to the UPS system and connected equipment.
• Rugged, field-friendly design for data centers and industrial settings: Built to withstand the demands of rack environments and variable operating conditions, the BP480V200 supports continuous operation and straightforward maintenance in both IT and industrial spaces.

Technical Details of BP480V200 External Battery Pack

• Model: BP480V200 External Battery Pack
• Compatibility: For select Tripp Lite by Eaton 3-Phase UPS Systems (modular series)
• Configuration: +/- 240VDC configuration to support proper battery sequencing and integration
• Isolation: Internal disconnect for safe battery isolation during service or replacement
• Connection: Hardwire DC interface designed for secure, reliable power transfer
• Runtime Extension: Adds extended backup duration when paired with compatible UPS modules
• Environment and Safety: Suitable for data centers, labs, and industrial environments with standard safety precautions

how to install Tripp Lite BP480V200 External Battery Pack

Installing the BP480V200 External Battery Pack should be performed by qualified personnel following all applicable safety procedures. Begin by power-down and isolation of the connected UPS system and confirm that all local codes and manufacturer recommendations are understood. Determine an appropriate mounting location in a rack or dedicated enclosure that allows for adequate ventilation and accessibility for service. Route and secure the external battery pack’s hardwire DC connections in accordance with the UPS documentation, ensuring the +/- 240VDC configuration is correctly aligned with the UPS’s battery sequencing and discharge paths. After completing the electrical connections, verify all terminations for tightness and correctness, restore power to the UPS, and perform a lightweight functional test to confirm that the external pack is recognized by the UPS and contributing to extended runtime during a simulated outage. Maintain a regular maintenance schedule to monitor the external battery pack’s status, temperature, and general condition as part of your data center’s preventive maintenance program.

Frequently asked questions

• What is the BP480V200 External Battery Pack used for? It extends runtime for select Tripp Lite by Eaton 3-Phase UPS Systems and provides an internal disconnect to isolate the battery during service or replacement.
• How is it connected to the UPS? Through a hardwire DC interface that supports a +/- 240VDC configuration, designed for secure and reliable energy transfer in modular UPS setups.
• Who should install this battery pack? Installation should be performed by qualified personnel with expertise in electrical safety and UPS systems, following all manufacturer guidelines and local codes.
• Is this external battery pack compatible with all UPS models? Compatibility is limited to select Tripp Lite by Eaton 3-Phase UPS Systems that support external battery packs in the specified configuration.
• What benefits does it provide in a data center? By extending backup duration, it enhances uptime, supports orderly shutdowns when necessary, and helps protect critical workloads during power events.
