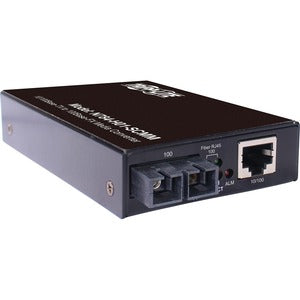

Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/SC Multimode, -10° to 60°C, 2 km (1.2 mi.), TAA

The Tripp Lite by Eaton Hardened Copper to Fiber Media Converter is your go-to solution for seamlessly extending network connections over long distances. This highly versatile media converter allows you to bridge the gap between copper Ethernet signals and fiber optic networks, making it an ideal choice for both commercial and industrial applications. With its ability to extend connections up to an impressive 2 kilometers (1.2 miles) using SC multimode fiber optic cable, this product ensures reliable data transmission while maintaining exceptional performance and durability.

• Extended Reach: Transmit your network data up to 2 km (1.2 miles) using SC multimode fiber optic cable, significantly overcoming the 100-meter limitation of copper Cat5e/6 cables.
• Auto-Negotiation: The media converter features auto-negotiation and automatic MDI/MDI-X configuration, allowing for seamless connections without the need for crossover cabling.
• Health Monitoring: Equipped with Link Fault Signaling (LFS) and Loop Back functions, users can easily monitor the health of their connection, ensuring any disruptions are promptly identified and addressed.
• Diagnostic Indicators: Easy-to-read LED indicators provide essential status information such as network speed, connection status, LFS diagnostics, and unit power, enhancing user experience and troubleshooting processes.
• Robust Construction: Built within a hardened aluminum housing, this converter operates efficiently in extreme temperatures ranging from -10 to 60 degrees Celsius, while also providing protection against ESD, RFI, and power surges.

Technical Details of Product

• Model: N784-H01-SCMM
• Data Rate: 10/100 Mbps
• Connector Type: RJ45 (copper), SC (fiber optic)
• Distance: Up to 2 km (1.2 mi.)
• Temperature Range: -10°C to 60°C (14°F to 140°F)
• Housing: Hardened aluminum
• Compliance: TAA-Compliant for GSA Schedule Purchases

How to Install

Installing the Tripp Lite by Eaton Hardened Copper to Fiber Media Converter is straightforward:

1. Mount the media converter in the desired location using the included hardware for wall or DIN mounting.
2. Connect the RJ45 port to your copper Ethernet source using a standard Cat5e/6 cable.
3. Connect the SC multimode fiber optic cable to the fiber port of the converter and route it to the destination network device.
4. Power on the device and monitor the LED indicators for status confirmation.
5. Utilize the DIP switches to configure any necessary settings for Link Fault Signaling or Loop Back functions.

Frequently Asked Questions

• What is a media converter? A media converter is a device that converts one media type to another, allowing for the interconnection of different types of network cabling, such as copper and fiber optic.
• Can this converter be used outdoors? While the hardened aluminum housing is designed to withstand various hazards, it is recommended to install the converter in a well-ventilated area protected from direct exposure to outdoor elements.
• Does this device require any specific drivers or software? No, the Tripp Lite media converter operates as a plug-and-play device, requiring no additional software or drivers to function.
• How do I know if the media converter is working properly? The converter features LED indicators that provide real-time status updates. If the LFS LED is illuminated, it indicates a disruption in the cable connection that requires attention.
• Can I use this converter with other brands of fiber optic cables? Yes, the Tripp Lite media converter is compatible with standard SC multimode fiber optic cables from various manufacturers.
