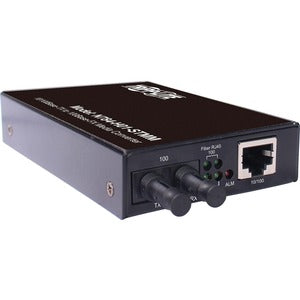

Tripp Lite by Eaton Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/ST Multimode, -10° to 60°C, 2 km (1.2 mi.), TAA

The Tripp Lite by Eaton Hardened Copper to Fiber Media Converter is an essential tool for extending network connections with efficiency and reliability. Perfectly designed for both commercial and industrial applications, this media converter transforms copper Ethernet signals into multimode fiber optic signals, allowing for distance coverage of up to 2 kilometers (1.2 miles). Whether you're setting up a new network or expanding an existing one, this media converter is your go-to solution for seamless data transfer.

• Extend Your Network Connection: The Tripp Lite media converter enables the conversion of a copper Ethernet signal to a multimode fiber optic signal, dramatically enhancing your network range up to 2 km (1.2 miles), far surpassing the typical 100-meter limitation of copper cables.
• Auto-Negotiation Technology: Equipped with auto-negotiation and automatic MDI/MDI-X configuration, this device ensures a hassle-free connection between network devices without the need for crossover cabling, making installation and setup straightforward.
• Link Fault Signaling and Loop Back Functions: Monitor your network's health with integrated Link Fault Signaling (LFS) and Local/Remote Loop Back (LLB/RLB) functions. The LFS LED indicator alerts you to any disruptions in service, while the loopback functions confirm correct installation of cables.
• Durable Protective Metal Housing: Engineered to withstand challenging environments, the hardened aluminum case operates effectively in temperatures from -10°C to 60°C (14°F to 140°F), while providing protection from electrostatic discharge (ESD), radio frequency interference (RFI), and power surges.
• TAA-Compliant: The N784-H01-STMM is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule and other federal procurement contracts, ensuring it meets necessary standards for government use.

Technical Details of the Product

• Network Type: 10/100Base-TX/FX
• Data Transfer Rate: Up to 100 Mbps
• Distance: Extends connections up to 2 km (1.2 miles)
• Connector Types: RJ45 for copper, ST for fiber optic
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Mounting Options: Wall or DIN rail mounting
• Housing: Hardened aluminum case
• Compliance: TAA-compliant

How to Install

Installing the Tripp Lite Hardened Copper to Fiber Media Converter is a straightforward process:

1. Begin by placing the converter in your desired location, either on a wall or DIN rail.
2. Connect your copper Ethernet cable (Cat5e/6) to the RJ45 port of the media converter.
3. Using multimode fiber optic cable, connect the ST fiber port to the respective network device or switch.
4. Ensure that all connections are secure. Power on the unit to initiate the installation.
5. Monitor the LED indicators to confirm a successful connection and check for any faults using the LFS and loopback functions.

Frequently Asked Questions

1. What is the maximum distance the media converter can extend a network connection?

The Tripp Lite media converter can extend network connections up to 2 kilometers (1.2 miles) using ST multimode fiber optic cable.

2. Does this device require any special cabling?

Yes, you’ll need multimode fiber optic cables for the fiber connections as well as standard copper Ethernet (Cat5e/6) cables for the RJ45 connection.

3. Can I use this media converter in outdoor settings?

This unit is designed for harsh environments but should be housed in an enclosure if exposed to direct outdoor elements.

4. How do I know if my installation is successful?

Use the LED indicators on the converter to check connection status, speed, and diagnostics. The Link Fault Signaling (LFS) will notify you of any connection issues.

5. Is the Tripp Lite Hardened Copper to Fiber Media Converter compatible with other network devices?

Yes, it is compatible with any 10/100Base-TX/FX network devices, making it flexible for various networking needs.
