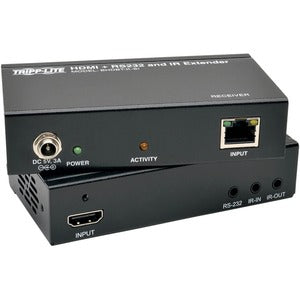

Tripp Lite by Eaton HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 230 ft. (70 m), TAA

Enhance your home theater, classroom, or corporate AV setup with the Tripp Lite by Eaton BHDBT-K-SI HDBaseT Class B extender kit. This compact, rugged solution enables seamless distribution of HDMI video and audio, RS-232 serial data, and IR remote control signals over a single Cat5e/6/6a cable. Designed for professional environments that demand reliable long-distance performance without the complexity or cost of full HDBaseT implementations, HDBaseT-Lite (Class B) delivers robust video up to 4K x 2K at 30 Hz and smooth 1080p at 60 Hz. With a reach of up to 230 feet (70 meters), the kit is ideal for conference rooms, lecture halls, digital signage, and multi-room home theaters where a clean, centralized AV distribution is essential. The TAA-compliant design ensures eligibility for procurement in a wide range of markets, making it a versatile choice for integrators and end users alike.

• Long-range, single-cable transmission: Send HDMI video and audio, RS-232 serial data, and IR remote control signals up to 230 feet (70 meters) over a single Cat5e/6/6a cable, reducing cable clutter and simplifying installation in large rooms, storefronts, or classrooms.
• HDMI over HDBaseT-Lite with broad format support: Enjoy high-quality video in formats up to 4K x 2K at 30 Hz for UHD content and smooth 1080p at 60 Hz for mainstream media, plus multi-channel audio to your display or projector for an immersive viewing experience.
• Integrated control signals: The extender kit passes through RS-232 to support device control from a centralized AV controller, and IR passthrough enables convenient remote control of displays, projectors, or streaming devices from the source location.
• Cost-conscious HDBaseT-Lite solution: Class B HDBaseT-Lite balances performance and value, delivering reliable AV distribution for residential installations and light commercial deployments without the need for a full HDBaseT feature set.
• TA A compliant and build-ready: The BHDBT-K-SI is designed to meet procurement standards for government and regulated industries, ensuring broad availability and compatibility across rooms, campuses, and meeting spaces.

Technical Details of Tripp Lite by Eaton HDBaseT Class B (HDBaseT-Lite) Extender Kit

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference.

how to install Tripp Lite by Eaton HDBaseT Class B (HDBaseT-Lite) Extender Kit

• Power down all equipment before beginning installation to prevent any electrical issues or signal anomalies.
• Connect the HDMI source device (Blu-ray player, media streamer, or computer) to the transmitter's HDMI input; connect the transmitter's HDMI output to the display side's HDMI input if you are cascading or using passthrough, otherwise connect at the receiver end as per your layout.
• Run a single Cat5e/6/6a cable from the transmitter to the receiver, ensuring a clean, protected pathway and avoiding EMI sources where possible for the best signal integrity.
• Power the transmitter and receiver units using the appropriate AC adapters (or as directed by the product manual) and verify that both units power up correctly and establish link with the connected display.
• Configure RS-232 control and IR control as needed: connect your control system to the RS-232 ports and deploy IR emitters/receivers to enable remote control across the link; test commands to confirm reliable operation at the display end.
• Power on the source and display, select the correct input, and confirm that video and audio are transmitted clearly. If necessary, adjust the display resolution to match the supported 4K/1080p formats to ensure optimal image quality.

Frequently asked questions

• What resolutions does the BHDBT-K-SI support? It supports Ultra HD up to 4K x 2K at 30 Hz and 1080p at 60 Hz, enabling a wide range of content from streaming and Blu-ray to presentations and computer sources.
• How far can I extend over Cat5e/6/6a? The extender kit provides a maximum link distance of up to 230 feet (70 meters), making it suitable for larger rooms, auditoriums, and multi-room installations.
• Which signal types are transmitted? The kit transmits HDMI video and audio, RS-232 serial data, and IR remote control signals between the transmitter and receiver.
• Is this a full HDBaseT or HDBaseT-Lite solution? This is an HDBaseT Class B (HDBaseT-Lite) extender, which offers core video, audio, and control features at a balanced price and performance point suitable for many residential and light commercial projects.
• Is the BHDBT-K-SI TPS/TAA compliant? Yes, the product is TAA compliant, making it eligible for procurement in many regulated markets.
• Do I need two power supplies? Power is typically required at both ends for reliable operation; use the appropriate adapters to power the transmitter and receiver as specified in the installation guide.
