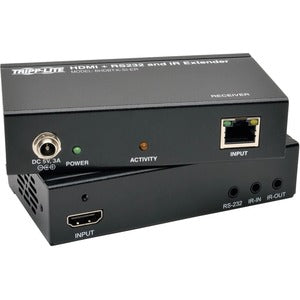

Tripp Lite by Eaton HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 1080p, Up to 500 ft. (152.4 M), TAA
Experience theater‑quality visuals and precise control across rooms with Tripp Lite’s BHDBT-K-SI-ER HDBaseT extender kit. This high‑performance system leverages HDBaseT technology to consolidate everything you need for a clean, professional AV installation over a single Cat5e/6/6a cable. By transmitting HDMI video, audio, RS‑232 serial data, and IR remote control signals up to 500 feet away, it eliminates complex multi‑cable runs and reduces clutter while maintaining pristine 1080p video at 60 Hz. With rugged construction, simple setup, and TAA compliance, this extender kit is built to adapt to corporate, educational, and home theater environments where reliability and long reach matter most.
- Long‑distance HD video over a single Cat5e/6/6a cable: up to 500 ft (152 m) while preserving 1080p @ 60 Hz clarity and sharp color accuracy.
- HDBaseT 5Play delivery: combines HDMI video and audio, RS‑232 serial data, and IR control signals in a single, standardized interface to simplify wiring and installation.
- Full remote and local control integration: bidirectional IR pass‑through and RS‑232 support allow centralized control of source devices and displays from a distance.
- Two‑unit extender kit for easy placement: compact transmitter and receiver modules designed for quick in‑wall or surface‑mount installations with minimal footprint.
- TAA compliant for government and regulated environments: reliable, law‑abiding hardware suitable for public sector deployments and enterprise installations.
Technical Details of Tripp Lite by Eaton HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control
- Model: BHDBT-K-SI-ER, a two‑piece HDBaseT extender kit consisting of a transmitter and a receiver.
- Video capability: Transmits HDMI video up to 1920 x 1080 (1080p) at 60 Hz with digital audio, ensuring crisp, cinema‑like image quality for presentations and home theaters alike.
- Distance and medium: Extends HDMI, audio, RS‑232, and IR signals over a single Cat5e/6/6a cable up to 500 ft (152 m), enabling flexible room layouts and centralized equipment racks.
- Signal combination: HDBaseT 5Play technology consolidates video, audio, control, and data signals to minimize cables and maximize installation options.
- Control options: IR remote control signals can be transmitted to or from supported devices, while RS‑232 serial interfaces enable integration with automation controllers or legacy equipment.
- Installation environment: Designed to perform in professional AV environments, with robust build quality and compatibility with standard AV gear used in classrooms, boardrooms, conference spaces, and digital signage.
- Regulatory compliance: TAA‑compliant hardware suitable for use in government and regulated procurement programs, offering confidence in sourcing and compatibility.
- Compatibility: Works with a wide range of HDMI sources and displays that support 1080p, making it suitable for legacy HD systems and modern AV ecosystems that do not require 4K at this time.
How to install Tripp Lite by Eaton HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control
- Identify the sender (transmitter) and receiver units. Connect the HDMI source device (Blu-ray player, computer, media player, or other HDMI source) to the HDMI IN port on the transmitter using a standard HDMI cable.
- Connect the display or projector to the HDMI OUT port on the receiver with a second HDMI cable. Ensure the display is powered on and set to the correct input for HDMI.
- Run a single Cat5e/6/6a patch or network cable between the transmitter's RJ45 port and the receiver's RJ45 port. This single cable will carry the HDMI signal, audio, RS‑232, and IR control data across the distance.
- Connect RS‑232 devices or automation controllers to the RS‑232 ports on the transmitter and/or receiver as supported by your installation. This enables remote control of source equipment or control systems from the receiving end or a centralized controller.
- Attach IR emitters or receivers as needed according to your specific room configuration. Use the IR control path to enable remote operation of the HDMI source or display devices from the other room or seating area.
- Apply power to the transmitter and receiver if required by your kit. Some configurations use external power adapters; consult the user manual for recommended power arrangements and safety guidelines. Ensure all equipment is powered off during the initial connections, then power on and test signal integrity.
- Power up the HDMI source and the display, then verify that the video and audio are properly transmitted over HDMI, and that RS‑232 and IR control respond as expected. If you encounter a blank screen or no audio, recheck cable connections, input/output selections, and ensure the Cat5e/6/6a cable is within the supported distance.
- Fine‑tune placement: Position the transmitter near the HDMI source and the receiver near the display. Neatly route the Cat5e/6/6a cable to prevent interference, keeping runs away from power cables and sources of EMI when possible.
Frequently asked questions
-
What video resolutions are supported by the Tripp Lite HDBaseT extender?
The BHDBT-K-SI-ER extender supports HDMI video up to 1920 x 1080 (1080p) at 60 Hz, delivering clear, high‑definition picture quality over long distances using a single Cat5e/6/6a cable.
-
How far can I extend HDMI with this kit?
Installation distance can reach up to 500 feet (152 meters) when using a single Cat5e/6/6a cable. Longer distances may require repeater setups or alternative configurations; always follow the manufacturer’s guidelines for safe operation and signal integrity.
-
What signals are transmitted over the Cat5e/6/6a cable?
The extender transmits HDMI video and audio, RS‑232 serial data, and IR remote control signals. This consolidation reduces cable clutter and simplifies installation in meetings, classrooms, and entertainment spaces.
-
Is this extender compatible with 4K displays?
The BHDBT‑K‑SI‑ER model is designed for up to 1080p at 60 Hz. If you require 4K or higher resolutions, consider a model that explicitly supports those formats and verify compatibility with your source devices and displays.
-
Is the product TAA compliant?
Yes. The BHDBT‑K‑SI‑ER extender kit is TAA compliant, making it suitable for procurement in government and regulated environments where compliance is required.
-
Do I need special software to run RS‑232 or IR control?
RS‑232 control typically interfaces with standard automation platforms or device controllers. IR control uses standard IR emitters/receivers and compatible remotes. Always refer to the user manual for wiring diagrams, compatible devices, and any software requirements for integration with your automation system.
