Tripp Lite by Eaton HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control — 4K x 2K UHD, 100 m, TAA

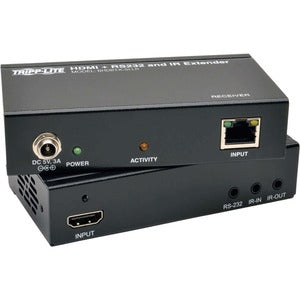

The BHDBT-K-SI-LR HDBaseT Extender Kit from Tripp Lite by Eaton delivers a robust, long-range HDMI extension solution that carries video, audio, RS-232 serial, and IR remote control signals over a single Cat5e/6/6a cable. Designed for professional AV installations, corporate boardrooms, classrooms, digital signage, and high-end home theaters, this extender kit simplifies complex cabling while preserving the integrity of your content. It combines dependable performance with easy setup, enabling you to place equipment where it makes the most sense and still control it from a convenient location.

• Extend HDMI video and audio, RS-232 serial, and IR control signals up to 328 feet (100 meters) over a single Cat5e/6/6a cable, reducing cable clutter and keeping your room clean and organized.
• Supports Ultra High Definition 4K x 2K at 24/30 Hz and Full HD 1080p at 60 Hz, ensuring sharp, vivid imagery for presentations, movies, and signage while maintaining compatibility with a wide range of source devices and displays.
• Includes RS-232 serial and IR remote control pass-through, enabling centralized room automation and remote device operation from a single interface or integrated control system.
• Professional-grade, TAA-compliant design suitable for government and commercial deployments; built for reliability in active environments with standard twisted-pair cabling and straightforward installation.
• Simple, scalable deployment with transmitter and receiver units that work with most HDMI sources and displays. A cost-effective solution that reduces the need for multiple HDMI cables and supports future-proofing for growing AV systems.

Technical Details of Tripp Lite by Eaton HDBaseT HDMI Over Cat5e/6/6a Extender Kit

• Model: BHDBT-K-SI-LR HDBaseT Extender Kit (transmitter and receiver pair)
• Maximum distance: Up to 328 feet (100 meters) over a single Cat5e/6/6a cable
• Video support: Up to 4K x 2K at 24/30 Hz and 1080p at 60 Hz
• Cable type: Cat5e/6/6a twisted-pair copper cabling
• Control signals: RS-232 serial and IR remote control pass-through
• Power requirements: External power adapters required for both transmitter and receiver units
• Compliance: TAA-compliant for procurement in government and similar regulated environments
• Package includes: Transmitter, Receiver, and necessary power accessories (as configured by the SKU)

How to install Tripp Lite HDBaseT Extender Kit

Begin by identifying the source equipment (HDMI source such as a Blu-ray player, computer, or media streamer) and the display destination (HDMI-equipped monitor or projector). Place the Transmitter near the HDMI source and the Receiver near the display. Ensure you have access to power outlets for both units.

1) Connect the HDMI output from your source device to the Transmitter’s HDMI input. This establishes the primary video path for the extension.

2) Run a single Cat5e/6/6a cable from the Transmitter to the Receiver. For best results, use high-quality twisted-pair cabling and keep runs away from potential interference sources like power cables or heavy machinery.

3) Connect the HDMI output from the Receiver to your display. Verify that the display is configured to accept the incoming HDMI signal at the correct resolution and refresh rate.

4) If you plan to use IR control or RS-232 automation, connect the IR emitters and detectors or RS-232 devices as appropriate. Consult the installation manual for connector pinouts and wiring diagrams to ensure proper operation.

5) Attach the external power adapters to both the Transmitter and Receiver units and plug them into powered outlets. Power on the source and display to confirm video and audio traversal, as well as successful RS-232 and IR control behavior if configured.

After powering up, test the setup by gradually increasing video content quality and verifying stability across the extended link. If you encounter dropouts or degraded performance, check the integrity of the Cat5e/6/6a cable, ensure it is properly terminated at both ends (matching the same T568 standard on both ends), and confirm that devices support the chosen resolution and refresh rate. Keeping the cable as direct and as short as feasible within the required distance often yields the most reliable results. For installations with multiple rooms or zones, consider segmenting runs or using additional extenders designed to interoperate within a broader AV distribution system.

Frequently asked questions

• Q: What is the maximum extension distance? A: Up to 328 feet (100 meters) over a single Cat5e/6/6a cable, depending on cable quality and environmental conditions.
• Q: Which video resolutions are supported? A: The kit supports 4K x 2K at 24/30 Hz and 1080p at 60 Hz. Actual performance depends on the source and display capabilities and the HDMI handshake between devices.
• Q: Does it transmit audio as well? A: Yes, HDMI audio is transmitted along with video over the same Cat5e/6/6a connection, ensuring synchronized audio playback on the display side.
• Q: Can I control other devices through RS-232 or IR? A: The extender kit provides RS-232 serial and IR control pass-through to enable integration with room automation systems and remote devices; configuration may vary by control platform.
• Q: Do I need special cables or power supplies beyond what’s included? A: You’ll need Cat5e/6/6a cables and external power adapters for both transmitter and receiver. PoE or power-over-HDBaseT is not assumed unless explicitly stated in a given SKU documentation.
